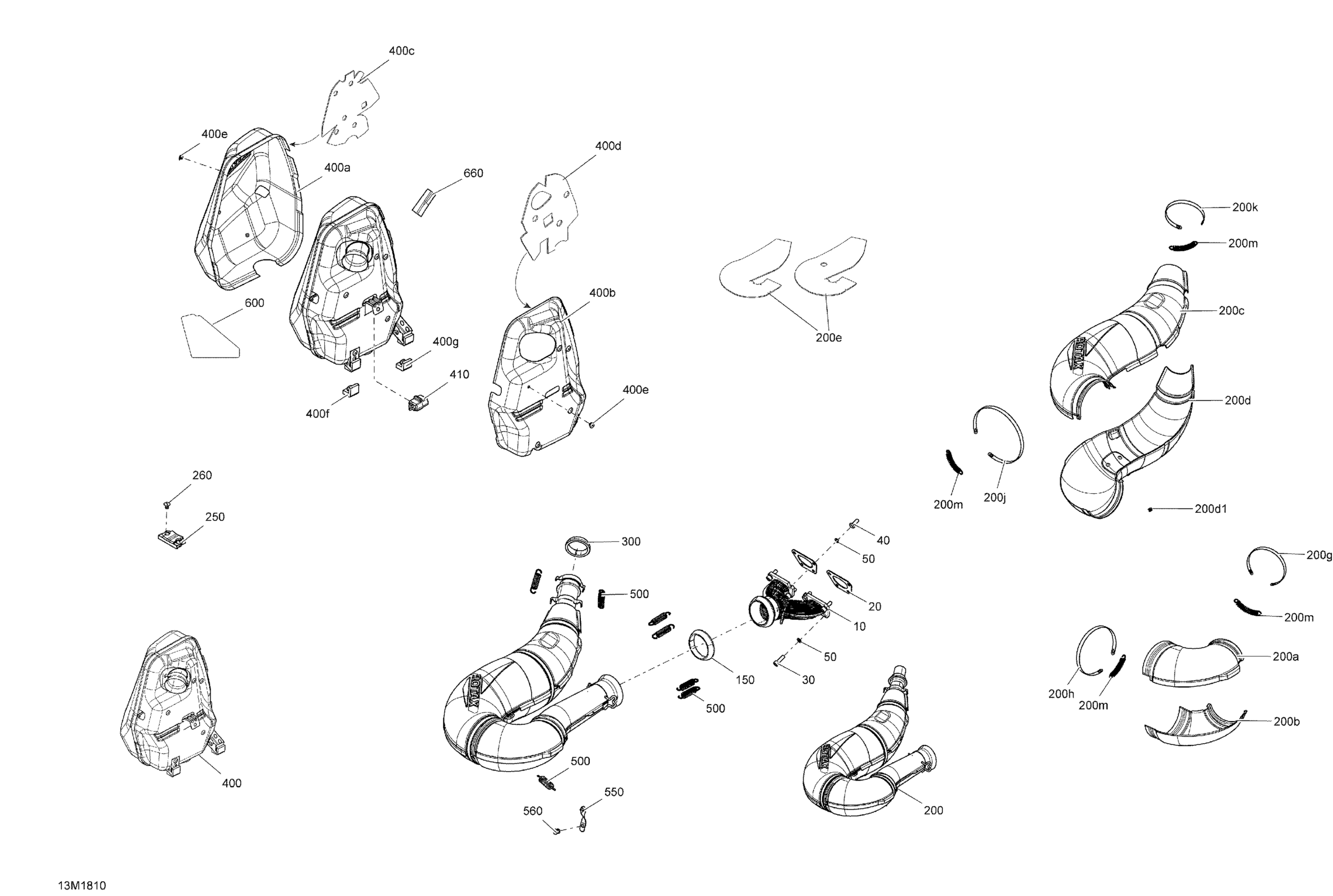

Ski-Doo MXZ 600 CARB, 2018 Exhaust - 600 CARB Diagram

#

Description
Price

10

Exhaust Manifold

420673131

$263.40

20

Gasket

420931610

$11.04

30

Socket Head Screw M8 X 25

205082544

$0.92

40

Hex. Screw M8 X 20

207182044

$0.61

50

Washer

250200111

$1.74

150

Exhaust Gasket

514053487

$25.34

200 > 200k

Exhaust Tuned Pipe | Includes 200 to 200m

514055064

$626.84

200a

Front Upper Half Enveloppe

514054992

$37.28

200b

Front Lower Half Enveloppe

514054993

$37.28

200c

Rear Upper Half Enveloppe

514055039

$65.64

200d

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$51.46

200d1

Henrob Rivet

293150091

$0.73

200e

Insulating Wool

514054487

$18.63

200g

Retaining Strap

514054408

$10.24

200h

Retaining Strap

514054409

$10.24

200j

Retaining Strap

514054410

$10.24

200k

Retaining Strap

514053499

$8.10

200m

Spring

514053643

$6.01

250

Bumper

514054275

$14.21

260

Pop Rivet 3/16"

293150103

$0.52

300

Exhaust Gasket

514053812

$24.60

400 > 400g

Muffler Ass'y | Includes 400 to 400g

514054972

$698.48

400a

RH Deflector

514054984

$52.96

400b

LH Deflector

514054967

$52.96

400c

RH Insulating Wool

514054711

$17.88

400d

LH Insulating Wool

514054299

$18.63

400e

Pop Rivet 3/16”

390910000

$0.48

400f

Lower Stopper

514054274

$18.63

400g

Lower Stopper

514054496

$25.34

410

Upper Stopper

514054606

$14.92

500

Spring

415107100

$6.01

550

Spring Bracket, 8.0mm hole

514054975

$6.09

560

Ornit Rivet 6,5 X 14.5

293150266

$1.88

600

Reflective Sheet

514054488

$11.28

660

Heat Shield (Rectangle)

514054987

Unavailable
