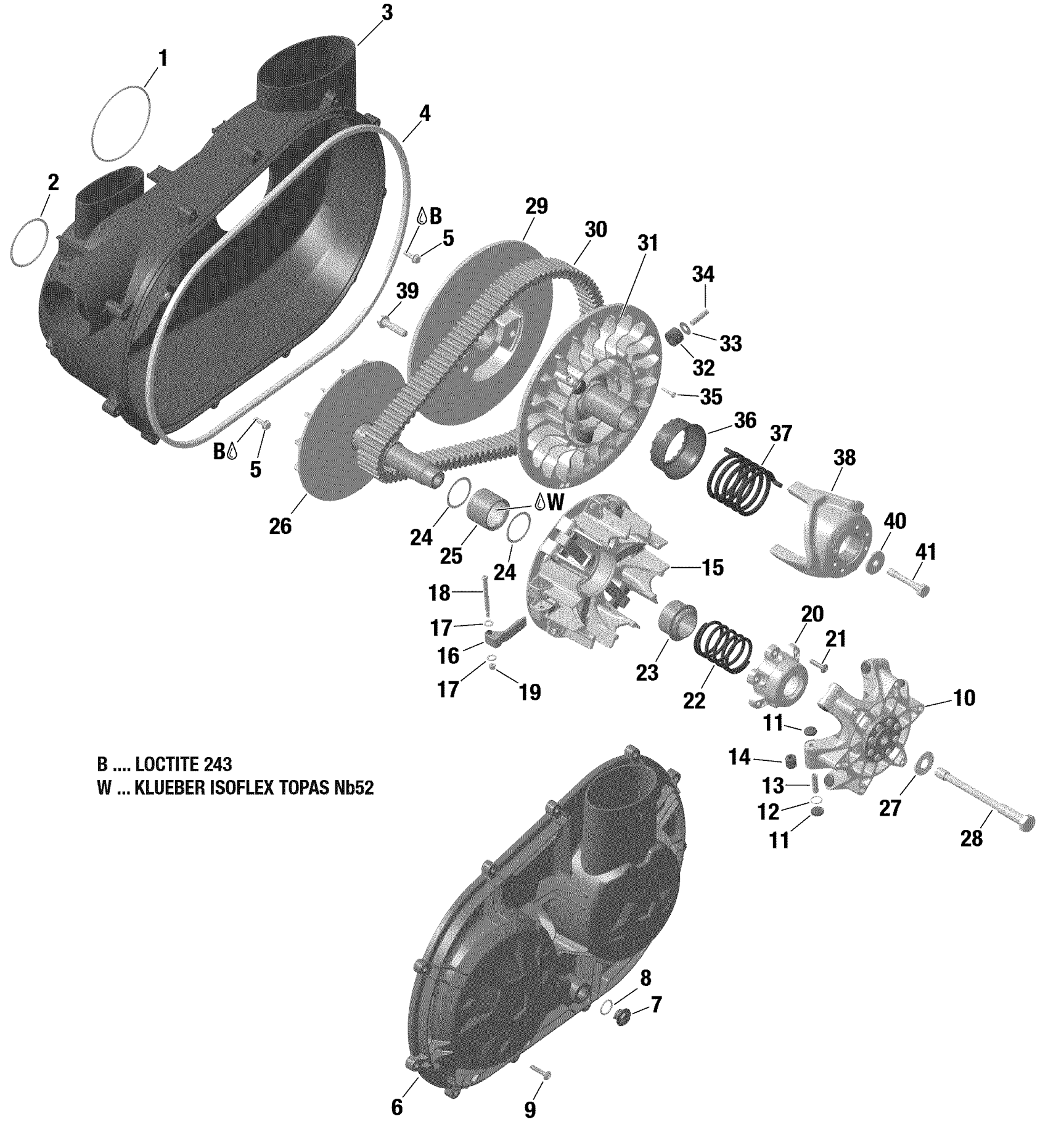

Can-Am Maverick X3 900HO, 2018 Transmission 900 HO Diagram

#

Description
Price

1

O-Ring

420450431

$5.29

2

O-Ring

420450520

$3.19

3

CVT Air Guide

420212605

$254.99

4

Gasket

420450405

$31.99

5

Hex.Screw M6 X 20

420441311

$5.18

6

Variator Cover

420212508

$190.49

7

Cap

420441820

$11.63

8

O-Ring

420250057

$4.23

9

Torx Screw 6X30

420441575

$3.06

10

Governor Cup Ass'y

420280746

$194.99

11

Slider Shoe Set

420281296

$65.49

12

O-Ring

420230456

$2.09

13

Roller Axle

417223257

$6.99

14

Roller

417223767

$11.59

15

Outer Half Ass'y

420280605

$289.99

16

Lever Set

420248662

$340.49

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Bearing Cover Ass'y

420280615

$65.49

21

Torx Flange Screw M6 X 25

420841549

$2.00

22

Compression Spring, Drive Pulley

420638110

$27.49

23

Spring Seat

420427210

$37.99

24

Washer

420427220

$4.86

25

Needle Roller Bearing With Sleeves

420832351

$49.99

26

Inner Half Ass'y

420280596

$339.99

27

Washer

420245690

$4.86

28

Hexagonal Screw M14X 165

420841161

$29.49

29

Sliding Pulley Ass'y

420280636

$349.99

30

Drive Belt

422280656

$174.99

31>35

Outer Half Pulley Ass'y

420280626

$349.99

32

Pulley Roller

417127016

$24.49

33

Thrust Washer

420227946

$2.51

34

Bearing Pin

420629192

$16.34

35

Torx Screw M4 X 20

420841531

$2.09

36

Spring Support

420427805

$11.17

37

Compression Spring

420638124

$37.99

38

Cam 37/50 Ass'y

420280706

$217.49

39

Torx Flange Screw M10 X 40

420841711

$2.09

40

Collar Washer

420427243

$16.40

41

Hexagonal Screw M10X 61

420441990

$19.49
