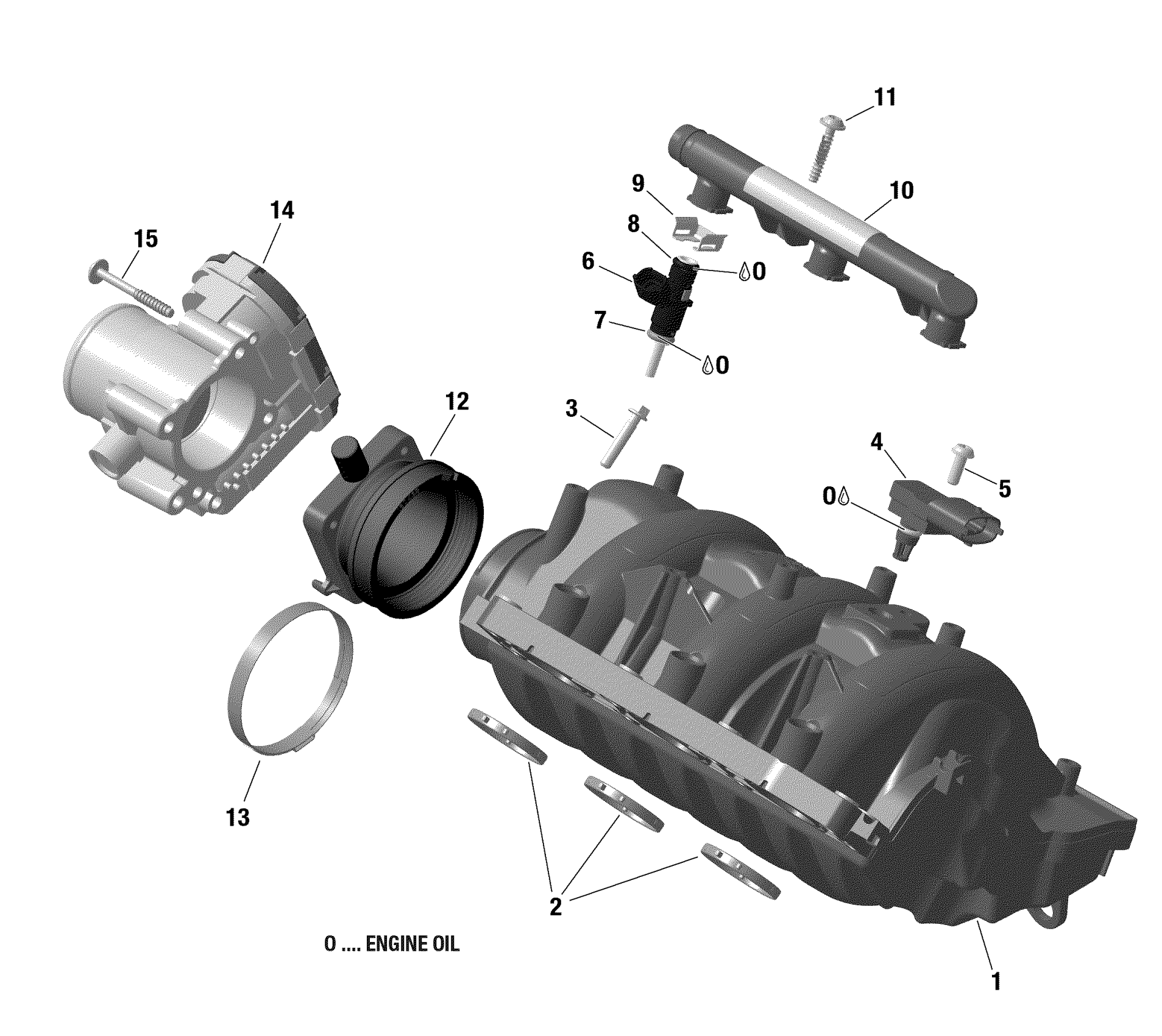

Can-Am Maverick X3 900HO, 2018 Air Intake Manifold And Throttle Body 900 HO Diagram

#

Description
Price

1

Airbox Ass'y | Includes 1 to 2

420867367

$359.97

2

Gasket

420450510

$46.12

3

Torx Flange Screw M6 X 30

420440647

$1.97

4

Pressure Sensor And Air Temperature

515178563

$134.52

5

Torx Flange Screw M6 X 16

420641588

$1.74

6

Injection Valve Ass'y | Includes 18 to 20

420874847

$114.37

7

O-Ring

420431890

$4.95

8

O-Ring

420631220

$11.48

9

Injector Clip

420853030

$2.46

10

Fuel Rail

420874966

$11.41

11

Torx Screw 6X30

420441575

$2.54

12

Connecting Socket

420867091

$41.51

13

Hose Clamp

420251483

$13.62

14

Throttle Body

420893149

$619.20

15

Torx Flange Screw M6 X 50

420441588

$3.61
