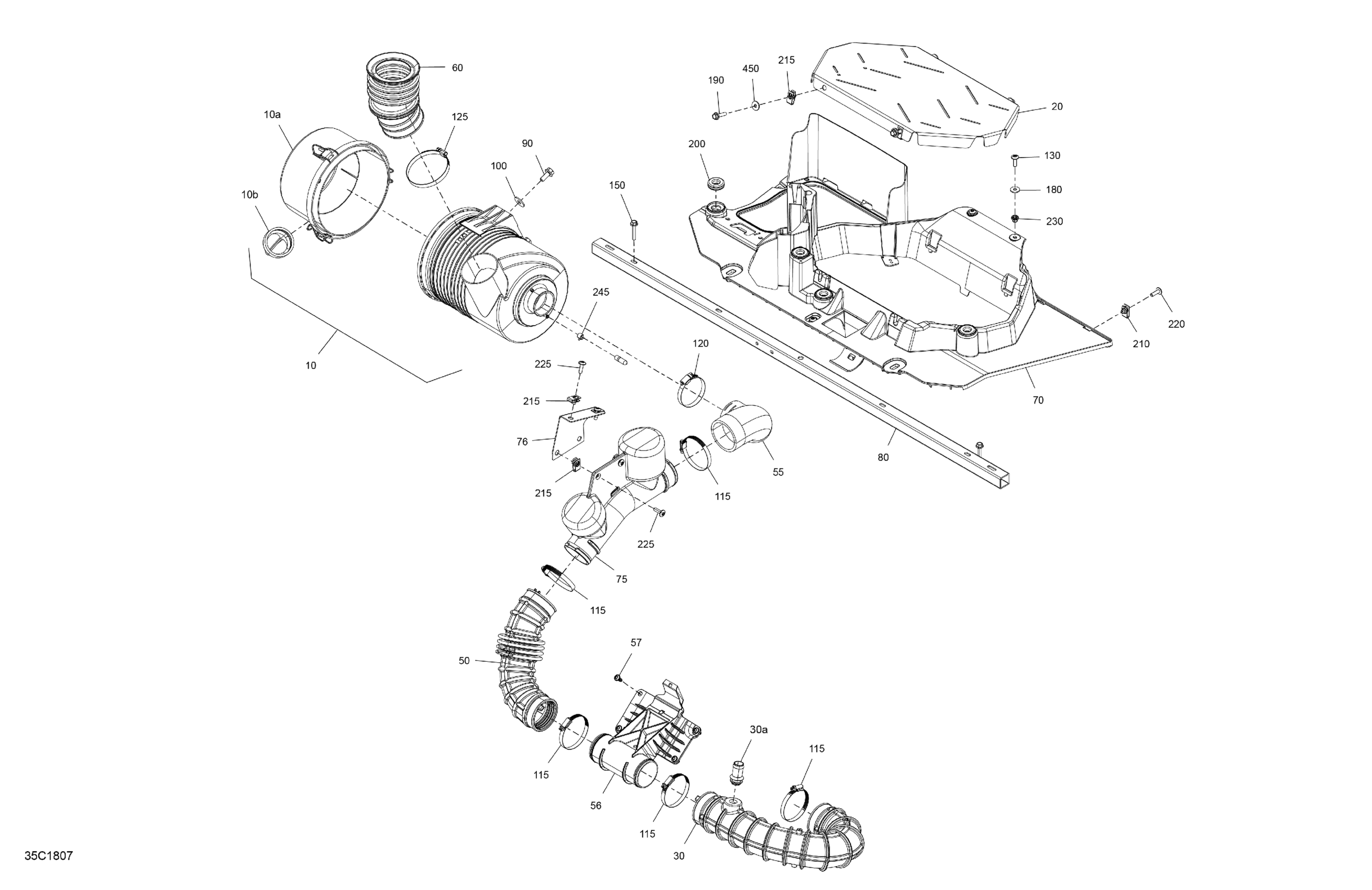

Can-Am Maverick X3 900HO, 2018 Air Intake Diagram

#

Description
Price

10

Airbox | Includes
10 to 10c

707801032

$194.99

10a

SILENCER-AIR COVER - Call your local BRP dealership | Includes 10a
to 10a2

715900565

Unavailable

10a2

Gasket Intake Silencer | Includes 10a to 10a1

707800844

$22.49

10b

Duct Bill Valve

715003114

$13.49

10c

Air Filter

715900422

$52.99

20

Protective Grille

707800771

$129.99

30

Air Intake | Includes 30 to
30a

707800789

$38.99

30a

Breather Valve

273000234

$14.49

50

Air Intake

707800805

$38.99

55

Air Intake

707800798

$89.99

56

Adaptor

707002209

$12.12

57

Torx Flange Screw M6 X 16

420641588

$2.11

60

Air Intake Filter

707800687

$15.49

70

Radiator Support

707800691

$129.99

75

Resonator

707002232

$38.99

76

Resonator Support Painted

707800800

$11.99

80

Square Tube

707801133

$54.99

90

Hex. Flange Screw M8 X 20

207682044

$1.15

100

Flat Washer 8 mm

234082410

$1.47

115

King Seal Clamp

293650271

$14.74

120

King Seal Clamp

293650270

$4.14

125

Norma Clamp

293650096

$3.17

130

Torx Screw M6 X 20

250000722

$1.68

150

Hex. Flange Screw S.Grip M6 X 35

207563544

$2.11

180

Stainless Steel Flat Washer

234062670

$2.11

190

Hex. Flange Screw M6 X 25

207562544

$1.69

200

Grommet

517303756

$4.09

210

Panel Nut M6 X 1.0

250100198

$2.11

215

Panel Nut M6 X 1.0

250100198

$2.11

220

Torx Screw M6 X 20

250000722

$1.68

225

Torx Screw M6 X 20

250000722

$1.68

230

Insert Half Hex Body M6 x 1.0

250100199

$3.19

245

Spring Clamp

414554800

$0.88

450

Flat Washer 6 mm

234062410

$0.77
