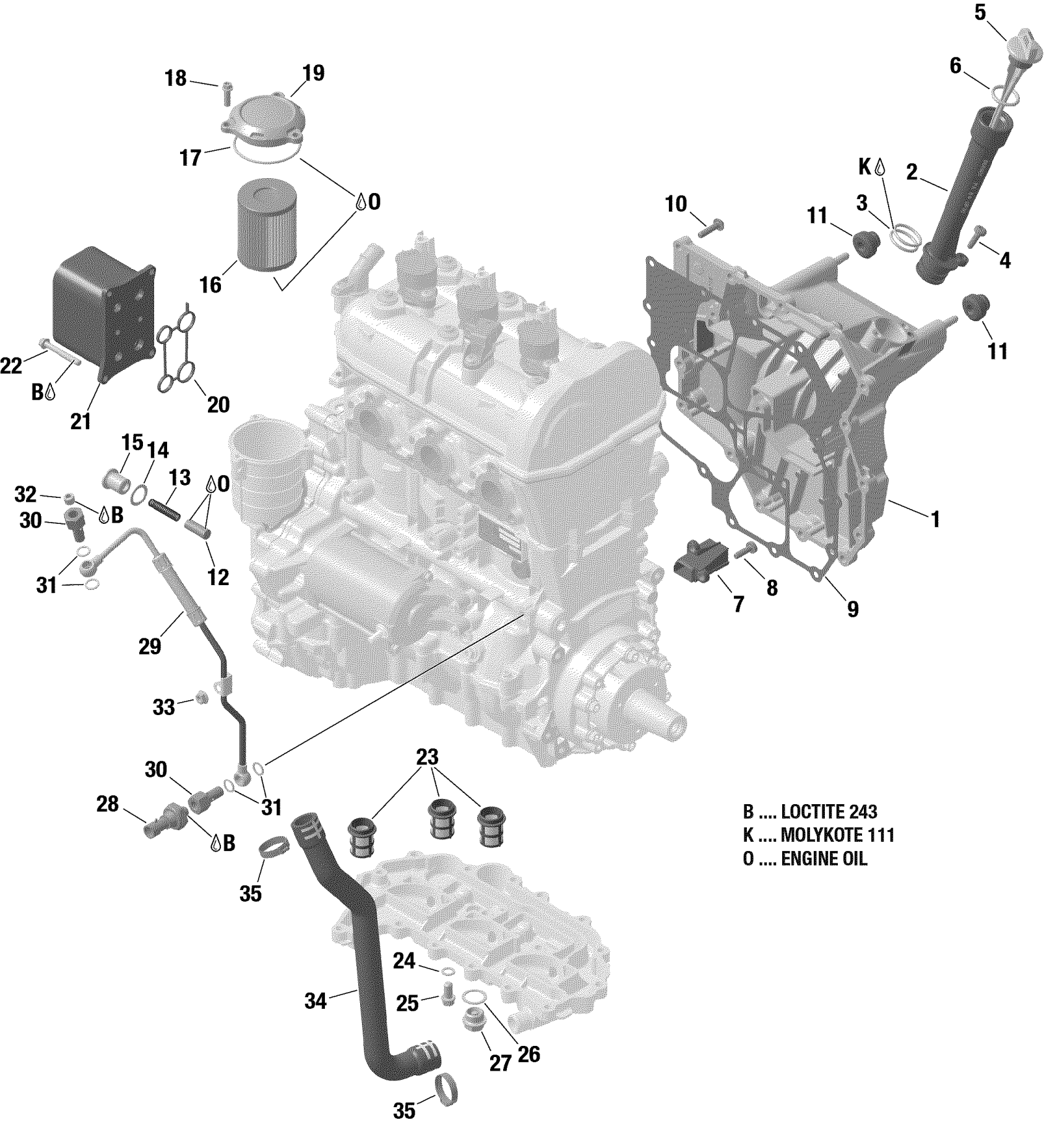

Can-Am Maverick X3 900HO, 2018 Engine Lubrication 900 HO Diagram

#

Description
Price

1

Oil Sump Cover

420656708

$90.97

2

Oil Filler Tube

420656901

$8.48

3

O-Ring

420430440

$3.22

4

Torx Flange Screw M6 X 20

420441383

$4.39

5

Oil Dipstick

420856668

$12.91

6

O-Ring

420631640

$2.06

7

Oil Suction Pipe

420456260

$11.98

8

Torx Flange Screw M6 X 20

420441383

$4.39

9

Oil Sump Cover Gasket | Included in gasket kit

420431848

Unavailable

10

Torx Flange Screw M6 X 25

420841548

$4.39

11

Rubber Grommet

420860150

$4.41

12

Pressure Regulating Piston

420256591

$10.58

13

Spring

420239445

$10.58

14

Gasket Ring

420430624

$1.51

15

Plug Screw

420441373

$11.01

16

Oil Filter

420956123

$11.14

17

O-Ring

420230923

$2.59

18

Torx Flange Screw M6 X 20

420440207

$2.54

19

Oil Filter cover

420612135

$11.11

20

Gasket

420431871

$8.83

21

Oil Water Heat Exchanger

420656689

$156.89

22

Torx Flange Screw M6 X 45

420440324

$0.81

23

Oil Sieve

420656680

$8.72

24

Sealing Ring

420950141

$1.64

25

Torx Flange Screw M8 X 16

420440852

$4.00

26

Crush Washer

420552280

$2.99

27

Drain Plug M18 X 1.5

420840278

$23.05

28

Oil Pressure Switch

420256915

$38.43

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable
