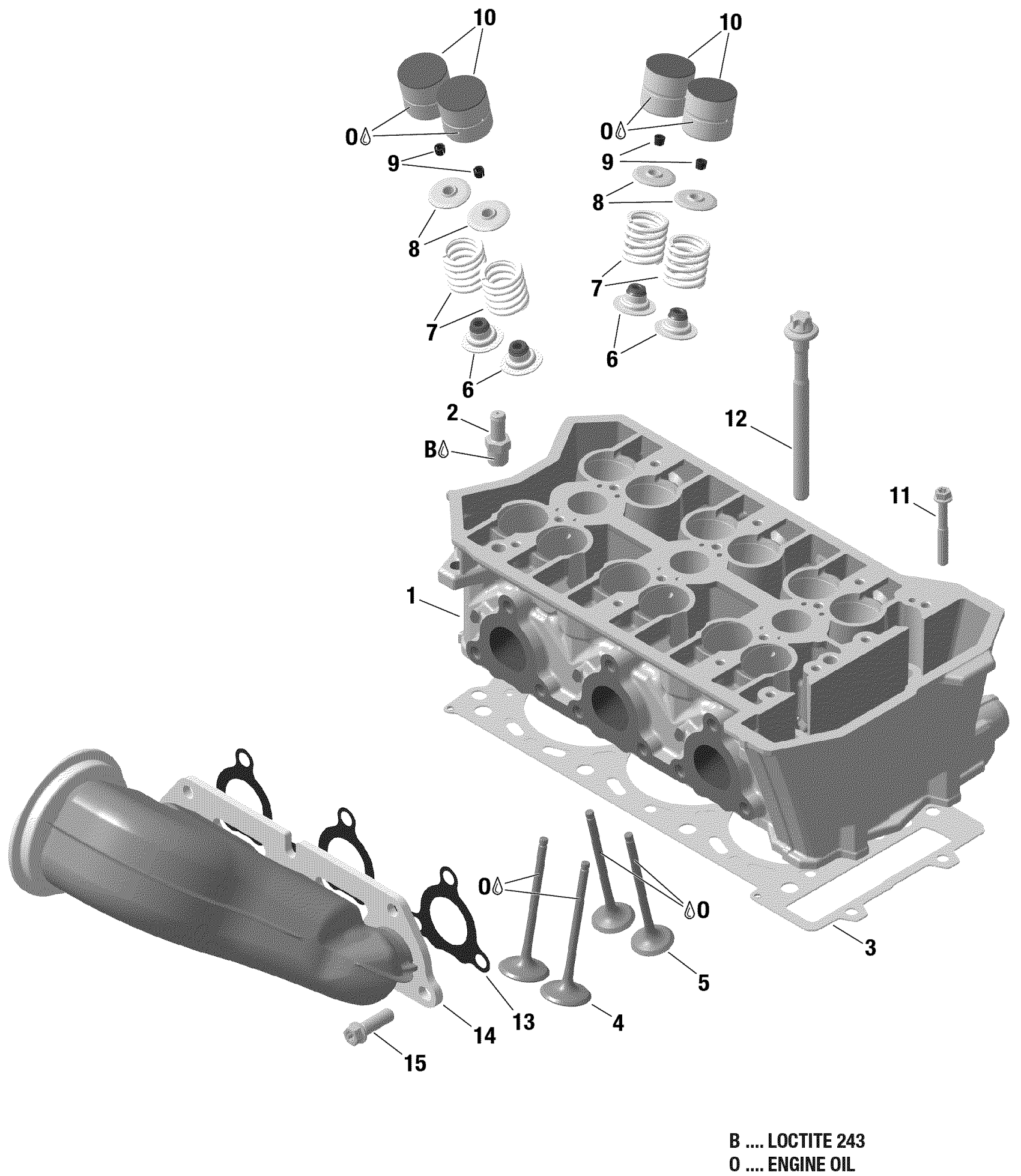

Can-Am Maverick X3 900HO, 2018 Cylinder Head And Exhaust Manifold 900 HO Diagram

#

Description

Price

1

Cylinder Head Ass'y

420213265

$848.48

2

Hose Nipple

420441420

$12.15

3

Cylinder Head Gasket

420431813

$42.51

4

Exhaust Valve 25 MM This part replaces 420855148.

420855146

Unavailable

5

Intake Valve 29MM

420855131

$23.10

6

Valve Stem Seal

420431671

$5.06

7

Valve Spring

420939540

$7.09

8

Valve Spring Retainer

420855150

$4.15

9

Cotter Valve

420254630

$0.96

10

Valve Lifter Bucket

420855165

$44.00

11

Torx Flange Screw M6 X 45

420440324

$0.93

12

Sided Bolt Screw M9 X 113

420940947

$10.10

13

Gasket | Included in gasket kit

420431850

$14.90

14

Exhaust Manifold

420673493

$354.45

15

Torx Flange Screw M8 X 25

420440372

$3.88
