Description

Price

20

Tool Kit | Includes 90 to 90k

704700169

$70.99

20a

Socket Wrench 14/16MM

529000085

$6.55

20b

Driven Open Tool

529000088

$17.99

20c

Torx Key T30

708200340

$8.94

35

Adjustment Wrench

529000057

$4.29

45

CVT Tool

708200720

$27.99

100

Front Fascia

705011317

$241.01

110

Torx Truss Screw M6 X 16

250000721

$1.60

120

Panel Nut M6 X 1.0

250100198

$1.99

130

Amber Reflector | Except Europe Model

705011222

$11.96

140

Elastic Flange Nut M5

233251494

$2.00

150

Torx Screw M6 X 45

250000748

$1.79

200

Fascia Removable Grid

705011318

$196.99

210

Clip

517306478

$1.03

500

LH Headlamp Structure

705011319

$206.69

510

Torx Screw M6 X 20

250000722

$1.54

530

Panel Nut M6 X 1.0

250100198

$1.99

540

Torx Screw K50 X 16

250000720

$1.60

550

Stainless Steel Flat Washer

234062670

$2.00

600

RH Headlamp Structure

705011320

$206.69

700

White, LH Hood Ass'y | Package Base

705011327

$184.30

700

Yellow, LH Hood Ass'y | Package DPS

705012413

$276.84

710

Torx Truss Screw M6 X 16

250000721

$1.60

730

Panel Nut M6 X 1.0

250100198

$1.99

740

Clip

517306478

$1.03

750

Flat Washer M6.6 X 22

250200162

$2.19

760

Support Plate

705003841

$0.91

770

Torx Screw M6 X 20

250000722

$1.54

800

White, RH Hood Ass'y | Package Base

705011328

$184.30

800

Yellow, RH Hood Ass'y | Package DPS

705012414

$276.84

900

Removable Hood

705011322

$95.49

910

Clip

517306478

$1.03

930

Torx Truss Screw M6 X 25

250000807

$2.00

940

Bushing

705502616

$8.24

1000

LH Front Mudguard

705011323

$52.96

1010

Torx Screw M6 X 20

250000722

$1.54

1020

Hex. Elastic Flange Nut M6

233161464

$0.96

1040

Torx Truss Screw M6 X 16

250000721

$1.60

1050

Clip

517306478

$1.03

1070

Tuflok Plastic Rivet

293150230

$1.39

1080

Torx Truss Screw M6 X 25

250000807

$2.00

1090

Panel Nut M6 X 1.0

250100198

$1.99

1100

RH Front Mudguard

705011324

$52.96

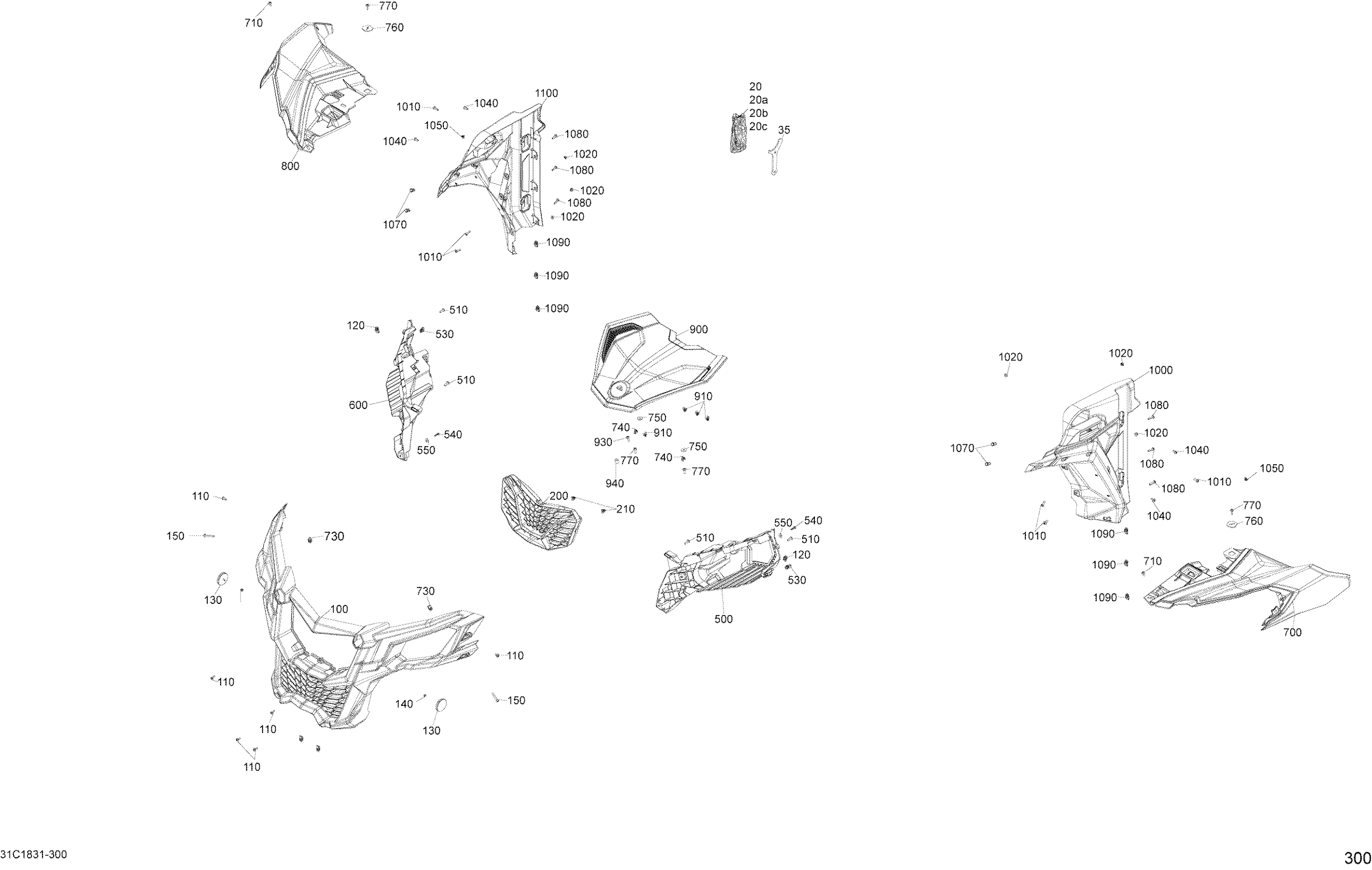

Can-Am Maverick Trail 800R EFI, 2018 BODY, Front Maverick Trail- 800R EFI Diagram

Tool Kit | Includes 90 to 90k

Socket Wrench 14/16MM

Driven Open Tool

Torx Key T30

Adjustment Wrench

CVT Tool

Front Fascia

Torx Truss Screw M6 X 16

Panel Nut M6 X 1.0

Amber Reflector | Except Europe Model

Elastic Flange Nut M5

Torx Screw M6 X 45

Fascia Removable Grid

Clip

LH Headlamp Structure

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Torx Screw K50 X 16

Stainless Steel Flat Washer

RH Headlamp Structure

White, LH Hood Ass'y | Package Base

Yellow, LH Hood Ass'y | Package DPS

Torx Truss Screw M6 X 16

Panel Nut M6 X 1.0

Clip

Flat Washer M6.6 X 22

Support Plate

Torx Screw M6 X 20

White, RH Hood Ass'y | Package Base

Yellow, RH Hood Ass'y | Package DPS

Removable Hood

Clip

Torx Truss Screw M6 X 25

Bushing

LH Front Mudguard

Torx Screw M6 X 20

Hex. Elastic Flange Nut M6

Torx Truss Screw M6 X 16

Clip

Tuflok Plastic Rivet

Torx Truss Screw M6 X 25

Panel Nut M6 X 1.0

RH Front Mudguard
