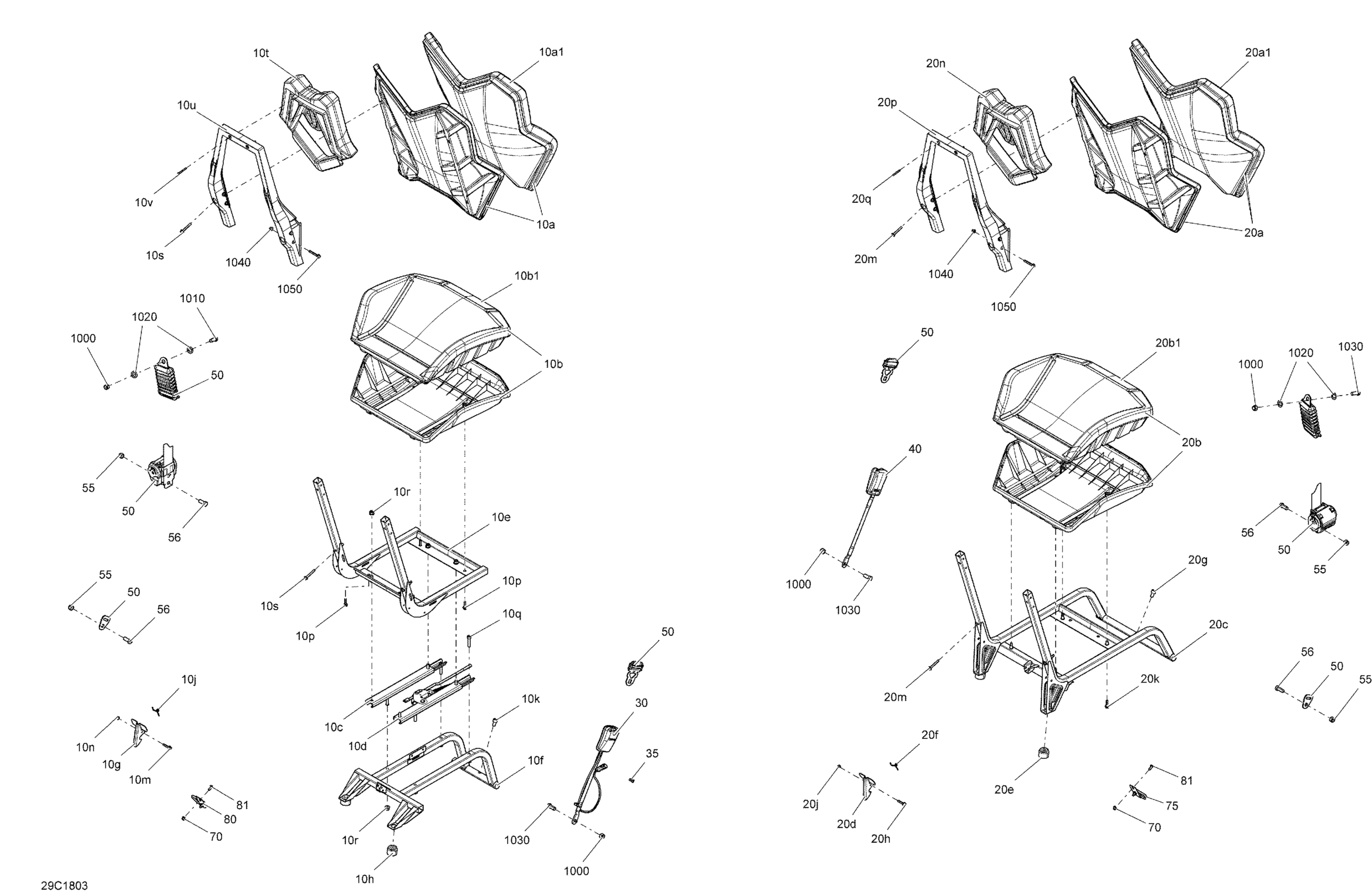

Can-Am Maverick, 2018 Seat Maverick Non MAX Diagram

#

Description
Price

10a

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

10a

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

10a

Backrest Ass'y Black | XTP

708002246

$332.28

10a

BACKREST - Call your local BRP dealership | Package XXC Can-Am Red Models

708002621

Unavailable

10a

BACKREST - Call your local BRP dealership | Package XXC Can-Am Red Models

708002621

Unavailable

10a

Backrest | Package XXC Gulfstream Blue Models

708002626

$415.35

10a

BACKREST - Call your local BRP dealership | Package XMR Carbon Black Models

708002629

Unavailable

10a1

Backrest Cover

708000675

$92.28

10a1

Backrest Cover

708000675

$92.28

10a1

Backrest Cover Black | XTP

708002248

$124.58

10a1

COVER - Call your local BRP dealership | Package XXC Can-Am Red Models

708002622

Unavailable

10a1

COVER - Call your local BRP dealership | Package XXC Can-Am Red Models

708002622

Unavailable

10a1

Cover | Package XXC Gulfstream Blue Models

708002627

$286.12

10a1

COVER - Call your local BRP dealership | Package XMR Carbon Black Models

708002630

Unavailable

10b

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

10b

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

10b

Cushion Ass'y Black | XTP

708002247

$295.35

10b

CUSHION - Call your local BRP dealership | Package XMR

708002267

Unavailable

10b

CUSHION - Call your local BRP dealership | Package XMR

708002267

Unavailable

10b

Cushion Ass'y Gulfstream Blue | Package XMR, XXC

708002273

$235.35

10b

CUSHION - Call your local BRP dealership | Package XMR Carbon Black Models

708002631

Unavailable

10b1

Seat Cover

708001103

$110.74

10b1

Seat Cover

708001103

$110.74

10b1

Cushion Cover Black | XTP

708002249

$78.43

10b1

Seat Cover Can-Am Red | Package XMR

708002268

$110.74

10b1

Seat Cover Can-Am Red | Package XMR

708002268

$110.74

10b1

Seat Cover Gulfstream Blue | Package XMR, XXC

708002274

$124.58

10b1

COVER - Call your local BRP dealership | Package XMR Carbon Black Models

708002632

Unavailable

10c

LH Rail

708000848

$50.74

10d

RH Rail

708001739

$36.89

10e

Operator Seat Frame

708001356

$313.82

10f

Seat Member

708000667

$55.35

10g

Seat Latch

708001355

$2.75

10h

Rubber Bumper

708001671

$2.31

10j

Spring

708000921

$1.15

10k

Socket Screw M10 X 16

205501644

$3.38

10m

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

10n

Hex. Elastic Stop Nut M6

232561600

$0.92

10p

Hex. Flange Screw M6 X 25

207562544

$1.39

10q

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

10r

Hex. Flange Elastic Nut M8

233281414

$1.14

10s

Hex. Flange Screw M6

250000672

$1.74

10t

Head Rest

708001074

$96.89

10u

Seat Support

708001245

$27.66

10v

Hex. Flange Screw K50 X 40

250000897

Unavailable

20a

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

20a

Backrest Ass'y | Includes 2 to 3

703500945

$378.43

20a

Backrest Ass'y Black | XTP

708002246

$332.28

20a

BACKREST - Call your local BRP dealership | Package XXC Can-Am Red Models

708002621

Unavailable

20a

BACKREST - Call your local BRP dealership | Package XXC Can-Am Red Models

708002621

Unavailable

20a

Backrest | Package XXC Gulfstream Blue Models

708002626

$415.35

20a

BACKREST - Call your local BRP dealership | Package XMR Carbon Black Models

708002629

Unavailable

20a1

Backrest Cover

708000675

$92.28

20a1

Backrest Cover

708000675

$92.28

20a1

Backrest Cover Black | XTP

708002248

$124.58

20a1

COVER - Call your local BRP dealership | Package XXC Can-Am Red Models

708002622

Unavailable

20a1

COVER - Call your local BRP dealership | Package XXC Can-Am Red Models

708002622

Unavailable

20a1

Cover | Package XXC Gulfstream Blue Models

708002627

$286.12

20a1

COVER - Call your local BRP dealership | Package XMR Carbon Black Models

708002630

Unavailable

20b

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

20b

Cushion Ass'y | Includes 4 to 5

703500943

$332.28

20b

Cushion Ass'y Black | XTP

708002247

$295.35

20b

CUSHION - Call your local BRP dealership | Package XMR

708002267

Unavailable

20b

CUSHION - Call your local BRP dealership | Package XMR

708002267

Unavailable

20b

Cushion Ass'y Gulfstream Blue | Package XMR, XXC

708002273

$235.35

20b

CUSHION - Call your local BRP dealership | Package XMR Carbon Black Models

708002631

Unavailable

20b1

Seat Cover

708001103

$110.74

20b1

Seat Cover

708001103

$110.74

20b1

Cushion Cover Black | XTP

708002249

$78.43

20b1

Seat Cover Can-Am Red | Package XMR

708002268

$110.74

20b1

Seat Cover Can-Am Red | Package XMR

708002268

$110.74

20b1

Seat Cover Gulfstream Blue | Package XMR, XXC

708002274

$124.58

20b1

COVER - Call your local BRP dealership | Package XMR Carbon Black Models

708002632

Unavailable

20c

Passenger Seat Frame

708001357

$304.58

20d

Seat Latch

708001355

$2.75

20e

Rubber Bumper

708001671

$2.31

20f

Spring

708000921

$1.15

20g

Socket Screw M10 X 16

205501644

$3.38

20h

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

20j

Hex. Elastic Stop Nut M6

232561600

$0.92

20k

Hex. Flange Screw M6 X 25

207562544

$1.39

20m

Hex. Flange Screw M6

250000672

$1.74

20n

Head Rest

708001074

$96.89

20p

Seat Support

708001245

$27.66

20q

Hex. Flange Screw K50 X 40

250000897

Unavailable

30

Driver Buckle Side

708002061

$69.20

35

Tie Wrap 368 mm

293750008

$0.85

40

Passenger Buckle Side | Model-North America, International

708002062

$50.74

50

Safety Belt

708002644

$272.28

55

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$5.84

56

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

70

Insert Half Hex Body M6 x 1.0

250100199

$2.54

75

Retaining Rod RH

708002303

$14.37

80

Retaining Rod LH

708002302

$14.75

81

Torx Head Screw M6 X 16

250000717

$1.74

1000

Nylon Insert Hex. Lock Nut 7/16-20

250100135

$5.84

1010

Safety Belt Screw

708000890

$3.68

1020

Position Washer

708000891

$1.15

1030

Hex. Cap Screw 7/16'' X 1'' | Europe

250000521

$1.56

1040

Hex. Elastic Flange Nut M6

233161464

$0.83

1050

Hex. Flange Screw M6

250000672

$1.74
