Description

Price

10

Console Kit | Engine 1000R Except Europe Model, Except XMR

715003355

$41.76

10

Console Kit | Engine 1000R Except Europe Model, Except XMR

715003355

$41.76

20

Tuflok Plastic Rivet

293150230

$1.39

30

Cup Retainer

707900036

$6.19

100

LH Side Console

707900001

$40.27

120

Insert

707900133

$2.89

130

Washer

503189273

$3.10

250

RH Side Console

707900002

$32.81

350

Front Side Dash Panel

707900193

$62.66

370

Torx Screw M6 X 20

250000722

$1.54

380

Threaded Insert M6 X 1.0

250100242

Unavailable

390

Stainless Steel Flat Washer

234062670

$2.00

400

RH Fixe Side Console

707900021

$68.63

480

Washer

506151252

$3.01

500

LH Front Floor

707900181

$75.34

520

Torx Screw M6 X 20

250000712

$2.00

525

Torx Screw M6 X 25

250000758

$2.00

530

Hex. Flange Elastic Nut M6

233261494

$1.45

550

Panel Nut M6 X 1.0

250100198

$1.99

570

Torx Screw K50 X 16

250000720

$1.60

580

Flat Washer 6 mm

234062410

$0.73

600

LH Lower Floor

707900022

$241.01

625

Torx Truss Screw M6 X 25

250000807

$2.00

670

Rubber Cover

293250242

$5.18

680

Was 293250381 Seal Tray

219704382

$39.52

800

Grille

707900178

$8.91

805

Grille

707900180

$8.91

825

Torx Truss Screw M6 X 30

250000843

$2.00

845

Washer M5

250200025

$0.70

850

RH Front Floor

707900004

$74.60

920

Oblong Grommet

705003668

$5.21

950

RH Lower Floor

707900023

$172.36

1030

DEFLECTOR - Call your local BRP dealership

707900152

Unavailable

1030

Deflector | XRS-DPS

707900204

Unavailable

1050

Upper Seal

293250252

$2.59

1060

Bottom Seal

293250253

$2.79

1300

Floor Support LH

707900561

$19.37

1330

Torx Screw Truss Head K50X20 T20

250000760

$2.00

1340

Flat Washer

224060201

$1.12

1370

Was 293200017 Neoprene Seal

219704365

$135.79

1400

RIGHT FLOOR SUPPORT - Call your local BRP dealership

707900562

Unavailable

1470

Was 293200017 Neoprene Seal

219704365

$135.79

1600

LH Under Seat Plate

707900218

$73.10

1700

RH Under Seat Plate

707900006

$100.72

1800

LH Rear Deflector

707900164

$87.28

1820

Hex. Flange Screw M6 X 20

207662034

$2.00

1850

Flat Washer

250200040

$1.76

1910

Heat Shield

707900182

$8.66

1920

Heat Shield

707900183

$4.76

2000

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900166

Unavailable

2050

Torx Screw M6 X 16

250000755

$0.82

2094

Heat Shield

707900167

$7.67

2098

Heat Shield

707900184

$4.76

2200

Dashboard Ass'y

715001250

$71.61

2230

Support Plate

705003841

$0.91

2240

Edge Clip

517302785

$0.81

2300

Lower Central Dashboard Ass'y | Europe

707900019

$36.54

2310

Torx Screw M5 X 20

250000724

$1.60

2320

Panel Nut M5 X 0.8

250000958

$4.00

2350

DASH CAP - Call your local BRP dealership | Carbon Black Models

707900600

Unavailable

2400

Passenger Handle

707900011

$12.43

2420

Connector Tube

707900048

$5.52

2500

Storage Bin

707900009

$103.70

2530

CAP - Call your local BRP dealership

414859400

Unavailable

2540

Rubber Bumper

293830005

$6.12

2600

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

2610

Latch

707900031

$7.57

2620

Trim Glove Box

707900062

$16.39

2650

Front LH Safety Net

707900237

$117.13

2660

Front RH Safety Net

707900238

$117.13

2670

Hex. Flange Elastic Nut M8

233281414

$1.31

2690

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

2710

Hex. Flange Screw M6 X 20

207662044

$1.91

2730

Flat Washer 8 mm

234082410

$1.27

3000

Lever Indicator

707900070

$13.78

3100

Torx Screw M6 X 25 | XT Models

250000728

$4.15

3300

Front Central Console Foam

707900619

$15.64

3320

Left Upper Lateral Console Foam

707900620

$14.76

3330

LH Lower Lateral Console Foam

707900621

$19.37

3340

RH Lateral Console Foam

707900622

$14.49

3350

RH Lateral Console Foam

707900623

$14.49

3360

RH Lateral Console Foam

707900624

$14.49

3550

Heat Sheet

707900148

$6.72

3600

Heat Sheet

707900149

$8.66

3650

Heat Sheet

707900150

$0.97

3700

Heat Sheet

707900151

$9.58

3750

Heat Sheet

707900146

$10.55

3800

Heat Sheet

707900147

$8.66

3850

Heat Sheet

707900145

$10.55

3900

Heat Sheet

707900190

$7.67

3950

Heat Sheet

707900191

$0.97

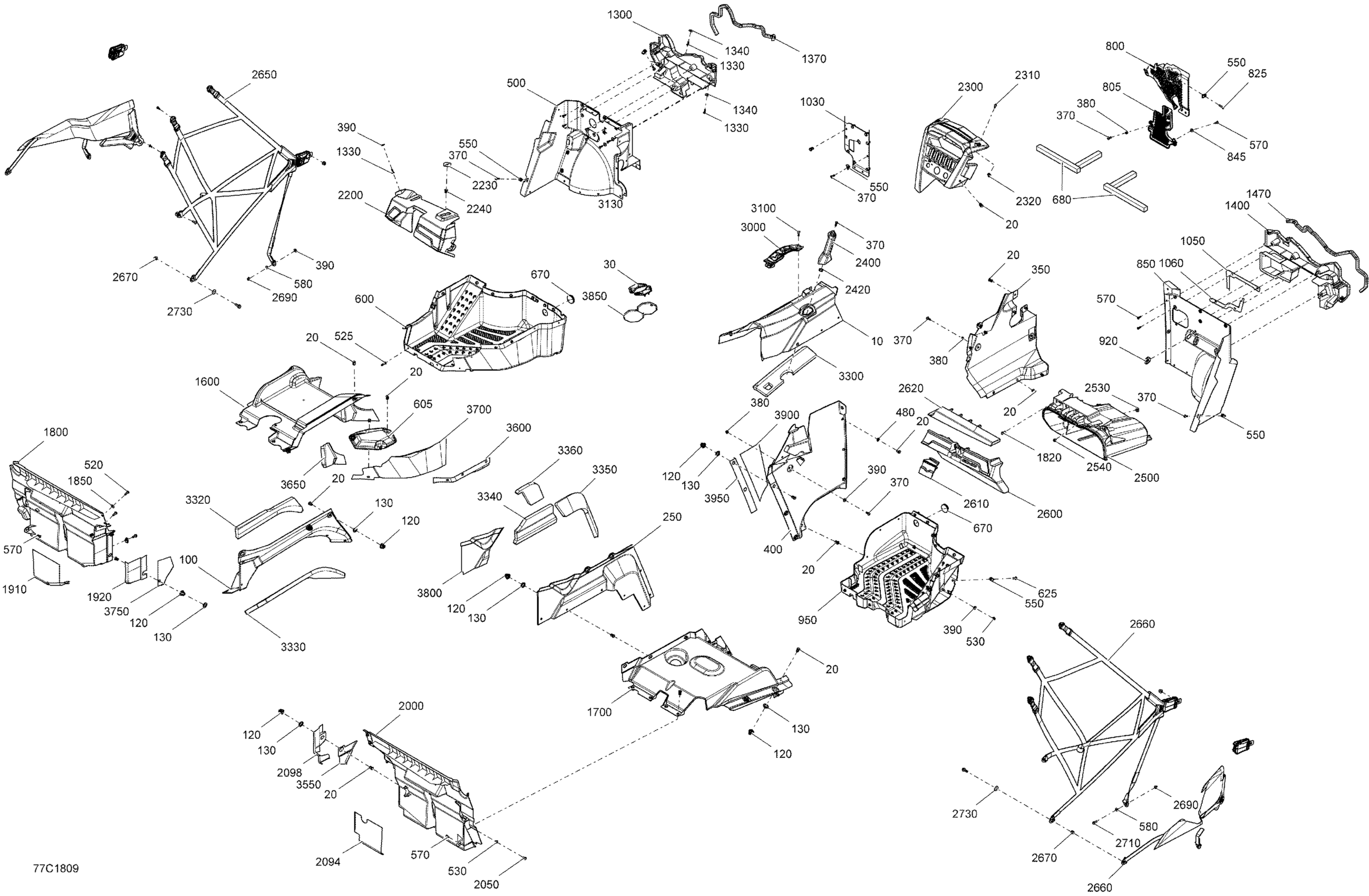

Can-Am Maverick, 2018 Cab Interior Maverick Non MAX - Except Package XMR Diagram

Console Kit | Engine 1000R Except Europe Model, Except XMR

Console Kit | Engine 1000R Except Europe Model, Except XMR

Tuflok Plastic Rivet

Cup Retainer

LH Side Console

Insert

Washer

RH Side Console

Front Side Dash Panel

Torx Screw M6 X 20

Threaded Insert M6 X 1.0

Stainless Steel Flat Washer

RH Fixe Side Console

Washer

LH Front Floor

Torx Screw M6 X 20

Torx Screw M6 X 25

Hex. Flange Elastic Nut M6

Panel Nut M6 X 1.0

Torx Screw K50 X 16

Flat Washer 6 mm

LH Lower Floor

Torx Truss Screw M6 X 25

Rubber Cover

Was 293250381 Seal Tray

Grille

Grille

Torx Truss Screw M6 X 30

Washer M5

RH Front Floor

Oblong Grommet

RH Lower Floor

DEFLECTOR - Call your local BRP dealership

Deflector | XRS-DPS

Upper Seal

Bottom Seal

Floor Support LH

Torx Screw Truss Head K50X20 T20

Flat Washer

Was 293200017 Neoprene Seal

RIGHT FLOOR SUPPORT - Call your local BRP dealership

Was 293200017 Neoprene Seal

LH Under Seat Plate

RH Under Seat Plate

LH Rear Deflector

Hex. Flange Screw M6 X 20

Flat Washer

Heat Shield

Heat Shield

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

Torx Screw M6 X 16

Heat Shield

Heat Shield

Dashboard Ass'y

Support Plate

Edge Clip

Lower Central Dashboard Ass'y | Europe

Torx Screw M5 X 20

Panel Nut M5 X 0.8

DASH CAP - Call your local BRP dealership | Carbon Black Models

Passenger Handle

Connector Tube

Storage Bin

CAP - Call your local BRP dealership

Rubber Bumper

LUGGAGE COVER KIT - Call your local BRP dealership

Latch

Trim Glove Box

Front LH Safety Net

Front RH Safety Net

Hex. Flange Elastic Nut M8

Hex. Flange Elastic Nut M6 x 1.0

Hex. Flange Screw M6 X 20

Flat Washer 8 mm

Lever Indicator

Torx Screw M6 X 25 | XT Models

Front Central Console Foam

Left Upper Lateral Console Foam

LH Lower Lateral Console Foam
