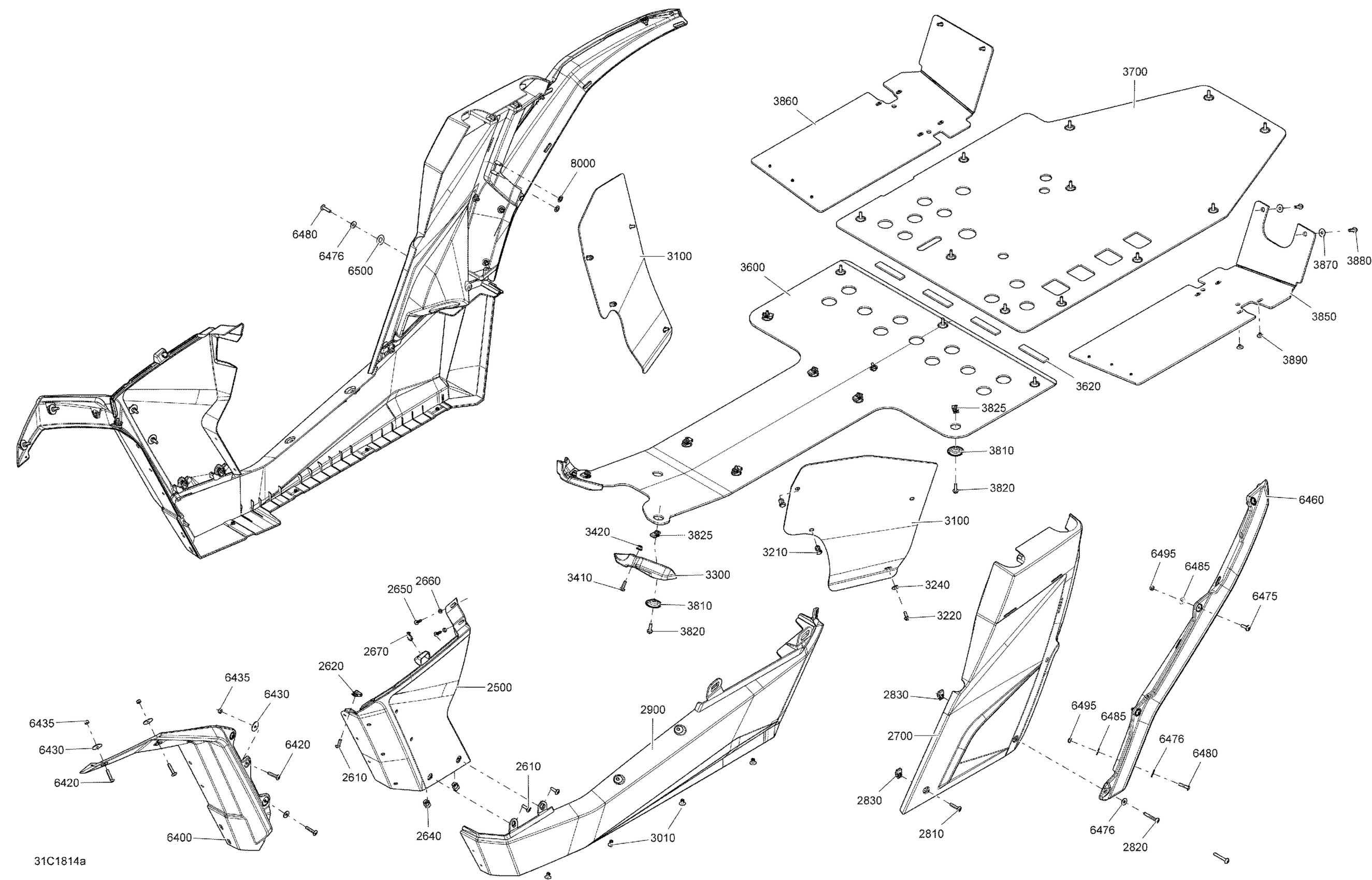

Can-Am Maverick, 2018 Body Central Part Maverick - Carbon Black Models Diagram

#

Description
Price

2500

Painted Sunburst Yellow LH Front Panel | Carbon Black Models

705012077

$334.30

2500

Painted Sunburst Yellow RH Front Panel | Carbon Black Models

705012078

$334.30

2610

Torx Screw M6 X 20

250000722

$1.54

2620

Panel Nut M6 X 1.0

250100198

$1.99

2640

Panel Nut M6 X 1.0

250100198

$1.99

2650

Torx Screw Truss Head K50X20 T20

250000760

$2.00

2660

Flat Washer M5

234051410

$0.51

2670

Tuflok Plastic Rivet

293150230

$1.39

2700

Painted Carbon Black Lh Rear Panel | Carbon Black Models

705012083

$479.82

2700

Painted Carbon Black RH Rear Panel | Carbon Black Models

705012084

$479.82

2810

Torx Truss Screw M6 X 30

250000843

$2.00

2820

Torx Screw M6 X 45

250000748

$1.79

2830

Panel Nut M6 X 1.0

250100198

$1.99

2900

LH Lateral Middle Panel | STD

705006991

$65.64

2900

RH Lateral Middle Panel | STD

705006992

$65.64

3010

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

3100

INNER FENDER - Call your local BRP dealership

705007827

Unavailable

3210

Tuflok Plastic Rivet

293150230

$1.39

3220

Hex. Flange Screw M6 X 16

210261650

$1.40

3240

Stainless Steel Flat Washer

234062670

$2.00

3300

LH BUMPER SKID CAP - Call your local BRP dealership

705006038

Unavailable

3300

RH BUMPER SKID CAP - Call your local BRP dealership

705006039

$13.87

3410

Torx Screw M6 X 20

250000712

$2.00

3420

Hex. Flange Elastic Nut M6

233261494

$1.45

3600

Front Skid Plate

705005798

$88.03

3620

Pad

291001932

$9.84

3700

Rear Skid Plate

705005480

$80.57

3810

Cup | Package Hunter

705007171

$6.00

3820

Hexagonal Head Screw

210262050

$2.00

3825

Panel Nut M6 X 1.0

250100198

$1.99

3860

RH Lateral Skid Plate

705007038

$59.67

3870

Flat Washer

250200097

$2.00

3880

Hexagonal Head Screw

210262050

$2.00

3890

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

6400

LH Front Deflector | Model-Red

705008988

$48.48

6400

RH Front Deflector | Model-Red

705008989

$48.48

6420

Stainless, Torx Screw M6 X 30

250000842

$2.00

6430

Stainless Steel Flat Washer

234062670

$2.00

6435

Elastic Stop Nut M6

232561434

$1.78

6460

LH Rear Deflector | Model-Red

705007637

$49.97

6460

RH Rear Deflector | Model-Red

705007638

$49.97

6475

Torx Screw M6 X 20

250000712

$2.00

6476

Stainless Steel Flat Washer

234062670

$2.00

6480

Torx Screw M6 X 25

250000758

$2.00

6485

Stainless Steel Flat Washer

234062670

$2.00

6495

Elastic Stop Nut M6

232561434

$1.78

6500

Hardened Washer

706200281

$2.69

8000

Push Nut

250100031

$6.66
