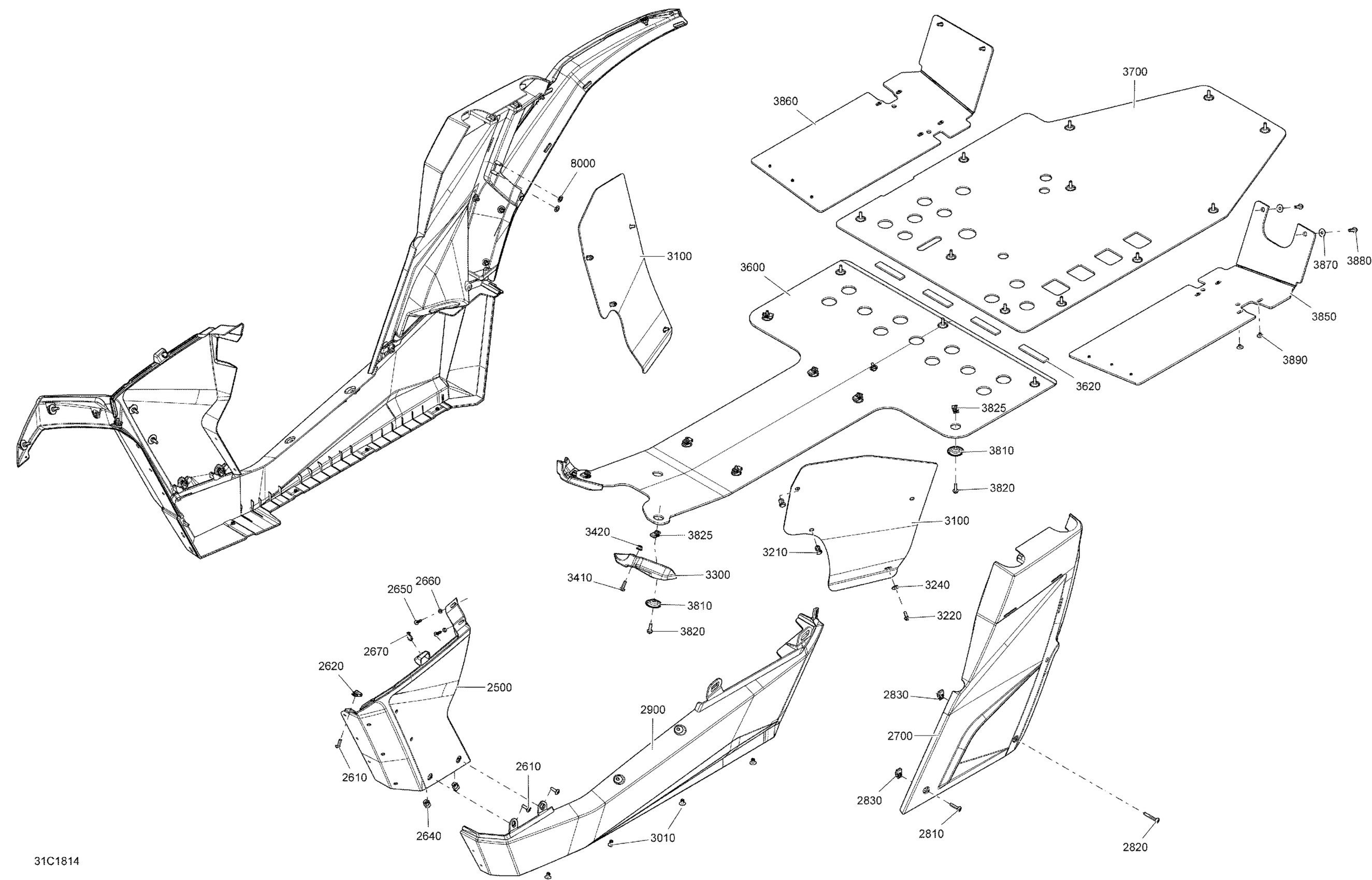

Can-Am Maverick, 2018 Body Central Part Maverick - Bright White Models Diagram

White, LH Front Lateral Pannel | Model-White

705007358

$38.78

White, RH Front Lateral Pannel | Model-White

705007359

$38.78

Torx Screw M6 X 20

250000722

$1.54

Panel Nut M6 X 1.0

250100198

$1.99

Panel Nut M6 X 1.0

250100198

$1.99

Torx Screw Truss Head K50X20 T20

250000760

$2.00

Flat Washer M5

234051410

$0.51

Tuflok Plastic Rivet

293150230

$1.39

White LH Rear Lateral Panel | Model-White

705007362

$98.48

White RH Rear Lateral Panel | Model-White

705007363

$98.48

Torx Truss Screw M6 X 30

250000843

$2.00

Torx Screw M6 X 45

250000748

$1.79

Panel Nut M6 X 1.0

250100198

$1.99

LH Lateral Middle Panel | STD

705006991

$65.64

RH Lateral Middle Panel | STD

705006992

$65.64

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

INNER FENDER - Call your local BRP dealership

705007827

Unavailable

Tuflok Plastic Rivet

293150230

$1.39

Hex. Flange Screw M6 X 16

210261650

$1.40

Stainless Steel Flat Washer

234062670

$2.00

LH BUMPER SKID CAP - Call your local BRP dealership

705006038

Unavailable

RH BUMPER SKID CAP - Call your local BRP dealership

705006039

$13.87

Torx Screw M6 X 20

250000712

$2.00

Hex. Flange Elastic Nut M6

233261494

$1.45

Front Skid Plate

705005798

$88.03

Pad

291001932

$9.84

Rear Skid Plate

705005480

$80.57

Cup | Package Hunter

705007171

$6.00

Hexagonal Head Screw

210262050

$2.00

Panel Nut M6 X 1.0

250100198

$1.99

RH Lateral Skid Plate

705007038

$59.67

Flat Washer

250200097

$2.00

Hexagonal Head Screw

210262050

$2.00

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

Push Nut

250100031

$6.66
