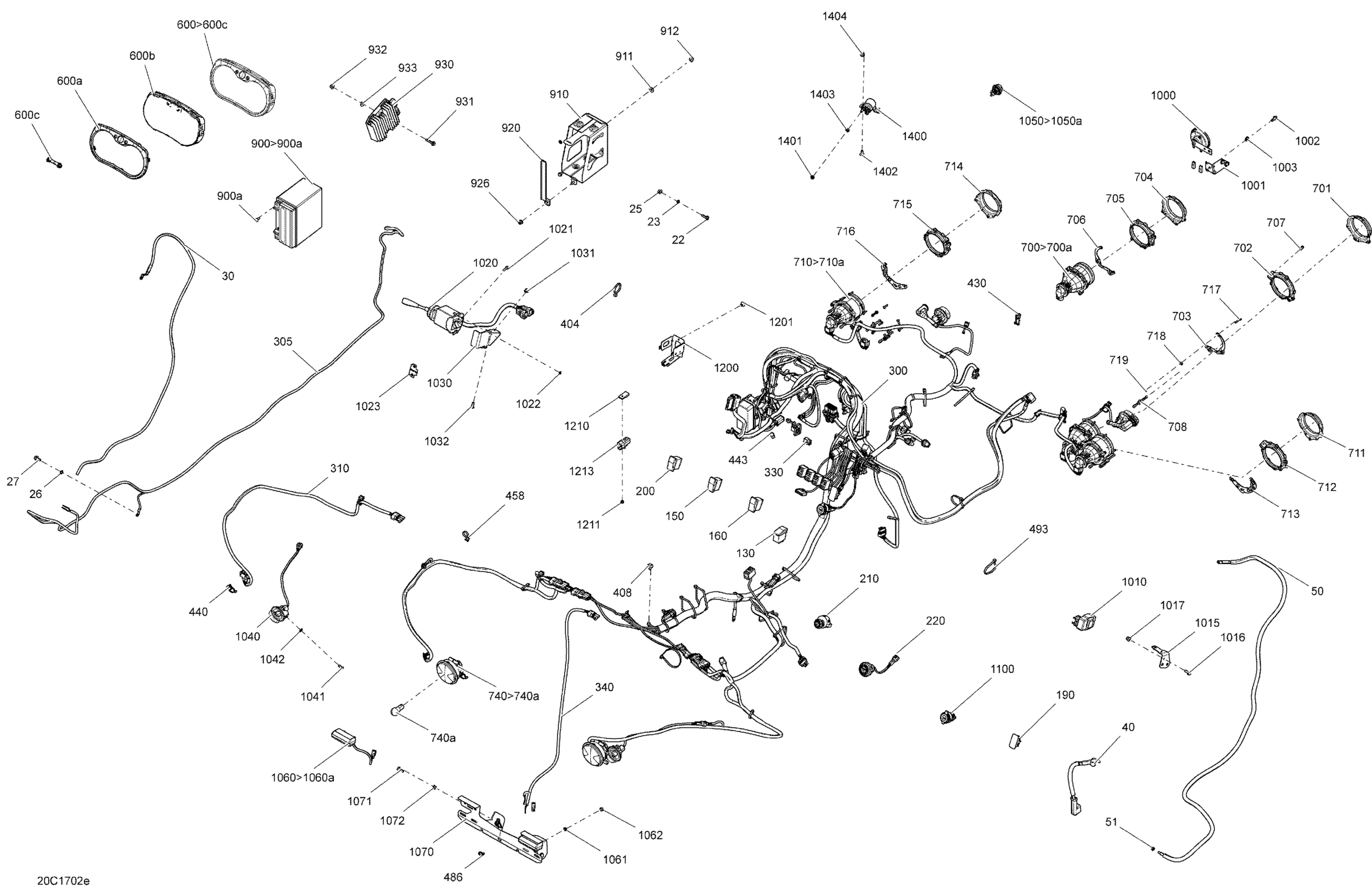

Can-Am Maverick, 2017 Electrical System - Turbo Europe Diagram

Hex. Flange Screw M6 X 20

207662044

$1.66

External Serrated Lock Washer 6 mm

234461608

$0.92

Hex. Flange Nut M6

233061414

$1.34

External Serrated Lock Washer 6 mm

234461608

$0.92

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Ground Cable

710005063

Unavailable

Positive Cable | Package STD

710004384

$36.89

Positive Cable

710004383

$41.51

Elastic Stop Nut M6

232561414

$1.55

Switch, Over ride

710002053

$19.27

4X4 Switch

710001737

$32.28

Switch PPS Sport

710003541

$18.43

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Switch Hazard | Europe

710002076

$18.43

Switch_Ignition | Model-Europe

710007865

$69.20

Engine Start Button

710002594

$59.97

WIRING HARNESS ASSY - Call your local BRP dealership | MAVERICK

710005228

Unavailable

WIRING HARNESS ASSY - Call your local BRP dealership

710004349

Unavailable

WIRING HARNESS REAR - Call your local BRP dealership

710004686

Unavailable

Harness Ass'y | Europe

710004346

$406.12

WIRING HARNESS ASSY - Call your local BRP dealership | Europe

710004687

Unavailable

Mount Dart

293730040

$0.86

Tie Wrap 142 mm

293750002

$0.88

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 173 mm

293750009

$0.85

Tie-Rap 180 mm

414115200

$0.09

Clip

414227300

$1.45

Tie-Rap Clip

710002896

$4.60

Tie-Rap Clip

710002896

$4.60

Speedometer Ass'y | Model-XT

710005116

$415.35

Gauge Ring

415129348

$11.71

Lens | XTP

415129349

$23.05

Speedometer Button | XTP

415129355

$13.94

Low Beam Ass'y | Includes 1 to 2

710002524

$143.05

Halogen Bulb

415129249

$39.97

RH Low Front Housing

710001081

$16.89

RH Low Rear Housing

710001082

$10.98

RH Low Light Support

710001094

$9.22

LH Low Front Housing

710001083

$16.89

LH Low Rear Housing

710001084

$10.98

LH Low Light Support

710001037

$9.22

Phillips Screw K40 X 16

250000723

$0.81

Setting Screw

710001147

$12.91

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

Halogen Bulb

415129249

$39.97

RH High Front Housing

710001085

$16.89

RH High Rear Housing

710001086

$10.98

RH High Light Support

710001115

$5.52

LH High Front Housing

710001087

$16.89

LH High Rear Housing

710001088

$10.98

LH High Light Support

710001036

$5.52

Hex. Screw M4 X 25

207142544

$1.63

Flat Washer M5

234051410

$0.44

Elastic Stop Nut M4

232541414

$0.48

Tail Light Ass'y | Includes 32 to 33

710001645

$80.74

Bulb

520000758

$7.49

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Battery Bolt Kit

250000282

$2.95

Battery Support

710003129

$46.12

Flat Washer 6 mm

234062410

$0.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Battery Holder

710001916

$19.20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Voltage Regulator | XT, XTP, LTD

710001191

$193.82

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Stainless Steel Flat Washer

234062670

$1.74

Horn

710004791

$37.66

SUPPORT - Call your local BRP dealership | Europe

710003170

Unavailable

Hex. Flange Screw M6 X 16

207661644

$0.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Flasher Unit

710003239

$78.43

SUPPORT - Call your local BRP dealership | Europe

710002408

Unavailable

Hex. Flange Screw M6 X 16

207661644

$0.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Turn Signal | Europe

710001721

$198.43

Hex. Forming Screw M5 X 16

210251650

$0.92

Lock Washer 5 mm | Europe

234151401

$0.46

Flasher Decal | Europe

704902614

$16.89

Flasher Arm Support | Europe

709400810

$27.66

Threaded Insert M6 X 1.0

250100242

Unavailable

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.82

Flasher | Europe

710002964

$35.14

Torx Truss M6X14

250000789

$4.41

Flat Washer 6 mm

234061410

$1.04

Day Light | Europe

710001726

$36.89

Cap Protector | Model-Europe

710003269

$10.98

License Light

710002055

$59.99

Bulb

219800128

$2.99

Lock Washer Helical M6

234161601

$0.92

Hex. Nut M6

232061600

$0.91

LIGHT SUPPORT - Call your local BRP dealership

710004573

Unavailable

Hex. Flange Screw M6 X 16

207661644

$0.61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

DC Outlet

710001248

$31.17

Fuse Holder

710003335

$9.29

Pop Rivet 3/16"

293150103

$0.54

Clip

270000141

$8.33

Pop Rivet 3/16"

390402400

$0.25

Housing

710003006

$7.24

Starter Relay

710007777

$46.89

Lock Washer Helical M6

234161601

$0.92

Torx Head Screw M6 X 16

250000717

$1.74

Hex. Nut M6

232061600

$0.91

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
