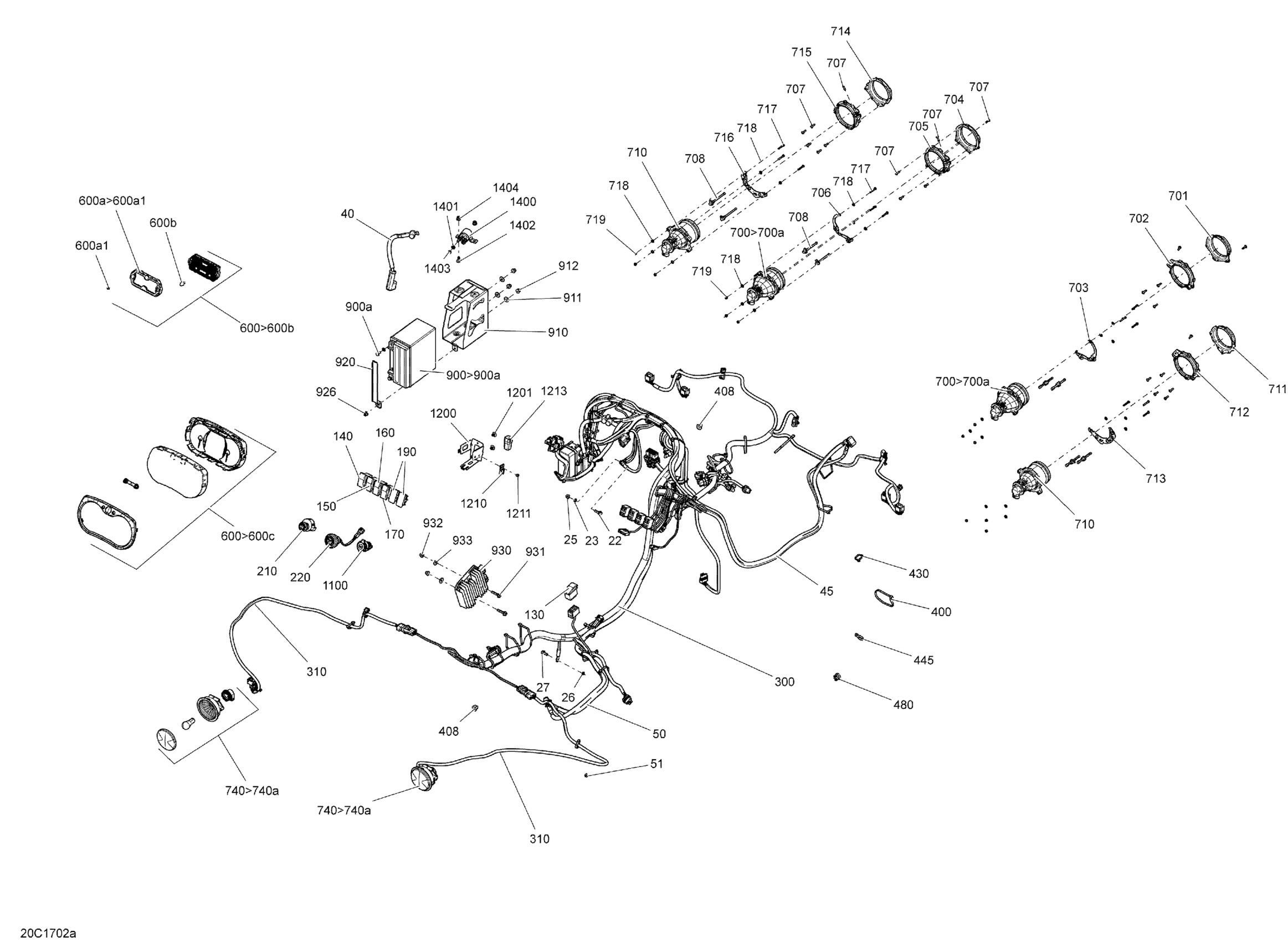

Can-Am Maverick, 2017 Electrical System - 1000R EFI Except Package XMR Diagram

Hex. Flange Screw M6 X 20

207662044

$1.66

External Serrated Lock Washer 6 mm

234461608

$0.92

Hex. Flange Nut M6

233061414

$1.34

External Serrated Lock Washer 6 mm

234461608

$0.92

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

POSITIVE CABLE - Call your local BRP dealership | Package DPS MAX Model

710004920

Unavailable

Positive Cable | Package STD

710004384

$36.89

POSITIVE CABLE - Call your local BRP dealership | Package DPS Except MAX Model

710004878

Unavailable

POSITIVE CABLE - Call your local BRP dealership | Package DPS Except MAX Model

710004878

Unavailable

Positive Cable

710004383

$41.51

Elastic Stop Nut M6

232561414

$1.55

Switch, Over ride

710002053

$19.27

Hi/Low Switch | Except Europe

710001725

$23.74

4X4 Switch

710001737

$32.28

Switch PPS Sport

710003541

$18.43

Switch DPS

710001781

$23.74

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

Ignition Switch

710008400

$78.43

Engine Start Button

710002594

$59.97

WIRING HARNESS ASSY - Call your local BRP dealership | MAVERICK

710005228

Unavailable

WIRING HARNESS REAR - Call your local BRP dealership

710004685

$41.51

Mount Dart

293730040

$0.86

Tie Wrap 142 mm

293750002

$0.88

Tie Wrap 368 mm

293750008

$0.85

Tie-Rap 173 mm

293750009

$0.85

Tie-Rap 180 mm

414115200

$0.09

Clip

414227300

$1.45

Tie-Rap Clip

710002896

$4.60

Dart Tie Rap 200MM

710003168

$5.72

Speedometer

710005087

$373.82

Trim Ring Ass'y

710001183

$18.43

BRP Logo13 mm

704904615

$9.66

Button

715900265

$12.68

Speedometer Ass'y | Model-XT

710005116

$415.35

Gauge Ring

415129348

$11.71

Lens | XTP

415129349

$23.05

Speedometer Button | XTP

415129355

$13.94

Low Beam Ass'y | Includes 1 to 2

710002524

$143.05

Halogen Bulb

415129249

$39.97

RH Low Front Housing

710001081

$16.89

RH Low Rear Housing

710001082

$10.98

RH Low Light Support

710001094

$9.22

LH Low Front Housing

710001083

$16.89

LH Low Rear Housing

710001084

$10.98

LH Low Light Support

710001037

$9.22

Phillips Screw K40 X 16

250000723

$0.81

Setting Screw

710001147

$12.91

High Beam Ass'y | Includes 11 to 12

710002525

$115.35

RH High Front Housing

710001085

$16.89

RH High Rear Housing

710001086

$10.98

RH High Light Support

710001115

$5.52

LH High Front Housing

710001087

$16.89

LH High Rear Housing

710001088

$10.98

LH High Light Support

710001036

$5.52

Hex. Screw M4 X 25

207142544

$1.63

Flat Washer M5

234051410

$0.44

Elastic Stop Nut M4

232541414

$0.48

Tail Light Ass'y | Includes 32 to 33

710001645

$80.74

Bulb

520000758

$7.49

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Battery Bolt Kit

250000282

$2.95

Battery Support

710003129

$46.12

Flat Washer 6 mm

234062410

$0.64

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Battery Holder

710001916

$19.20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Voltage Regulator | XT, XTP, LTD

710001191

$193.82

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Stainless Steel Flat Washer

234062670

$1.74

DC Outlet

710001248

$31.17

Fuse Holder

710003335

$9.29

Pop Rivet 3/16"

293150103

$0.54

Clip

270000141

$8.33

Pop Rivet 3/16"

390402400

$0.25

Housing

710003006

$7.24

Starter Relay

710007777

$46.89

Lock Washer Helical M6

234161601

$0.92

Torx Head Screw M6 X 16

250000717

$1.74

Hex. Nut M6

232061600

$0.91

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
