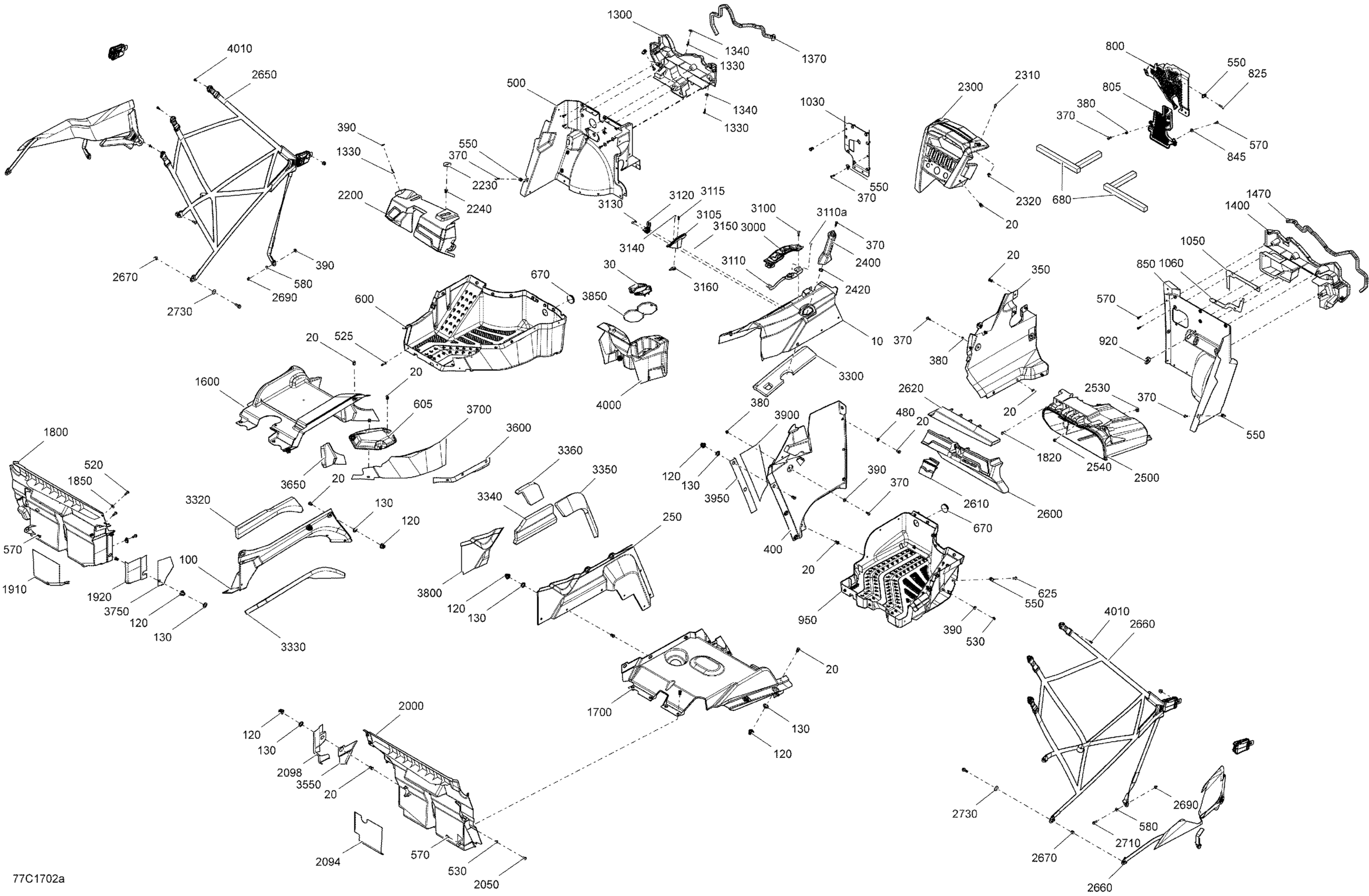

Can-Am Maverick, 2017 Cab Interior - Except Package XMR Diagram

CONSOLE ASSEMBLY - Call your local BRP dealership | Package XDS STD North America

715004335

Unavailable

CONSOLE ASSEMBLY - Call your local BRP dealership | Package XDS STD International

715004177

Unavailable

Console Kit | Engine 1000R Except Europe Model, Except XMR

715003355

$46.12

CONSOLE KIT - Call your local BRP dealership | Engine 1000R Europe Model

715003359

Unavailable

Tuflok Plastic Rivet

293150230

$1.21

Cup Retainer

707900036

$6.45

LH Side Console

707900001

$41.51

PANEL_CONSOLE LWR L - Call your local BRP dealership | Model-White/Grey/Green (Turbo)

707900308

Unavailable

Insert

707900133

$2.75

Washer

503189273

$3.20

RH Side Console

707900002

$36.89

Front Side Dash Panel

707900193

$69.20

Torx Screw M6 X 20

250000722

$1.34

Threaded Insert M6 X 1.0

250100242

Unavailable

Stainless Steel Flat Washer

234062670

$1.74

RH Fixe Side Console

707900021

$73.82

Washer

506151252

$3.11

LH Front Floor

707900181

$78.43

Torx Screw M6 X 20

250000712

$1.74

Torx Screw M6 X 25

250000758

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Panel Nut M6 X 1.0

250100198

$1.73

Torx Screw K50 X 16

250000720

$1.39

Flat Washer 6 mm

234062410

$0.64

LH Lower Floor

707900022

$253.82

LH Lower Floor | Model-White/Grey/Green (Turbo)

707900309

$198.43

Floor Cap | Model-White/Grey/Green (Turbo)

707900311

$41.51

Torx Truss Screw M6 X 25

250000807

$1.74

Rubber Cover

293250242

$5.38

Was 293250381 Seal Tray

219704382

$41.51

Grille

707900178

$9.18

Grille

707900180

$9.18

Torx Truss Screw M6 X 30

250000843

$1.74

Washer M5

250200025

$0.61

RH Front Floor

707900004

$78.43

Oblong Grommet

705003668

$4.54

RH Lower Floor

707900023

$184.58

DEFLECTOR - Call your local BRP dealership

707900152

Unavailable

Deflector | XRS-DPS

707900204

Unavailable

Upper Seal

293250252

$2.75

Bottom Seal

293250253

$2.99

Floor Support LH

707900561

$23.05

Torx Screw Truss Head K50X20 T20

250000760

$1.74

Flat Washer

224060201

$1.15

Was 293200017 Neoprene Seal

219704365

$118.27

RIGHT FLOOR SUPPORT - Call your local BRP dealership

707900562

Unavailable

Was 293200017 Neoprene Seal

219704365

$118.27

LH Under Seat Plate

707900218

$78.43

LH Under Seat Plate | Model-Black Carbon (Turbo)

707900310

Unavailable

RH Under Seat Plate

707900006

$106.12

LH Rear Deflector

707900164

$92.28

Hex. Flange Screw M6 X 20

207662034

$1.74

Flat Washer

250200040

$1.82

Heat Shield

707900182

$8.98

Heat Shield

707900183

$5.52

DEFLECTOR_BODY PANEL REAR R - Call your local BRP dealership

707900166

Unavailable

Torx Screw M6 X 16

250000755

$0.72

Heat Shield

707900167

$8.45

Heat Shield

707900184

$5.52

Dashboard Ass'y

715001250

$78.43

Support Plate

705003841

$0.91

Edge Clip

517302785

$0.70

Central Dashboard Ass'y

715002178

$36.89

Torx Screw M5 X 20

250000724

$1.39

Panel Nut M5 X 0.8

250000958

$3.48

Passenger Handle

707900011

$12.91

Connector Tube

707900048

$6.45

Storage Bin

707900009

$110.74

CAP - Call your local BRP dealership

414859400

Unavailable

Rubber Bumper

293830005

$5.33

LUGGAGE COVER KIT - Call your local BRP dealership

707900221

Unavailable

Latch

707900031

$8.29

Trim Glove Box

707900062

$17.66

Front LH Safety Net

707900237

$124.58

Front RH Safety Net

707900238

$124.58

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Hex. Flange Screw M6 X 20

207662044

$1.66

Flat Washer 8 mm

234082410

$1.11

Lever Indicator

707900070

$14.75

Lever Indicator | Europe

707900071

$14.75

Shift Lever Indicator

707900088

$14.75

Torx Screw M6 X 25 | XT Models

250000728

$3.61

PADLOCK TRIM - Call your local BRP dealership | Europe

707900373

Unavailable

LOCK SUPPORT - Call your local BRP dealership | Europe

707900303

Unavailable

Torx Truss Screw M5 X 16, T25

250000578

$1.74

Padlock with Key

707000666

$27.66

Socket Head Screw M5 X 10

205951046

$2.38

Torx Truss Screw K40 X 12

250000577

$1.74

Rivet

390401400

$0.51

WASHER - Call your local BRP dealership

391301000

$0.65

CAP - Call your local BRP dealership | Europe

707900060

Unavailable

Front Central Console Foam

707900619

$16.12

Left Upper Lateral Console Foam

707900620

$15.35

LEFT UPPER LATERAL CONSOLE FOAM - Call your local BRP dealership | Model-White/Grey/Green (Turbo)

707900631

Unavailable

LH Lower Lateral Console Foam

707900621

$20.74

RH Lateral Console Foam

707900622

$15.35

RH Lateral Console Foam

707900623

$15.35

RH Lateral Console Foam

707900624

$15.35

Heat Sheet

707900148

$7.37

Heat Sheet

707900149

$8.98

HEAT SHEET - Call your local BRP dealership | Model-Black Carbon (Turbo)

707900313

Unavailable

Heat Sheet

707900150

$1.37

HEAT SHEET - Call your local BRP dealership | Model-White/Grey/Green (Turbo)

707900314

Unavailable

Heat Sheet

707900151

$10.14

HEAT SHEET - Call your local BRP dealership | Model-Black Carbon (Turbo)

707900315

Unavailable

Heat Sheet

707900146

$11.06

Heat Sheet

707900147

$8.98

Heat Sheet

707900145

$11.06

HEAT SHEET - Call your local BRP dealership | Model-White/Grey/Green (Turbo)

707900302

Unavailable

Heat Sheet

707900190

$8.45

Heat Sheet

707900191

$1.37

REAR LOWER CONSOLE - Call your local BRP dealership | Model-White/Grey/Green (Turbo)

707900278

Unavailable

Torx Screw M5 X 14

250000742

$1.20

LOCK SUPPORT ASS'Y - Call your local BRP dealership | Model-Europe

707900376

Unavailable

Insert M5 X 0.8

293450268

$1.95
