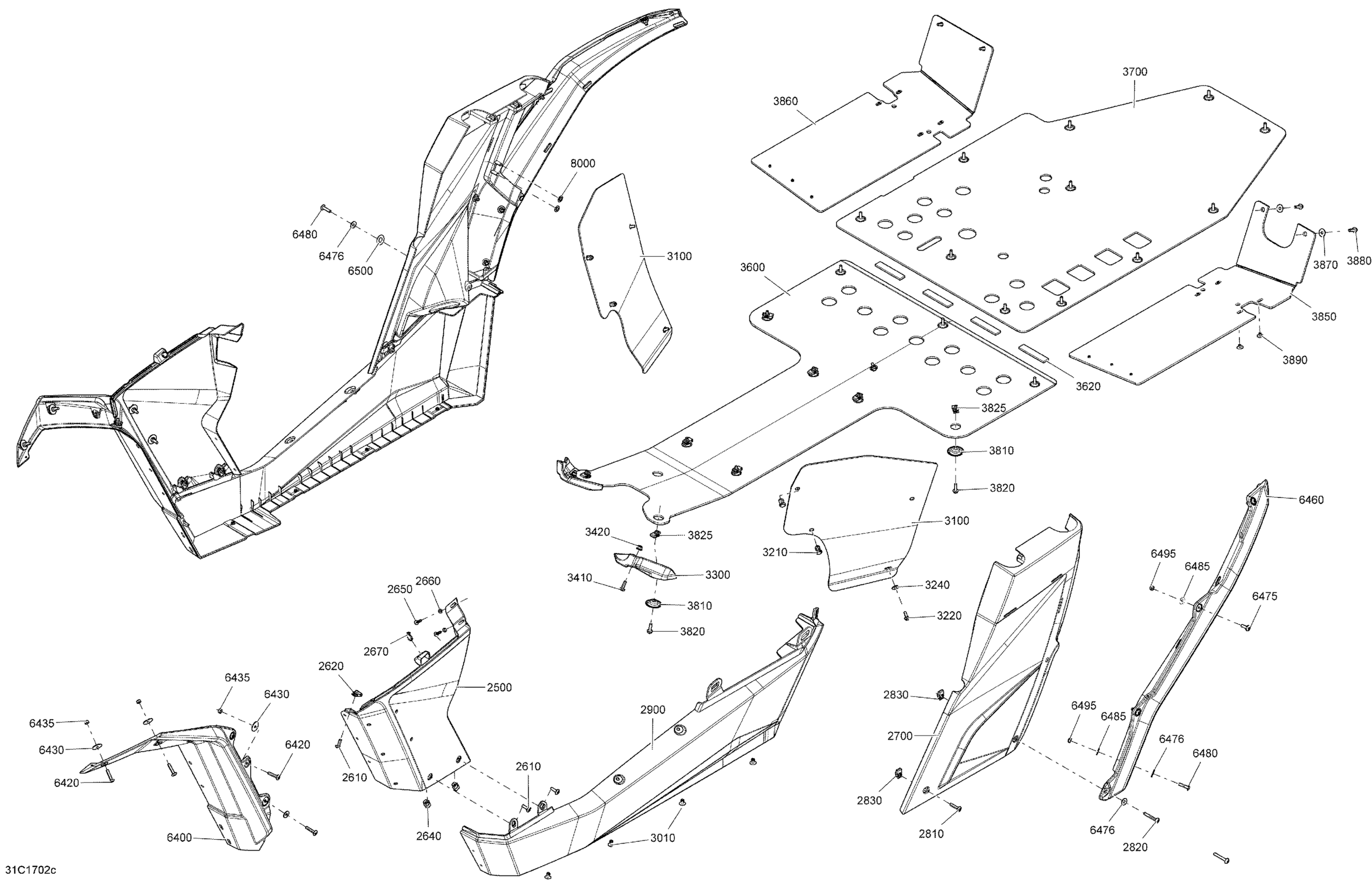

Can-Am Maverick, 2017 Body And Accessories - Middle Section All Models Diagram

PANEL_BODY FL B-160 - Call your local BRP dealership

705007853

Unavailable

PANEL_BODY FR B-160 - Call your local BRP dealership | Package DPS Quarry Gray Model

705007854

$36.89

PANEL_BODY FL B-282 - Call your local BRP dealership | Silver Model

705011650

Unavailable

PANEL_BODY FR B-282 - Call your local BRP dealership | Silver Model

705011651

Unavailable

QUARRY GRAY LH FRONT LATERAL PANNEL - Call your local BRP dealership | Model-Quarry Gray

705008239

Unavailable

Quarry Gray RH Front Lateral Pannel | Model-Quarry Gray

705008240

$41.51

Timeless Black, LH Front Panel

705011644

$350.74

Timeless Black, RH Front Panel

705011645

$350.74

White, LH Front Lateral Pannel | Model-White

705007358

$41.51

White, RH Front Lateral Pannel | Model-White

705007359

$41.51

YELLOW LH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007846

Unavailable

YELLOW RH FRONT LATERAL PANNEL - Call your local BRP dealership | Yellow Models

705007845

Unavailable

Torx Screw M6 X 20

250000722

$1.34

Panel Nut M6 X 1.0

250100198

$1.73

Panel Nut M6 X 1.0

250100198

$1.73

Torx Screw Truss Head K50X20 T20

250000760

$1.74

Flat Washer M5

234051410

$0.44

Tuflok Plastic Rivet

293150230

$1.21

PANEL_BODY REAR L B-160 - Call your local BRP dealership | Package DPS Quarry Gray Model

705009851

$88.43

Black RH Rear Lateral Panel | Package DPS Quarry Gray Model

705009852

$101.51

PANEL_BODY REAR L B-282 - Call your local BRP dealership | Silver Model

705011718

Unavailable

Panel_Body Rear R B-282 | Silver Model

705011719

$498.43

PANEL_BODY REAR L B-365 - Call your local BRP dealership | Package STD Quarry Gray Model

705010322

Unavailable

PANEL_BODY REAR R B-365 - Call your local BRP dealership | Package STD Quarry Gray Model

705010323

Unavailable

Panel_Body Rear R B-302

705011711

$507.66

PANEL_BODY REAR L B-302 - Call your local BRP dealership

705011710

Unavailable

White LH Rear Lateral Panel | Model-White

705007362

$106.12

White RH Rear Lateral Panel | Model-White

705007363

$106.12

Yellow LH Rear Lateral Panel

705007872

$101.51

Yellow RH Rear Lateral Panel

705007873

$101.51

Torx Truss Screw M6 X 30

250000843

$1.74

Torx Screw M6 X 45

250000748

$1.56

Panel Nut M6 X 1.0

250100198

$1.73

LH Lateral Middle Panel | STD

705006991

$69.20

RH Lateral Middle Panel | STD

705006992

$69.20

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

INNER FENDER - Call your local BRP dealership

705007827

Unavailable

Tuflok Plastic Rivet

293150230

$1.21

Hex. Flange Screw M6 X 16

210261650

$1.22

Stainless Steel Flat Washer

234062670

$1.74

LH BUMPER SKID CAP - Call your local BRP dealership

705006038

Unavailable

RH BUMPER SKID CAP - Call your local BRP dealership

705006039

Unavailable

Torx Screw M6 X 20

250000712

$1.74

Hex. Flange Elastic Nut M6

233261494

$1.26

Front Skid Plate

705005798

$92.28

Pad

291001932

$8.57

Rear Skid Plate

705005480

$83.05

Rear Skid Plate

705005480

$83.05

Skid Plate

705008958

$83.05

Cup | Package Hunter

705007171

$6.18

Hexagonal Head Screw

210262050

$1.74

Panel Nut M6 X 1.0

250100198

$1.73

LH Lateral Skid Plate

705009444

$64.58

RH Lateral Skid Plate

705007038

$64.58

Flat Washer

250200097

$1.74

Hexagonal Head Screw

210262050

$1.74

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

RH Front Deflector | Model-Red

705008989

$49.97

Stainless, Torx Screw M6 X 30

250000842

$1.74

Stainless Steel Flat Washer

234062670

$1.74

Elastic Stop Nut M6

232561434

$1.55

LH Rear Deflector | Model-Red

705007637

$51.51

RH Rear Deflector | Model-Red

705007638

$51.51

Torx Screw M6 X 20

250000712

$1.74

Stainless Steel Flat Washer

234062670

$1.74

Torx Screw M6 X 25

250000758

$1.74

Stainless Steel Flat Washer

234062670

$1.74

Elastic Stop Nut M6

232561434

$1.55

Hardened Washer

706200281

$2.34

Push Nut

250100031

$6.86
