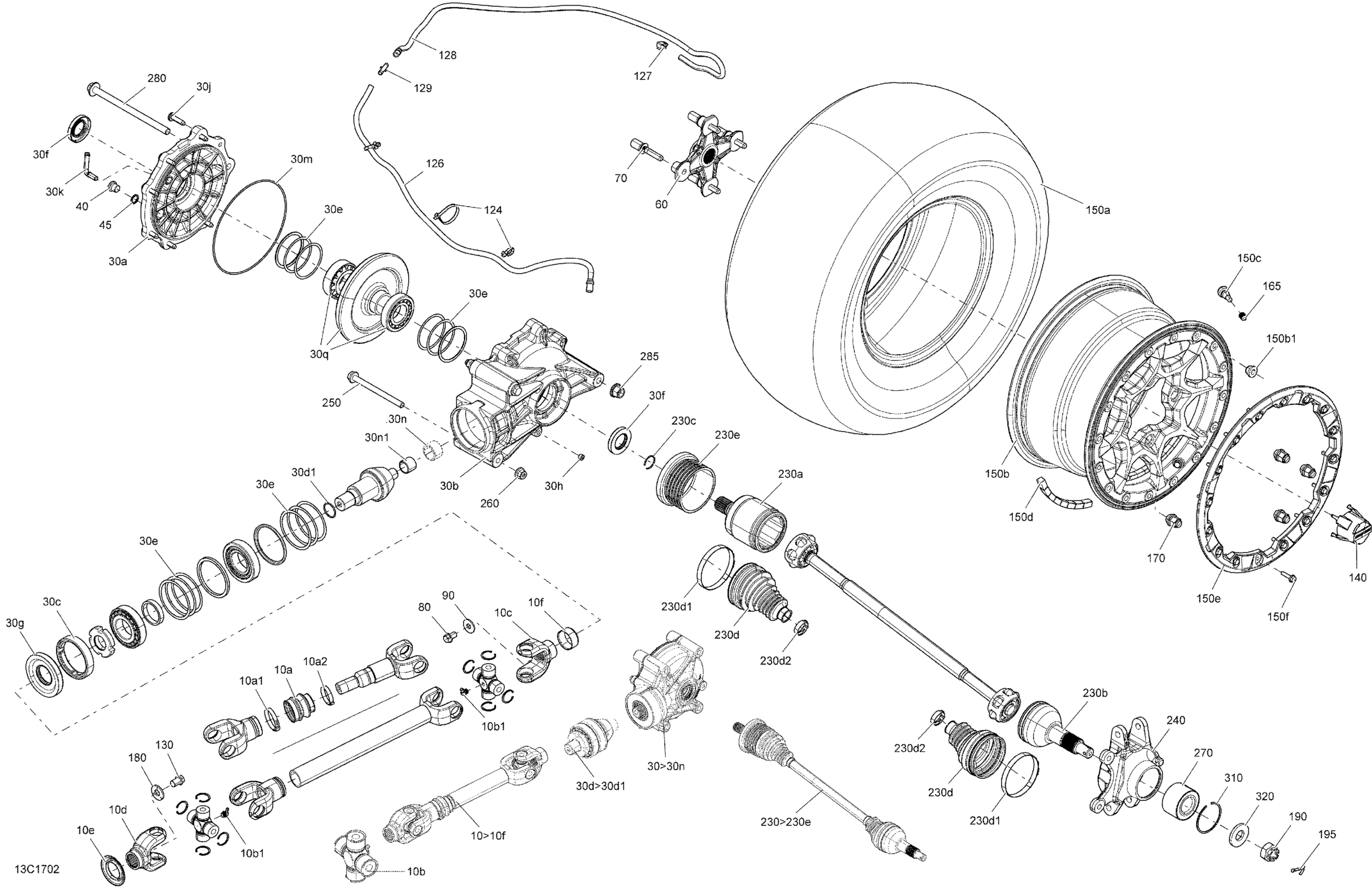

Can-Am Maverick, 2017 Drive System, Rear - All Models Diagram

Shaft Ass'y Kit | Includes 10 to 10g

703500994

$295.35

Shaft Ass'y Kit | Includes 10 to 10g

703500994

$295.35

Drive Shaft Ass'y

703500939

$253.82

Rubber Boot

715900118

$13.83

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

Oetiker Gear Clamp 36.1MM

509000045

$3.55

Universal Joint Ass'y | T3

703500846

$78.43

Grease Fitting | T3

715900295

$4.62

Joint

715900271

$23.05

Joint | T3

715900436

$23.05

Protector

705501123

$7.37

Wear Ring | 4X4

705400036

$25.35

Final Drive Unit | Includes 30 to 30m

705502275

$1,324.99

REAR COVER - Call your local BRP dealership

705502171

Unavailable

PINION COVER - Call your local BRP dealership

705502172

Unavailable

NUT - Call your local BRP dealership

705501740

Unavailable

Pinion Kit

703500867

$406.12

O-Ring

705501554

$4.62

Differential Shim Kit

703500839

$50.74

Oil Seal

705501556

$17.66

Oil Seal

705502276

$14.75

Plug Drain

705501724

$5.98

Screw

705502063

$3.08

Breather Tube

705501584

$13.86

Oil Seal

705501749

$8.45

Needle Bearing

703500840

$59.97

Needle Bearing

703500840

$59.97

Gear Kit

703500868

$406.12

Fill Level Plug | 4X4

705500504

$7.61

Copper Washer | 4X4

705500506

$0.36

Wheel Hub ( 29 Splines )

705502223

$129.20

Wheel Stud

250300060

$9.58

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

Flat Washer M10 | 4X4

250200014

$1.17

Tie-Rap 180 mm

414115200

$0.09

Dart Tie Rap 200MM

710003168

$5.72

Was 293830177 Hose

219704388

$11.06

Clip

414227300

$1.45

Polyurethane Hose 10000Mm Long

219704410

$46.12

Straight Fitting

293710039

$7.37

Hex Flange Screw M12 X 16

250001039

$1.74

Wheel Cap

705400928

$11.06

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.06

TIRE_30X9R14 - Call your local BRP dealership | XMR

705401501

Unavailable

Rear Tire | STD Model Europe

705501434

$146.89

Rear Tire 27X11X12 | X

705502938

$221.51

Rear Tire 27X11X12 | X

705502938

$221.51

Rear Tire | X Model Europe

705501818

$243.82

Rear Tire Maxxis 28X11X14 | Model-North America, International

705502603

$235.35

Front Rim | Package XMR 850, XMR 1000

705401848

$199.97

Deep Black, 12 Inch Rim X 7,5 | STD

705501853

$139.97

Rear Rim | Package-XT Int.Brush Aluminum

705502637

$199.97

Black, Rim | XXC

705502244

$139.97

Insert | XXC

293450317

$6.69

Rim Valve With Cap

705400193

$6.69

1/2 Oz Weight

219704465

$4.35

Blue Painted Reinforcement Disk | Package XXC Quarry Gray

705401695

$85.99

Hex. Flange Screw M6 X 25

250000787

$1.83

Valve Cap

293000110

$1.18

Black, Wheel Nut M10 X 1.25

250100184

$2.48

Conical Spring Washer M12

250200005

$2.65

Castle Nut M20

250100193

$6.66

Cotter Pin

250400071

$1.74

CV Joint

705502412

$233.82

CV Joint

705502414

$261.24

CV Joint

705502414

$261.24

CV Joint | Package XC -XXC

705502415

$232.74

Plunging Joint

715900433

$249.20

Plunging Joint | Except Package XDS, XDS STD

715900432

$249.20

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

Circlip

705501781

$5.38

Boot Kit

705501864

$41.51

Oetiker Clamp, 82.1 mm

715900241

$7.84

Oetiker Clamp, 27.3 mm

715900242

$7.84

HEAT DISSIPATOR - Call your local BRP dealership

705501841

Unavailable

LH Rear Knuckle

705501730

$184.58

RH Rear Knuckle

705501731

$193.82

Hex. Flange Screw M10 X 125

230602546

$6.08

Hex. Flange Elastic Nut M10

233201436

$1.74

Ball Bearing

293350150

$51.93

Hex. Flange Screw M12 X 190

230629087

Unavailable

Elastic Flange Nut M12

233221416

$2.33

Circlip

293370019

$4.98

Washer M20

250200147

$12.91
