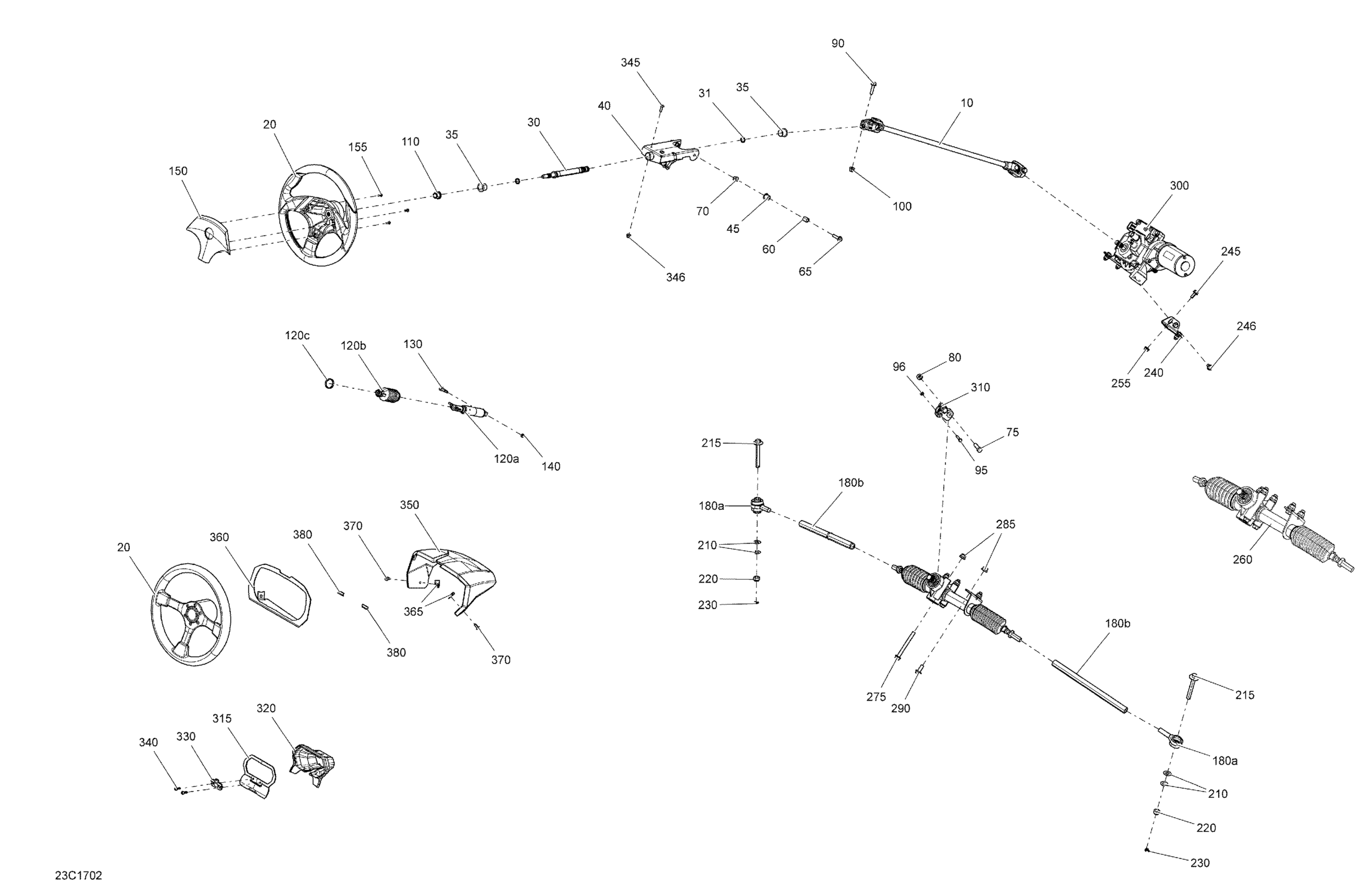

Can-Am Maverick, 2017 Steering - All Models Diagram

Steering Shaft Ass'y

709401388

$189.20

STEERING SHAFT ASS'Y - Call your local BRP dealership | Model With DPS

709401607

Unavailable

Steering Wheel | STD

709400650

$133.82

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

Unavailable

Steering Shaft

709401167

$46.12

O-Ring

293300144

$3.98

Steering Bushing

709402725

$3.17

Painted Steering Wheel Support

709401391

$83.05

Bushing

705600799

$3.72

Bushing

293900106

$4.42

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Screw M10 X 35

207103586

$0.83

Elastic Stop Nut M10

232500416

$1.56

Hex. Flange Screw M8 X 35

250000986

$1.74

Hex. Screw M6 X 30

207063044

$0.98

Elastic Stop Nut M6

232561414

$1.55

Hex. Elastic Flange Nut M8

233281416

$1.25

Hex. Flange Elastic Nut M12

233221414

$5.10

Adjustment Cylinder

709402506

$69.20

Boot Tube Side

709401232

$13.62

Tie-Rap 180 mm

414115200

$0.09

Socket Head Screw M8 X 16

250000669

$2.61

Elastic Stop Nut M6

232561414

$1.55

Steering Center | STD

709400780

$11.83

Phillips Screw K40 X 16

250000723

$0.81

Ball Joint

709401125

$50.34

Tie Rod

709401272

$27.66

Tie Rod

709401427

$32.28

Hardened Washer

706200281

$2.34

Hexagonal Screw M12 X 88

250000657

$5.19

Elastic Stop Nut M12

232521416

$1.40

Cotter Pin

211400017

$0.25

DPS Support | Model With DPS

709401612

$10.77

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

Hex. Flange Elastic Nut M8

233281414

$1.14

Rack And Pinion Steering | STD, XRS

709401325

$369.20

Rack and Pinion Steering | Package DPS - XMR -XC -XXC

709401610

$369.20

Rack and Pinion Steering | Package X-RS

709401611

$369.20

Hex. Screw M10 X 100, Scotch Grip

230500046

$6.11

Hex. Flange Elastic Nut M10

233201436

$1.74

Hex. Flange Screw M10 X 25

207602546

$1.74

Power Steering Ass'y | Package-DPS, XT, XTP

709401921

$997.49

Machined Coupling | Package-DPS, XT, XTP

709401494

$32.28

Cluster Support | STD

709400760

$23.05

Speedometer Cover

709400514

$15.35

Latch Indicator Cover

709400573

$10.98

Torx Screw Truss Head K50X20 T20

250000760

$1.74

Torx Screw M6 X 20

250000722

$1.34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Upper Cluster Cover | X, XT

707900124

$15.35

Upper Cluster Cover | X, XT

707900124

$15.35

Cluster Support | X, XT

707900013

$15.35

Cluster Support | X, XT

707900013

$15.35

Panel Nut M6 X 1.0

250100198

$1.73

Panel Nut M6 X 1.0

250100198

$1.73

Torx Truss Screw M6 X 16

250000721

$1.39

Torx Truss Screw M6 X 16

250000721

$1.39

Gasket, Neoprene 2000Mm Long

219704476

$12.64
