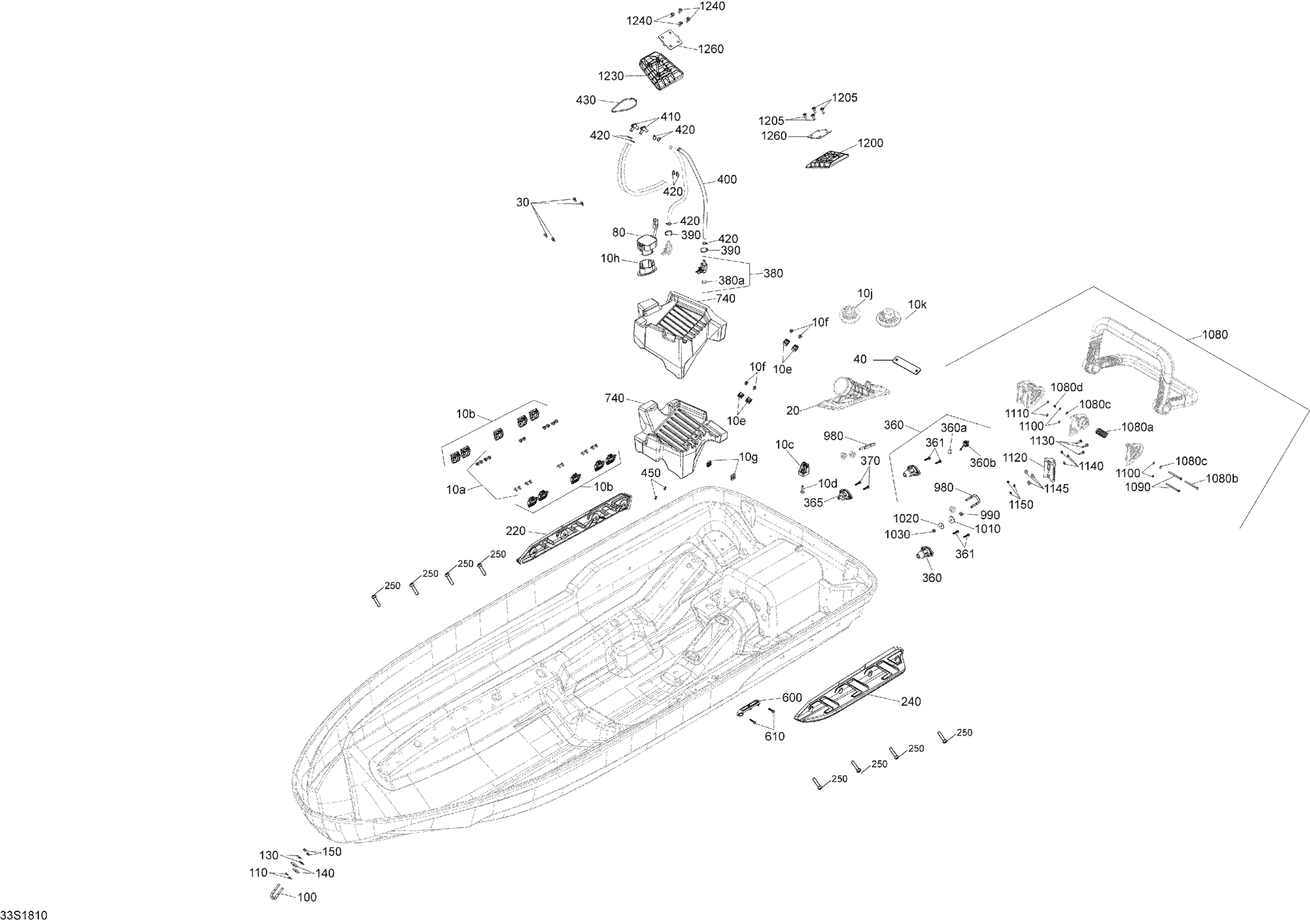

Sea-doo GTX 155, 2018 Hull GTX - 155 Diagram

#

Description
Price

10a

Pop Rivet 3/16

293150186

$1.63

10b

Strap Retaining

270000933

$5.47

10c

Strap Anchor

270000988

$8.46

10d

Hexagonal Cap Screw M6 X35

250000399

$3.61

10e

Strap Anchor

270000854

$5.30

10f

Pop Rivet 3/16

293150186

$1.63

10g

Tie-Rap Mount

293750025

$1.15

10j

Housing Nut M8 | Includes 400a1m to 400a1m1

293450387

$5.73

10k

Insert M8

293450371

$10.69

20

Through Hull Fitting

293450362

$28.57

30

Hex. Flange Screw M6.81 x 20

243162060

$3.30

40

Reinforcement

291004907

$1.86

100

U-Clamp

292000933

$32.47

110

Flat Washer M8.5 x 18

293050001

$1.29

130

Flat Washer 8 mm, Stainless

250200175

$1.29

140

Rubber Washer

293830037

$2.75

150

Hex. Elastic Nut M8 Brass

232581200

$1.29

220

RH Sponson

292001953

$53.27

240

LH Sponson

292001954

$63.67

250

Torx-Head Screw M8 X 35 This part replaces 250000572.

250000994

$4.84

360

Through Hull Fitting Ass'y | Includes 300 to 300f2

292002766

Unavailable

360a

Floating Ball

293830080

$5.56

360b

Plug Ass'y | Includes 300f to 300f2

292002022

$11.14

361

Screw Torx M6.81 X 30

250001007

$1.61

365

Drain Neck Ass'y

292002153

$11.54

370

Screw Torx M6.81 X 30

250001007

$1.61

380

Bailer Pick-up Ass'y | Includes 540 to 540c

292001636

$20.12

380a

Floating Ball

293830080

$5.56

390

Tie-Rap 180 mm

414115200

$0.09

400

Was 275500008 Hose 12 mm

219704356

$5.94

410

Fitting Elbow 90°

293710152

$14.92

420

Tie Wrap 94 mm | 4X4

293750001

$0.83

430

Tie Wrap 368 mm

293750008

$0.85

450

Avdel Rivet 3/16"

293150037

$0.47

980

U-Clamp

292000933

$32.47

990

Flat Washer M8.5 x 18

293050001

$1.29

1010

Rubber Washer

293830037

$2.75

1020

Flat Washer 8 mm, Stainless

250200175

$1.29

1030

Hex. Elastic Nut M8 Brass

232581200

$1.29

1080

Ladder Ass'y | Includes 1100a to 1100a4

295100869

$214.47

1080a

Spring

292002107

$21.42

1080b

Hex. Screw M6 x 80

207068060

$1.99

1080c

Stainless Flat Washer M6

234061600

$0.25

1080d

Hex. Elastic Stop Nut M6

232561600

$0.92

1090

Hex. Screw M6 x 80

207068060

$1.99

1100

Stainless Flat Washer M6

234061600

$0.25

1110

Elastic Stop Nut M6, Brass

232561200

$3.51

1120

Ladder Attachment

292002113

$8.29

1130

Truss Cone Torx Screw M6 X 30

250000924

$6.15

1140

Stainless Flat Washer M6

234061600

$0.25

1145

Flat Washer M6, Stainless

234062600

$0.64

1150

Elastic Stop Nut M6, Brass

232561200

$3.51

1200

LH Trim Tab

292002102

$14.27

1205

Hexagonal Cap Screw M6 X 25

250000978

$3.61

1230

RH Trim Tab

292002103

$14.27

1240

Hexagonal Cap Screw M6 X 25

250000978

$3.61

1260

Gasket

277002171

$3.48
