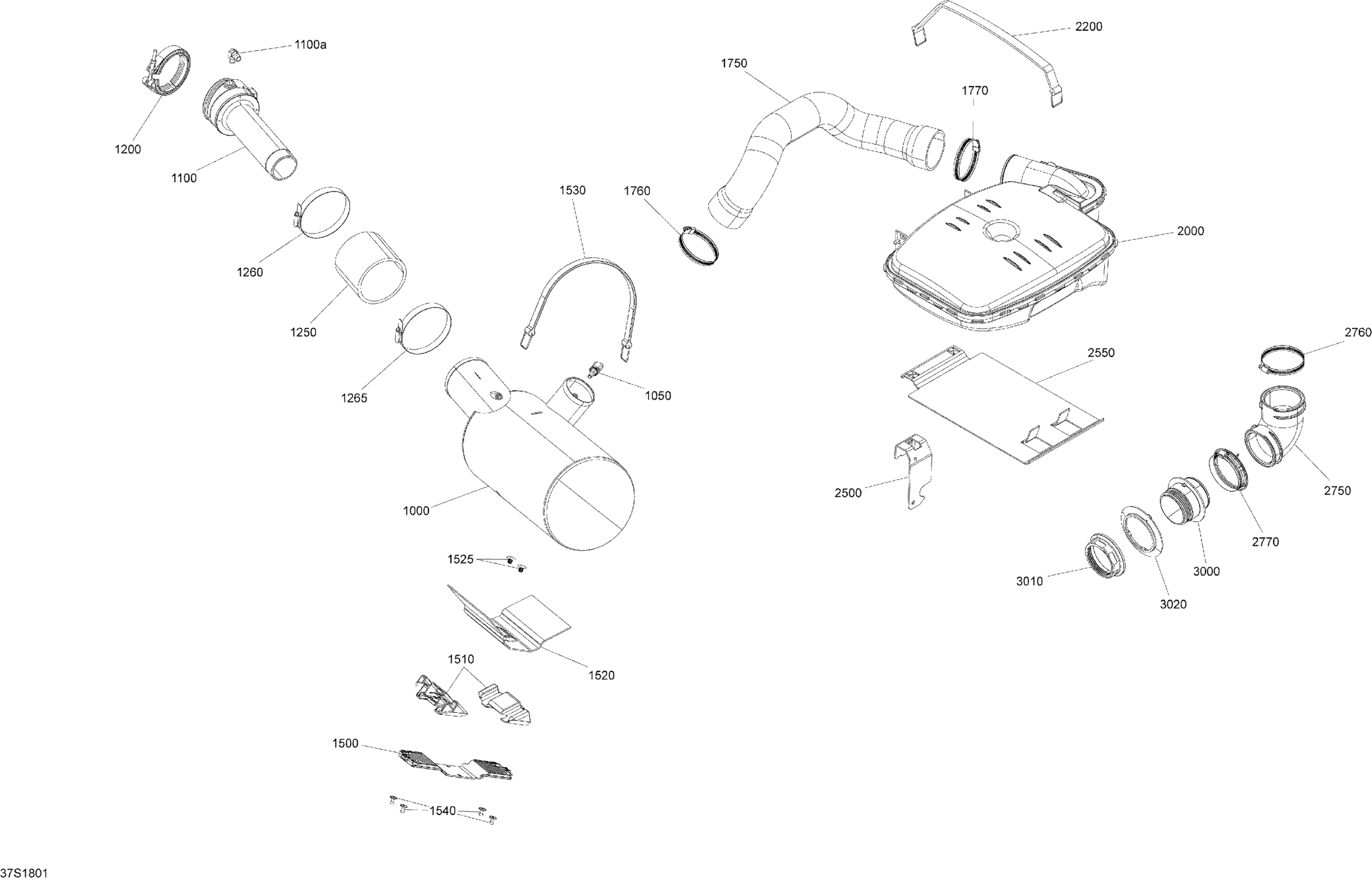

Sea-doo 1- GTX 155, 2018 01- Exhaust System - All Models Diagram

Description

Price

1000

Muffler

274001517

$529.99

1050

Temperature Sensor

278002895

$39.99

1100 > 1100b

NEEDS DESCRIPTION | Without Catalyst, Includes 3 to 4 This part replaces 274001354.

423462834

$194.99

1100a

Elbow Fitting 90° | Without Catalyst

293700023

$20.99

1200

Exhaust Clamp

274001417

$58.99

1250

Hose

274001610

$23.49

1260

Gear Clamp This part replaces 293650281.

293650202

$15.88

1265

Gear Clamp This part replaces 293650281.

293650202

$15.88

1500

Muffler Support

293450365

$17.39

1510

Stopper

274001721

$19.09

1520

Pad Rubber

293830153

$16.34

1525

Dart

414939500

$1.04

1530

Strap

293850120

$20.99

1540

Pop Rivet 3/16

293150186

$2.09

1750

Front Exhaust Hose

274001709

$80.49

1760

Tridon Gear Clamp

293650244

$9.29

1770

Tridon Gear Clamp

293650244

$9.29

2000

Resonator

274001722

$158.99

2200

Strap

293850120

$20.99

2500

Hook Retaining

292002297

$30.49

2550

Rubber Pad

293830173

$21.99

2750

Rear Exhaust Hose

274001628

$20.49

2760

Tridon Gear Clamp

293650244

$9.29

2770

Tridon Gear Clamp

293650244

$9.29

3000

Exhaust Fitting

274001659

$37.99

3010

Nut-77mm

274001541

$19.99

3020

Washer

274001587

$14.30
