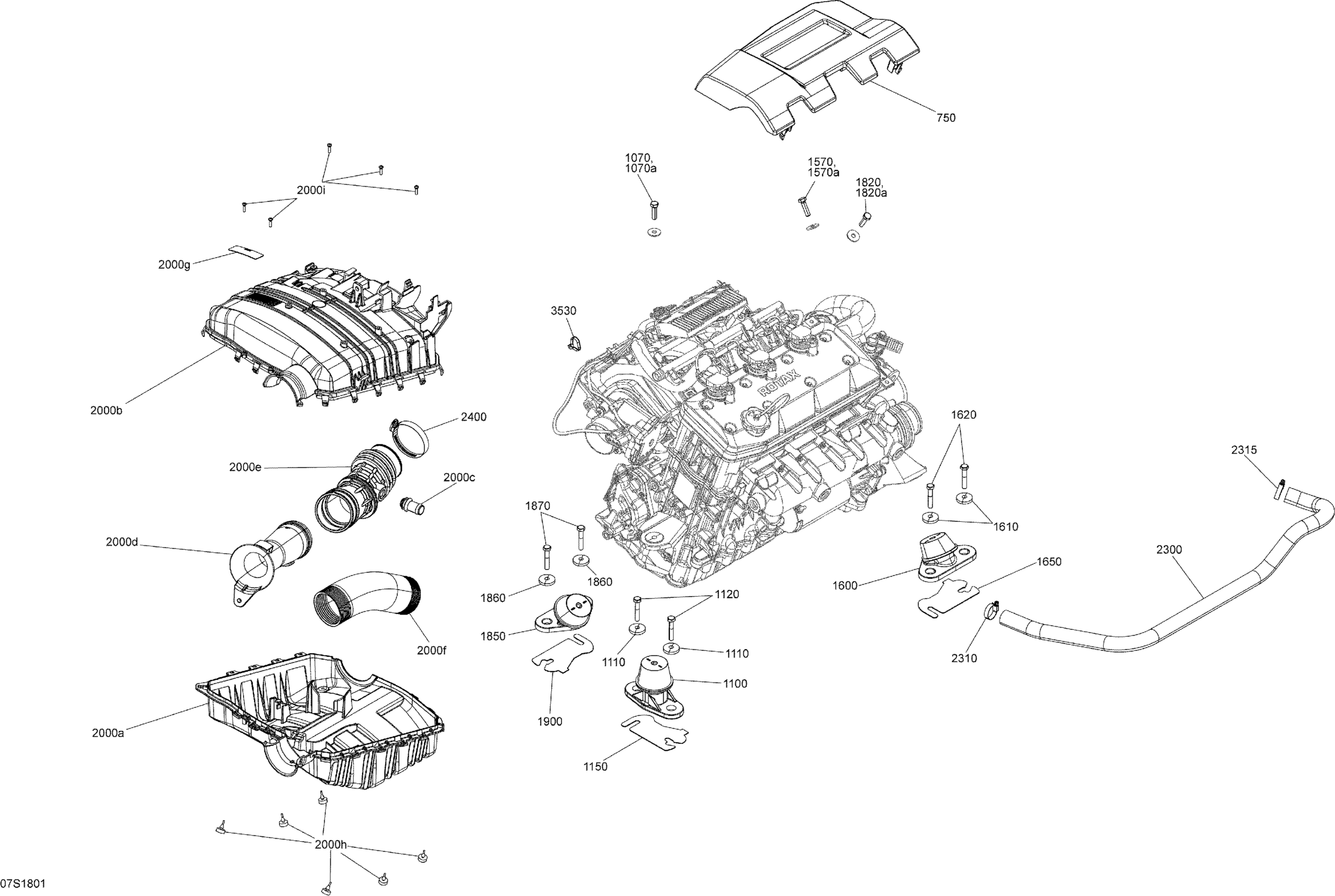

Sea-doo GTX 155, 2018 Engine 1503 NA Diagram

#

Description
Price

750

Engine Cover Ass'y | Includes 750 TO 750b

270001002

$57.82

1070 > 1070a

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1070a

Hexagonal Screw M8 X 30

250000888

$3.00

1100

Engine Support Ass'y

270001096

$77.32

1110

Cone Washer

250200018

$4.64

1120

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

1150

Shim 1.3 mm

270000762

$9.04

1570 > 1570a

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1570a

Hexagonal Screw M8 X 30

250000888

$3.00

1600

Engine Support Ass'y

270001081

$84.47

1610

Cone Washer

250200018

$4.64

1620

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

1650

Shim 1.3 mm

270000762

$9.04

1820 > 1820a

Hex Sems Screw M8 X 30 S.Grip | Includes 1070 to 1070a

250000933

$2.35

1820a

Hexagonal Screw M8 X 30

250000888

$3.00

1850

Engine Support Ass'y

270001081

$84.47

1860

Cone Washer

250200018

$4.64

1870

Hexagonal Head Cap Screw M8 X 45

250000782

$2.35

1900

Shim 1.3 mm

270000762

$9.04

2000a

Airbox Base

273000354

$51.46

2000b

Intake Silencer Cover

273000389

$67.88

2000c

Breather Valve

273000234

$10.63

2000d

Intake Hose

273000358

$20.12

2000e

Hose Connector

273000382

$44.00

2000f

Air Silencer Hose

273000290

$20.12

2000g

Air Silencer Notice Decal

219903177

Unavailable

2000h

Rubber Stopper

708000759

$3.61

2000i

Flange Torx Screw K40 X 16

250000287

$1.74

2300

Formed Hose

270000949

$37.02

2310

Tridon Gear Clamp

293650051

$3.61

2315

Tridon Gear Clamp

293650051

$3.61

2400

Tridon Clamp

293650179

$8.81

3530

Tie-Rap 180 mm

414115200

$0.09
