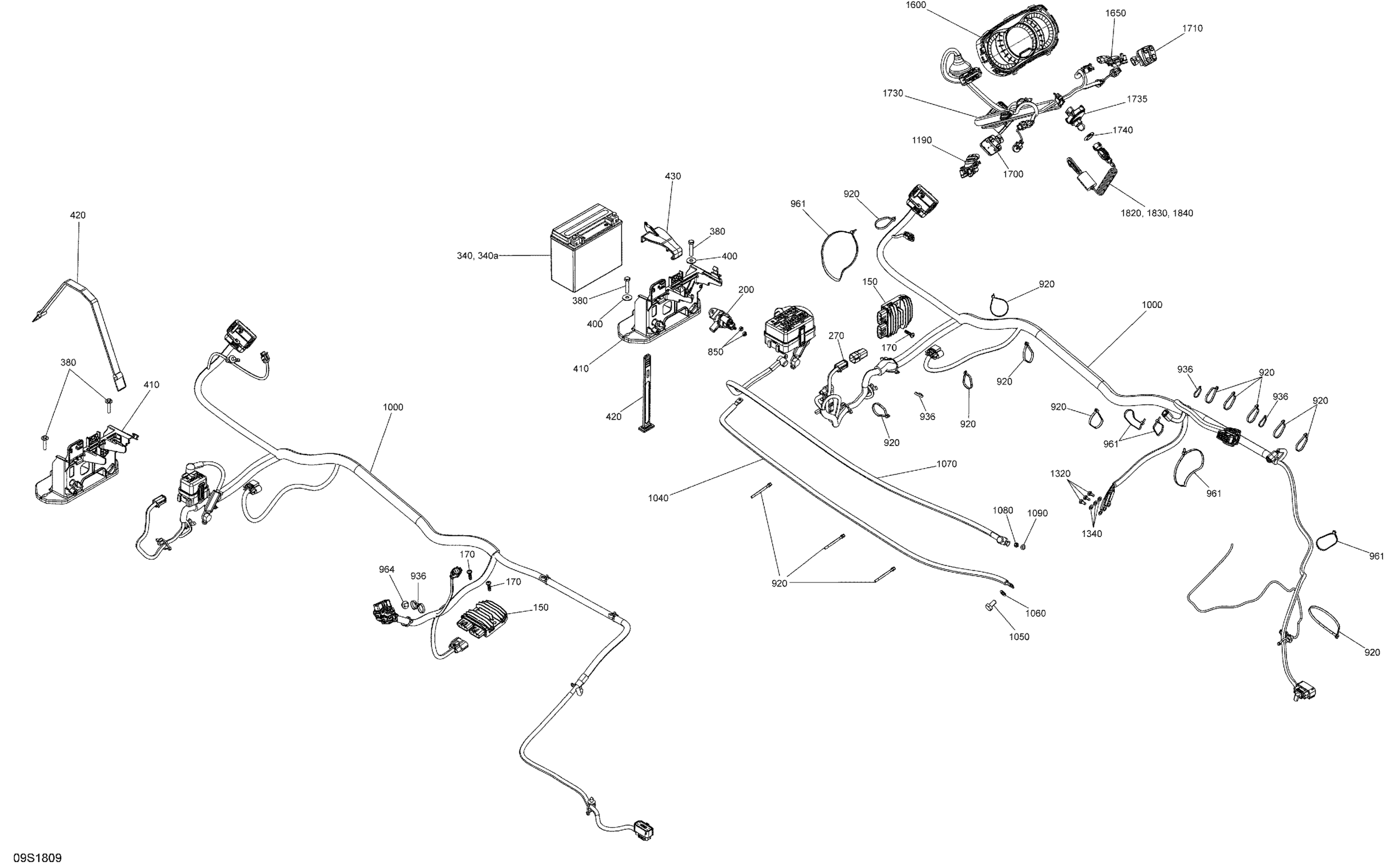

Sea-doo GTR 230, 2018 Electrical GTR - 230 Diagram

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

Hex Screw SEMS M6X35, SS

250000969

$1.74

Starter Relay

278003012

$35.07

Connector Plug

710004904

$8.30

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

Battery Bolt Kit

250000282

$2.95

Hex. Screw M8 X 40

207184060

$1.85

Flat Washer 8 mm, Stainless

234082600

$1.98

Battery Support

278003671

$22.72

Strap

269502417

$14.27

Clip

278003521

$14.27

Hose Clamp

293650257

$5.00

Flange Torx Screw K40 X 16

250000287

$1.74

Elastic Stop Nut M6, Brass

232561200

$3.51

Tie-Rap 180 mm

414115200

$0.09

Tie Rap 300mm

293750053

$1.99

Tie-Rap 180 mm

414115200

$0.09

Mount Dart

293730040

$0.86

Wiring Harness

278003385

$463.42

Battery Ground Cable

278003270

$38.03

Hex. Screw M10 X 20, Scotch Grip

207302060

$3.29

Flat Washer 10 mm, Stainless

234000600

$1.07

Cable-Starter

278003370

$35.79

Elastic Stop Nut M6, Brass

232561200

$3.51

Stainless Flat Washer M6

234061600

$0.25

LH Throttle Sensor

278002284

$108.18

Hex. Screw M6 X 12, Scotch Grip

207361260

$0.48

Stainless Flat Washer M6

234061600

$0.25

Info Gauge Center | Package STD

278003582

$807.92

LCD Gauge | Package X

278003651

$807.92

Throttle Position Sensor

278002283

$94.22

Switch LH VTS/Sport/Eco | Package STD

278002767

$101.37

Switch | Package X

278003476

$64.97

Switch RH Mode/Set

278002602

$100.72

Switch | Package X

278003604

$84.47

Steering Harness Ass'y

278003559

$271.02

Electrical Steering Harness | Package X

278003635

$271.02

Terminal Dess One-Wire | Except Model Europe

515178840

$67.57

Safety Nut (DESS Switch)

278002963

$2.72

Safety Lanyard Ass'y, RFID

278003400

$58.47

Safety Lanyard Ass'y, Learning / RFID

278003401

$58.47
