Partiron

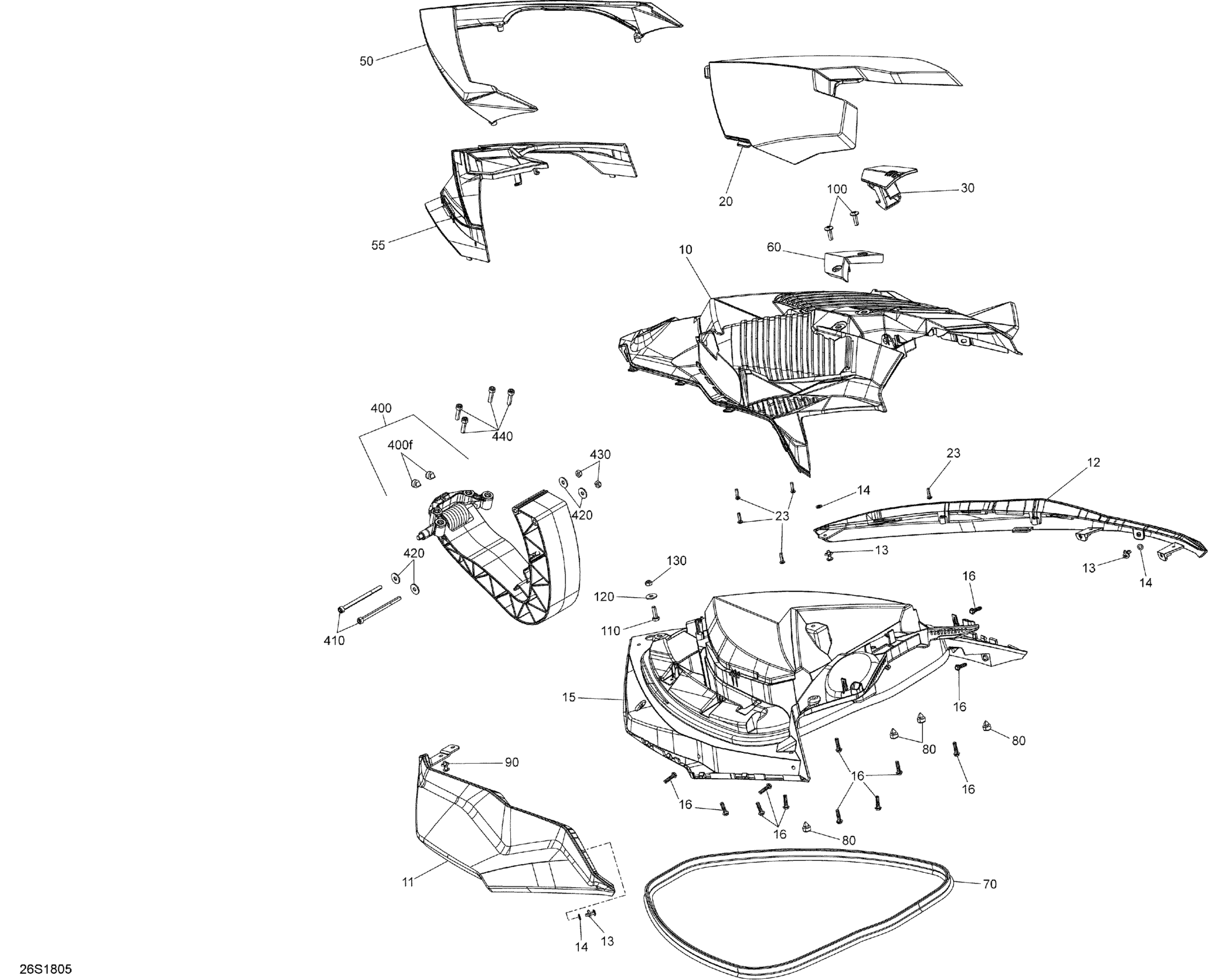

Sea-doo GTR 230, 2018 Front Cover GTR - 230 - Package X Diagram

#

Description
Price

10

Black, Central Storage Cover

269502193

$236.54

11

Deep Black, LH Storage Cover

269502328

$138.42

12

Deep Black, RH Storage Cover

269502329

$158.93

13

Avdel Rivet

293150027

$2.30

14

Flat Washer 5 mm

234051500

$0.67

15

Deep Black, Storage Cover Lower

269502196

$85.77

16

Hex. Flange Screw K50 X 20

241152060

$1.57

20

Black Tinted 45%, Deflector | Model Dragon Red

269502220

$48.07

23

Flange Torx Screw K40 X 16

250000287

$1.74

30

Deep Black, Latch Lever

269700142

$24.02

50

Deep Black, Front Cosmetic

269501869

$70.17

55

SUPPORT - Call your local BRP dealership

269502304

$70.12

60

Black, Clamp

269501941

$7.32

70

Neoprene Seal 3000Mm Long

219704371

$45.47

80

Rubber Bumper

293830005

$5.33

90

Avdel Rivet

293150027

$2.30

100

Torx-Truss M/S Stlss M6 X 20

250000829

$2.30

110

Hex. Forming Screw M6 X 20

207162060

$1.03

120

Flat Washer M6, Stainless

234062600

$0.64

130

Elastic Stop Nut M6, Brass

232561200

$3.51

400

Hinge Ass'y | Includes 400 TO 400f

269501995

$58.18

400f

Rubber Bumper

293830005

$5.33

410

Socket Head Screw M6 X 90

205069060

$1.56

420

Flat Washer M6, Stainless

234062600

$0.64

430

Elastic Stop Nut M6, Brass

232561200

$3.51

440

Socket Head Screw M6 X 25

205062560

$1.42
