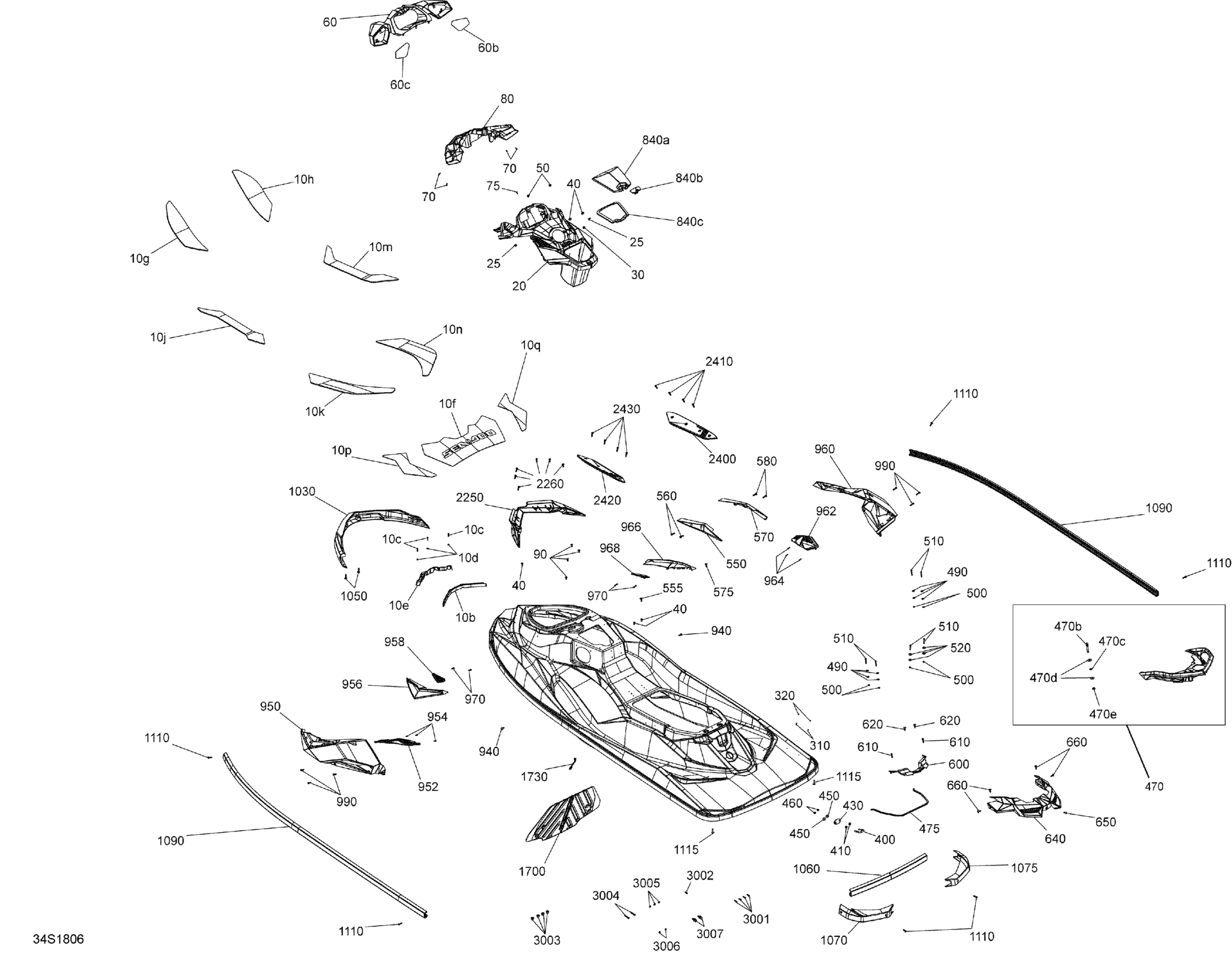

Sea-doo GTR 230, 2018 Body GTR - 230 - Package X Diagram

Deck Nose

291003897

$18.99

Flat Washer 4 mm, Stainless

234042600

$1.15

Hex. Flange Screw K40 X 25

241142560

$2.64

Platform Carpet

291003586

$71.99

Front Carpet LH

291003587

$35.99

Front Carpet RH

291003588

$35.99

Center Front Carpet LH

291003589

$46.49

Rear Center Carpet LH

291003577

$46.49

Center Front Carpet RH

291003591

$46.49

Rear Center Carpet RH

291003578

$46.49

Rear Carpet LH

291003593

$15.89

Rear Carpet RH

291003594

$15.89

Black, Console

291004654

$124.99

Deep Black, Console Cap

291004718

$16.99

Black, Dart

414644300

$0.98

Rubber Bumper

293830005

$8.09

Pop Rivet 3/16"

293150123

$4.29

Pop Rivet 3/16

293150186

$2.09

Black Bezel Ass'y | Package SE This part replaces 291004489.

291004261

$149.99

Mirror RH, With Double-Face Tape

291003090

$48.49

Mirror LH, With Double-Face Tape

291003091

$48.49

Deep Black, Mirror Support

291004271

$48.99

Rivet 1/8"

293150016

$0.40

Black, Snap Cap

293000014

$1.09

U-Clamp

292000933

$59.49

Flat Washer M8.5 x 18

293050001

$3.07

Black, Finition Plate

291001386

$10.99

Flat Washer 8 mm, Stainless

234082600

$2.43

Hex. Elastic Nut M8 Brass

232581200

$2.22

Black, Rear Handle Ass'y | Includes 470 TO 470e

291004620

$94.49

Stud Seat

291003877

$48.99

Hex. Jam Nut M10

232100600

$2.22

Flat Washer 10 mm, Stainless

234002600

$2.22

Elastic Stop Nut M10, Brass

232501200

$2.64

Gasket

292002523

$9.32

Flat Washer M6, Stainless

234062600

$0.77

Elastic Stop Nut M6, Brass

232561200

$4.23

Hex. Screw M6 X 40

207164060

$3.38

Flat Washer M6.6 X 22

250200022

$2.72

WHITE LH COSMETIC - Call your local BRP dealership

291004500

Unavailable

Black, Dart

293730006

$0.99

Screw Torx M6.81 X 30

250001007

$2.54

WHITE RH COSMETIC - Call your local BRP dealership

291004501

Unavailable

Black, Dart

293730006

$0.99

Screw Torx M6.81 X 30

250001007

$2.54

Deep Black, Vent Cover

291003372

$18.76

Screw Torx M6.81 X 30

250001007

$2.54

Black, Dart

293730006

$0.99

Deep Black, Cosmetic Rear

291004365

$52.99

Screw Torx M6.81 X 30

250001007

$2.54

Black, Dart

293730006

$0.99

Deep Black, Glove Box Door

291004579

$44.99

Black, Latch

264000164

$15.99

Urethane Seal

293250265

$17.49

Black, Dart

293730006

$0.99

Black, Side Cosmetic LH | Model Jungle Green

291004504

$248.99

Black, LH Side Grille

291003348

$27.99

Flange Torx Screw K40 X 16

250000287

$2.11

FRONT LH COSMETIC - Call your local BRP dealership

291004505

Unavailable

Deep Black, LH Front Hood Grille | Model Dragon Red

291003343

$12.99

Deep Black, RH Side Cosmetic | Model Jungle Green

291004506

$349.99

Deep Black, RH Side Grille

291003349

$27.99

Flange Torx Screw K40 X 16

250000287

$2.11

FRONT RH COSMETIC - Call your local BRP dealership

291004507

Unavailable

Deep Black, RH Front Hood Grill | Model Dragon Red

291003344

$12.99

Hex. Screw 10-14 X 7/8”

211000023

$3.59

Screw Torx M6.81 X 30

250001007

$2.54

Front Bumper This part replaces 291005401.

291004277

$76.49

Hexagonal Cap Screw M6 X35

250000399

$4.44

Black, Side Bumper

291004451

$58.49

Black, Corner Bumper This part replaces 291004152.

291004278

$33.99

Black, Corner Bumper This part replaces 291004153.

291004279

$33.99

Black, Side Bumper

291004451

$58.49

Screw Torx M6.81 X 30

250001007

$2.54

Hexagonal Cap Screw M6 X35

250000399

$4.44

Divider Ass'y

291004572

$104.99

Holding Strap

269502111

$18.49

Deflector

291004367

$75.99

Screw Torx M6.81 X 30

250001007

$2.54

Footrest

291004317

$76.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Footrest

291004319

$76.99

Plastite Screw Torx Cone HD.M6.81X3

250001194

$4.66

Flange Torx Screw K40 X 16

250000287

$2.11

Torx Screw K40 X 16 | Canada/USA

250000735

$3.91

Pop Rivet 3/16"

293150123

$4.29

Hex. Flange Screw M5 X 30

207153060

$1.99

Flat Washer | XT

211200035

$0.55

Elastic Stop Nut 5 mm

232551200

$1.47

Tuflok Plastic Rivet

293150230

$1.47
