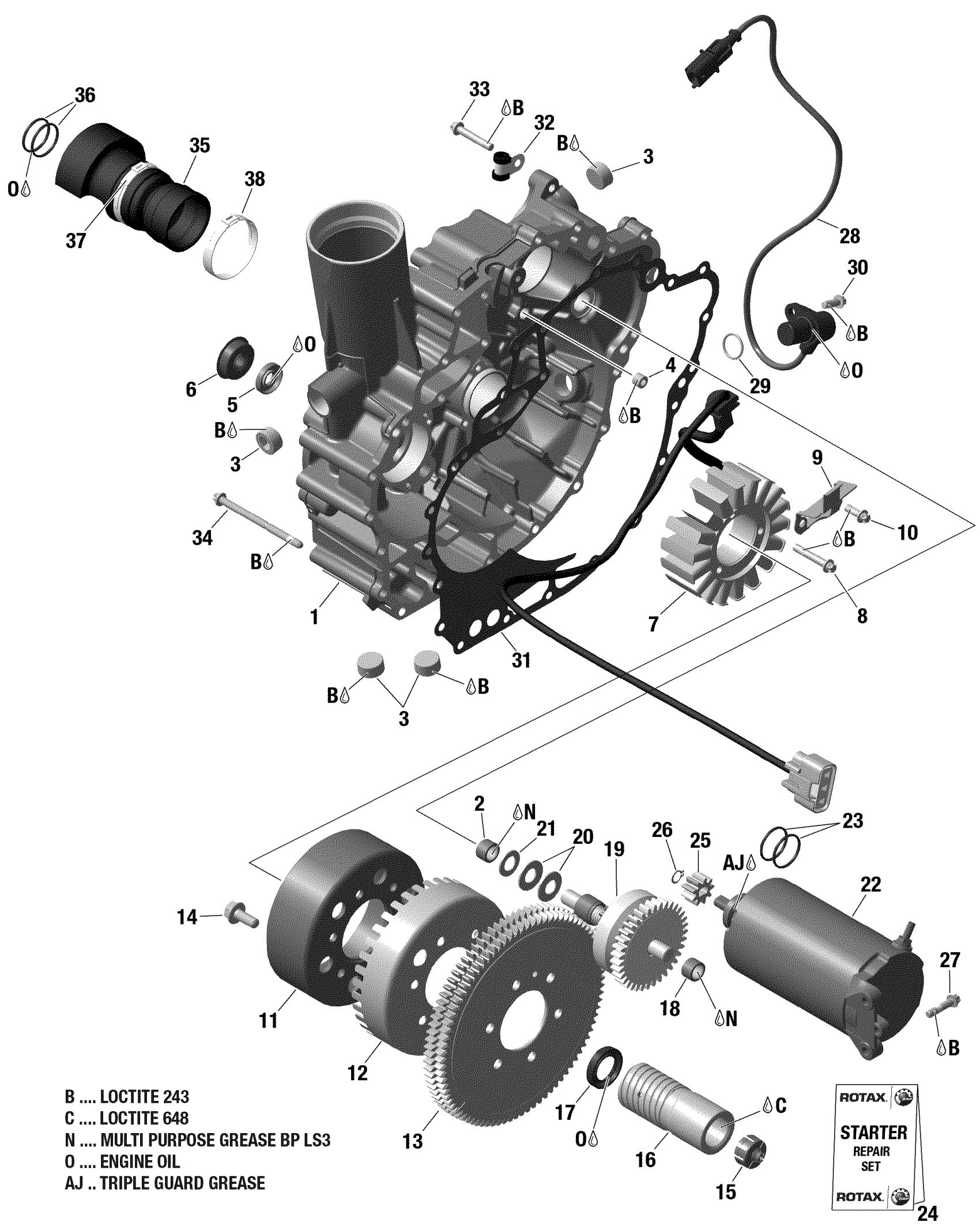

Sea-doo GTR 230, 2018 PTO Cover And Magneto Diagram

#

Description
Price

1>6

Timing/Drive Cover Ass'y | Includes 1 to 9

420912262

$695.49

2

Needle Bushing

420232482

$15.57

3

Plug Screw M20 X 1.5

420641317

$10.58

4

Plug Screw M10 X 1

420641323

$11.48

5

Oil Seal

420650315

$9.62

6

Rotary Seal

420650371

$35.72

7

Stator Plate

420889728

$278.82

8

Torx Flange Screw M6 X 35

420641258

$2.78

9

Retaining Plate

420926300

$12.97

10

Torx Flange Screw M6 X 16

420641048

$2.46

11

Magneto Flywheel

420296900

$459.52

12

Trigger Wheel

420966851

$14.92

13

Starter Double Gear 87/86T

420834871

$250.22

14

Hex Screw

295501162

$11.47

15

Stop Sleeve

420660280

$10.91

16

Output Sleeve This part replaces 420847952.

420947770

$98.12

17

Sealing Ring

420630551

$12.29

18

Needle Bushing

420232482

$15.57

19

Bendix Starter This part replaces 420889872.

420890637

$214.47

20

Spring Washer

420238300

$6.11

21

Thrust Washer

420827280

$6.88

22>23

Electric Starter Ass'y | Includes no. 20-21

420888995

$232.02

23

O-Ring

420631310

$3.61

24

Carbon Brush Set

420881340

$52.62

25

Starter Gear, 9 Teeth

420834522

$59.77

26

Retaining Ring

420845601

$3.73

27

Torx Flange Screw M6 X 25

420641238

$2.68

28>29

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

29

O-Ring

420431580

$12.29

30

Torx Flange Screw M6 X 16

420641048

$2.46

31

Timing Drive Cover Gasket (1603 NA) | Included in gasket kit

420931130

$19.47

32

Clamp

420853414

$14.92

33

Torx Flange Screw M6 X 35

420641258

$2.78

34

Torx Flange Screw M6 X 85

420641228

$6.11

35>37

Ball Bearing With Bellows Ass'y | Includes 50 to 52

420832648

$114.37

36

O-Ring

420631612

$3.52

37

Gear Clamp 46.8-50.0MM

420853023

$6.11

38

Gear Clamp

420851653

$6.11
