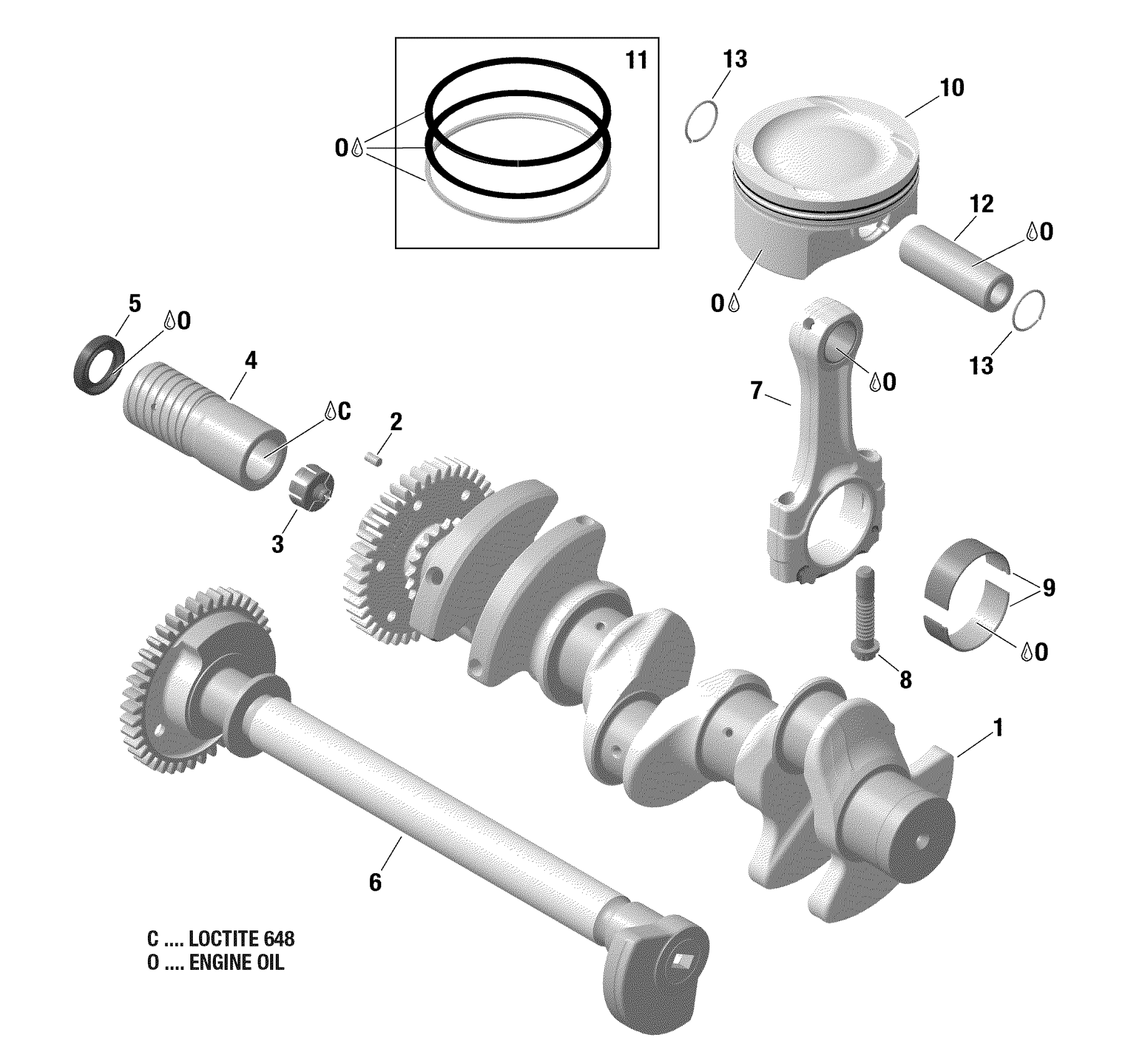

Sea-doo GTR 230, 2018 Crankshaft, Pistons And Balance Shaft Diagram

#

Description

Price

1>2

Crankshaft Ass'y | Includes 1 to 2

420819348

$949.99

1

Crankshaft Ass'Y This part replaces 421000671.

420819341

$1.00

2

Drive Pin 5 X 10

420929650

$1.68

3

Stop Sleeve

420660280

$14.75

4

Output Sleeve This part replaces 420847952.

420947770

$121.99

5

Sealing Ring

420630551

$14.83

6

Balance Shaft Ass'Y This part replaces 420837556.

420837559

$614.49

7>9

Connecting Rod Ass'y | Includes 12 to 14 This part replaces 420917516.

420917516

Unavailable

8

Connecting rod Screw M10 X 1

420640991

$11.63

9

Half-Bearing

420933523

$19.19

10>11

Piston Ass'y, Standard, 99.94 mm

420892735

$250.49

11

Piston Set Ring, Standard

420890385

$66.99

12

Piston Pin

420216250

$23.99

13

Circlip

420845580

$2.64
