05- Reverse

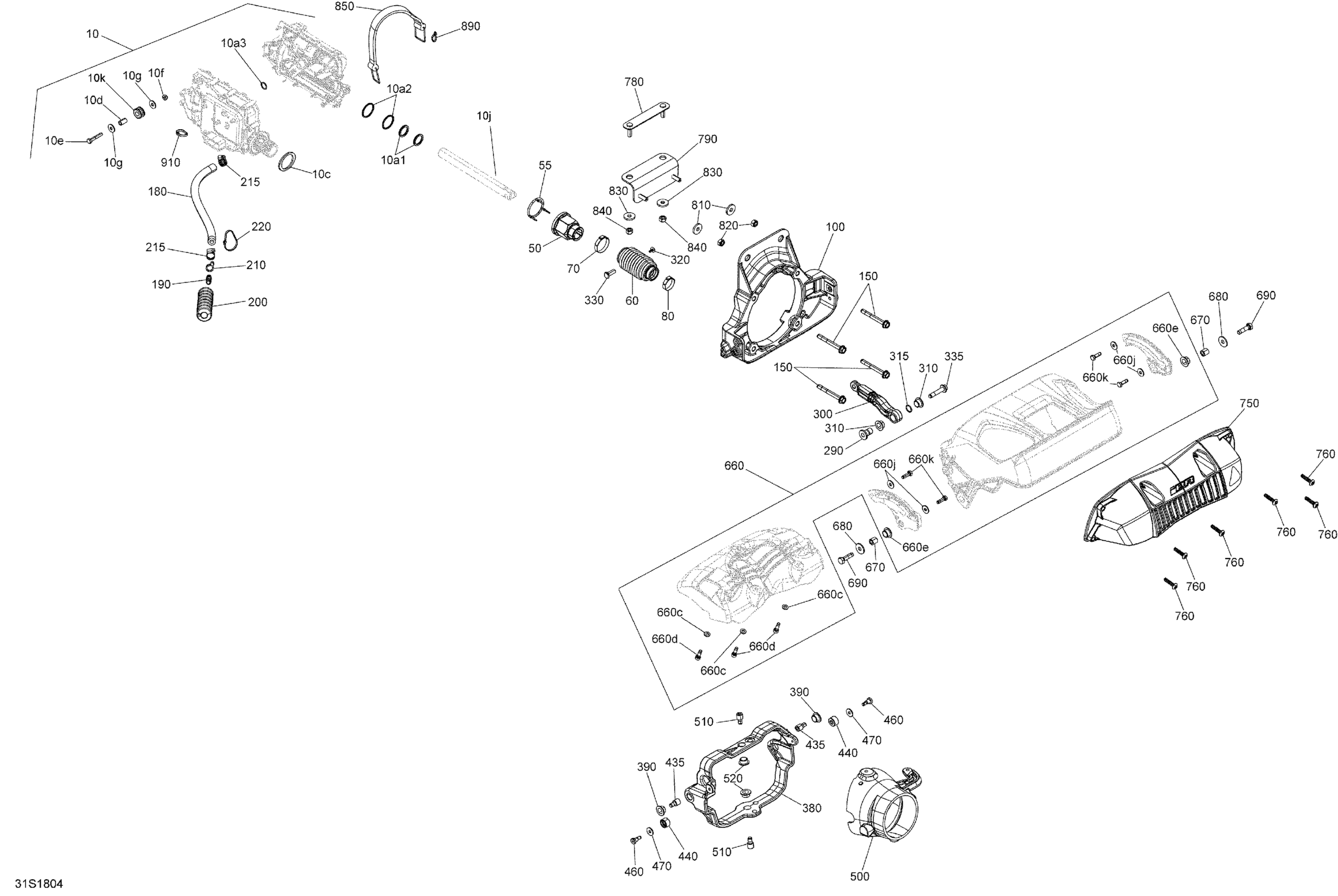

Sea-doo 1- GTI 90, 2018 05- Reverse Diagram
#
10
Actuator | Includes 10 to 10j
278003606
$829.99
10a1
O-Ring
279000108
$6.03
10a2
O-Ring
293300107
$1.01
10a3
O-Ring
293300187
$4.89
10c
Gasket
268000208
$15.37
10d
Spacer
271001020
$12.99
10e
Hex. Screw M6 X 35
207063560
$2.22
10f
Elastic Stop Nut M6, Brass
232561200
$4.23
10g
Flat Washer M6, Stainless
234062600
$0.77
10j
Output Shaft
278003027
$54.99
10k
Grommet
293720104
$5.29
50
IBR Nut
268000308
$12.59
55
Rubber Gasket
277001977
$2.61
60
Boot
268000186
$27.49
70
Oetiker Gear Clamp, 36.5-706R
509000529
$9.95
80
Crimp Clamp
293650099
$4.29
100
Bracket
268000266
$91.99
150
Screw-Hex.Flange DIN.6921 S.Grip
250000835
$3.91
180
Was 509000407 Hose 8 mm
219704420
$50.99
190
Fitting-Straig
293710157
$8.29
200
Inner Boot This part replaces 268000345.
268000211
$12.06
210
Tie Wrap 142 mm
293750002
$1.25
215
Tridon Gear Clamp
293650171
$3.09
220
Tie Wrap 142 mm
293750002
$1.25
290
Bushing
268000269
$16.87
300
Linkage Arm
268000256
$22.49
315
O-Ring
293300187
$4.89
310
Venturi Bushing
293900007
$5.45
335
Hex. Flange Screw Din.6921 S.Grip
250000963
$3.91
320
Hexalob Screw M4 X 10
250000565
$2.11
330
Shoulder Pin
268000309
$19.99
380
Trimming Ring
268000247
$95.99
390
Venturi Bushing
293900007
$5.45
435
Screw Socket S.Grip
250000837
$9.09
440
Roller Bushing Kit | Includes 240 to 240b
295501160
$4.29
460
Screw-Socket Shoulder M8X8
250000775
$8.29
470
Flat Washer M6, Stainless
234062600
$0.77
500
Black Jet Pump Nozzle
267000732
$99.99
510
Screw Socket S.Grip
250000837
$9.09
520
Venturi Bushing
293900007
$5.45
660
Gate Reverse Ass'y | Includes 280 TO 280i
268000296
$129.99
660c
Stainless Flat Washer M6
234061600
$0.33
660d
Socket Head Screw M6 X 20, Scotch Grip
205562060
$0.76
660e
Venturi Bushing
293900007
$5.45
660j
Flat Washer M6, Stainless
234062600
$0.77
660k
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
670
Spacer
271001039
$16.49
680
Flat Washer 8 mm, Stainless
234082600
$2.43
690
Hex. Screw M8 X 30, Scotch Grip
250000526
$0.77
750
Guard
268000162
$29.99
760
Screw Torx M6.81 X 30
250001007
$2.54
780
Ass'y Bracket
268000271
$11.49
790
Reverse Bracket
268000304
$18.99
810
Flat Washer
279000336
$11.57
820
Hex. Elastic Nut M8 Brass
232581200
$2.22
830
Flat Washer
279000336
$11.57
840
Hex. Elastic Nut M8 Brass
232581200
$2.22
850
Fuel Tank Strap
293850095
$19.99
890
Tie Wrap 94 mm | 4X4
293750001
$1.03
910
Tie Wrap 142 mm
293750002
$1.25
