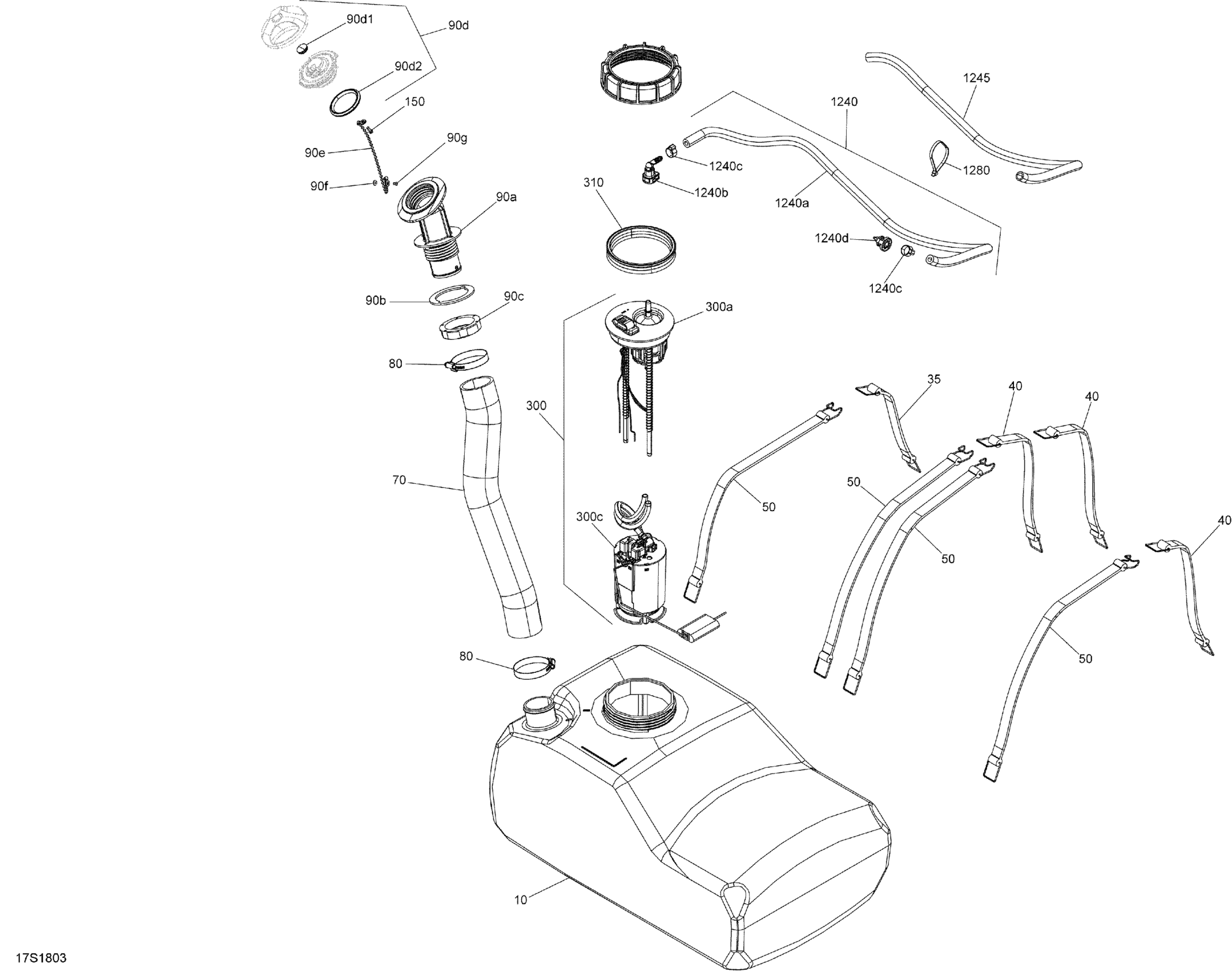

Sea-doo GTI 90, 2018 Fuel Diagram

#

Description
Price

10

Fuel Tank

275500962

$279.47

35

Fuel Tank Strap

293850087

$16.39

40

Fuel Tank Strap

293850093

$16.87

50

Fuel Tank Strap

293850101

$13.62

70

Hose

275500918

$74.60

80

Norma Clamp

293650081

$9.87

90a

Filler Neck

275500845

$36.54

90b

Gasket

293250029

$12.06

90c

Filler Neck Nut, Fuel

211100012

$11.51

90d

Fuel Cap Ass'y | Includes 90b to 90b8

275500975

$48.07

90d1

Black, Snap Cap

293000034

$7.48

90d2

Gasket

293250417

$3.17

90e

Fuel Cap Chain

275500972

$15.64

90f

Flat Washer M3, Stainless

234032600

$0.52

90j

Pop Rivet 1/8"

390407900

$1.17

150

Screw K40 X 10

241140060

$1.25

300

Pump Fuel Ass'y | Includes 300 to 300b

275500996

$371.77

300a

Sensor Lever

275500780

$176.12

300c

Fuel Filter

270600113

$27.27

310

Gasket

293250173

$15.57

1240a

Hose I.D. 7.9Mm 3000Mm Long

219704359

$305.94

1240b

Quick Disconnect

275500921

$12.61

1240c

Crimp Clamp

293650053

$2.42

1240d

Elbow Fitting 90°

293710105

$10.58

1245

Tubing 16 Mm 1000Mm Long

219704408

$6.23

1260

Tie Wrap 368 mm

293750008

$0.85
