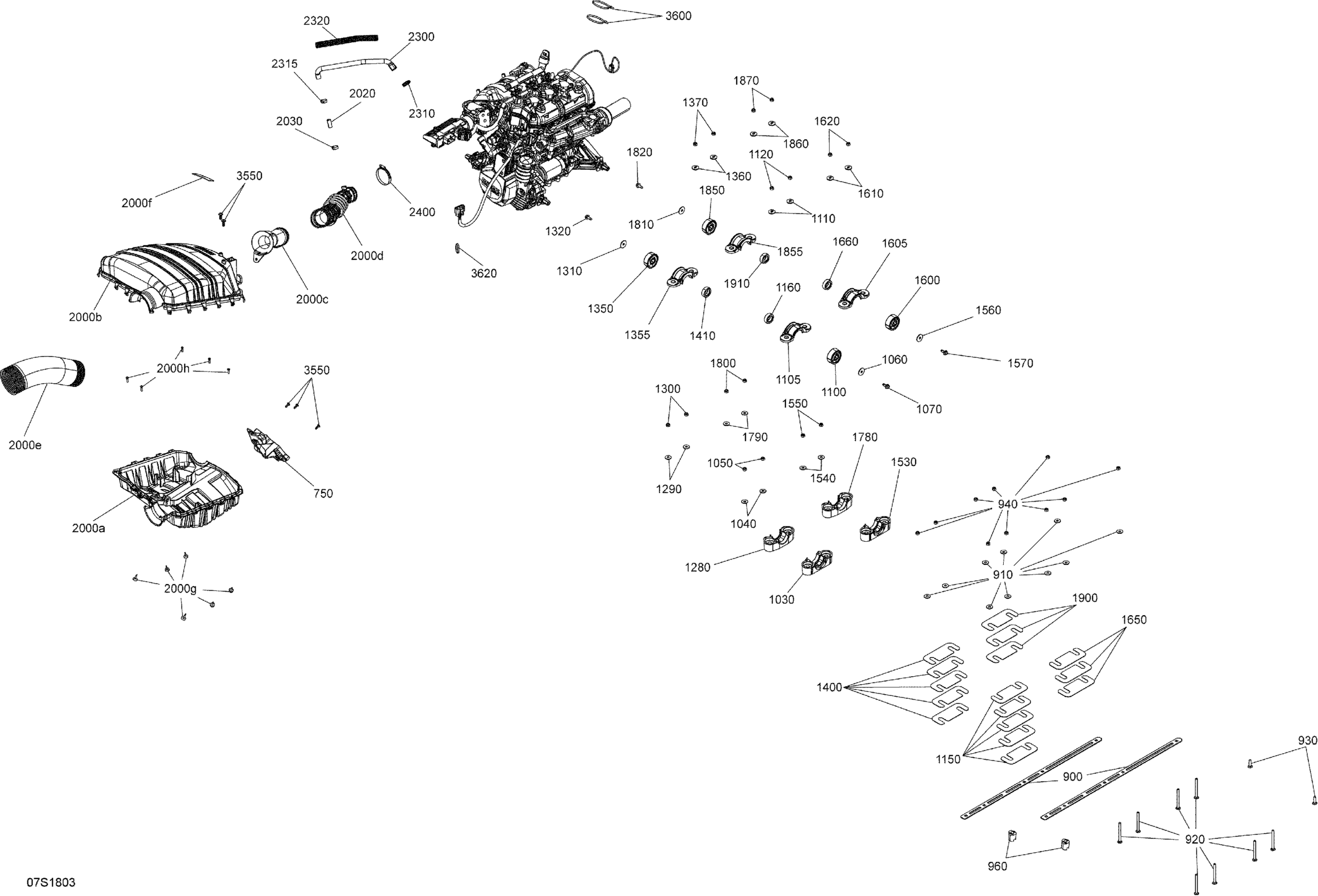

Sea-doo GTI 90, 2018 Engine 900HO ACE Diagram

#

Description
Price

750

Support

270001023

$14.75

920

Carriage Bolt M8 X 90

207789060

$6.69

940

Push Nut

270001008

$0.95

960

Spacer

270001025

$13.75

1030

Mount Base

270000978

$21.99

1040

Flat Washer 8 mm, Stainless

234082600

$2.43

1050

Hex. Elastic Nut M8 Brass

232581200

$2.22

1060

Flat Washer 8 mm

250200130

$3.17

1070

Forming Hex Screw M8 X 20

250000645

$6.77

1100

Rubber Mount

270000852

$22.49

1105

Mount Clamp

270000859

$20.99

1110

Conical Washer

250200137

$4.86

1120

Hex. Elastic Nut M8 Brass

232581200

$2.22

1150

Shim 1.3 mm

270000865

$10.49

1160

Rubber Stopper

270000863

$8.36

1280

Mount Base

270000978

$21.99

1290

Flat Washer 8 mm, Stainless

234082600

$2.43

1300

Hex. Elastic Nut M8 Brass

232581200

$2.22

1310

Flat Washer 8 mm

250200130

$3.17

1320

Forming Hex Screw M8 X 20

250000645

$6.77

1350

Rubber Mount

270000852

$22.49

1355

Mount Clamp

270000859

$20.99

1360

Conical Washer

250200137

$4.86

1370

Hex. Elastic Nut M8 Brass

232581200

$2.22

1400

Shim 1.3 mm

270000865

$10.49

1410

Rubber Stopper

270000863

$8.36

1530

Mount Base

270000978

$21.99

1540

Flat Washer 8 mm, Stainless

234082600

$2.43

1550

Hex. Elastic Nut M8 Brass

232581200

$2.22

1560

Flat Washer 8 mm

250200130

$3.17

1570

Forming Hex Screw M8 X 20

250000645

$6.77

1600

Rubber Mount

270000852

$22.49

1605

Mount Clamp

270000859

$20.99

1610

Conical Washer

250200137

$4.86

1620

Hex. Elastic Nut M8 Brass

232581200

$2.22

1650

Shim 1.3 mm

270000865

$10.49

1660

Rubber Stopper

270000863

$8.36

1780

Mount Base

270000978

$21.99

1790

Flat Washer 8 mm, Stainless

234082600

$2.43

1800

Hex. Elastic Nut M8 Brass

232581200

$2.22

1810

Flat Washer 8 mm

250200130

$3.17

1820

Forming Hex Screw M8 X 20

250000645

$6.77

1850

Rubber Mount

270000852

$22.49

1855

Mount Clamp

270000859

$20.99

1860

Conical Washer

250200137

$4.86

1870

Hex. Elastic Nut M8 Brass

232581200

$2.22

1900

Shim 1.3 mm

270000865

$10.49

1910

Rubber Stopper

270000863

$8.36

2000a

Airbox Base

273000354

$57.99

2000b

Airbox Cover

273000371

$73.99

2000c

Intake Hose

273000358

$22.49

2000d

Hose

273000364

$68.99

2000e

Air Silencer Hose

273000290

$22.49

2000f

Air Silencer Notice Decal

219903177

Unavailable

2000g

Rubber Stopper

708000759

$4.19

2000h

Flange Torx Screw K40 X 16

250000287

$2.11

2020

Fitting

270001007

$11.12

2030

Oetiker Clamp

293650011

$3.09

2300

Formed Hose

270000947

$46.99

2310

Tridon Gear Clamp

293650172

$3.09

2315

Oetiker Clamp

293650011

$3.09

2320

Tubing 16 Mm 1000Mm Long

219704408

$7.49

2400

Norma Clamp

293650079

$11.60

3550

Torx Flange Screw M6 X 16

420641588

$2.11

3610

Tie Wrap 142 mm

293750002

$1.25

3640

Tie-Rap 180 mm

414115200

$0.11

3650

Tie-Rap 180 mm

414115200

$0.11
