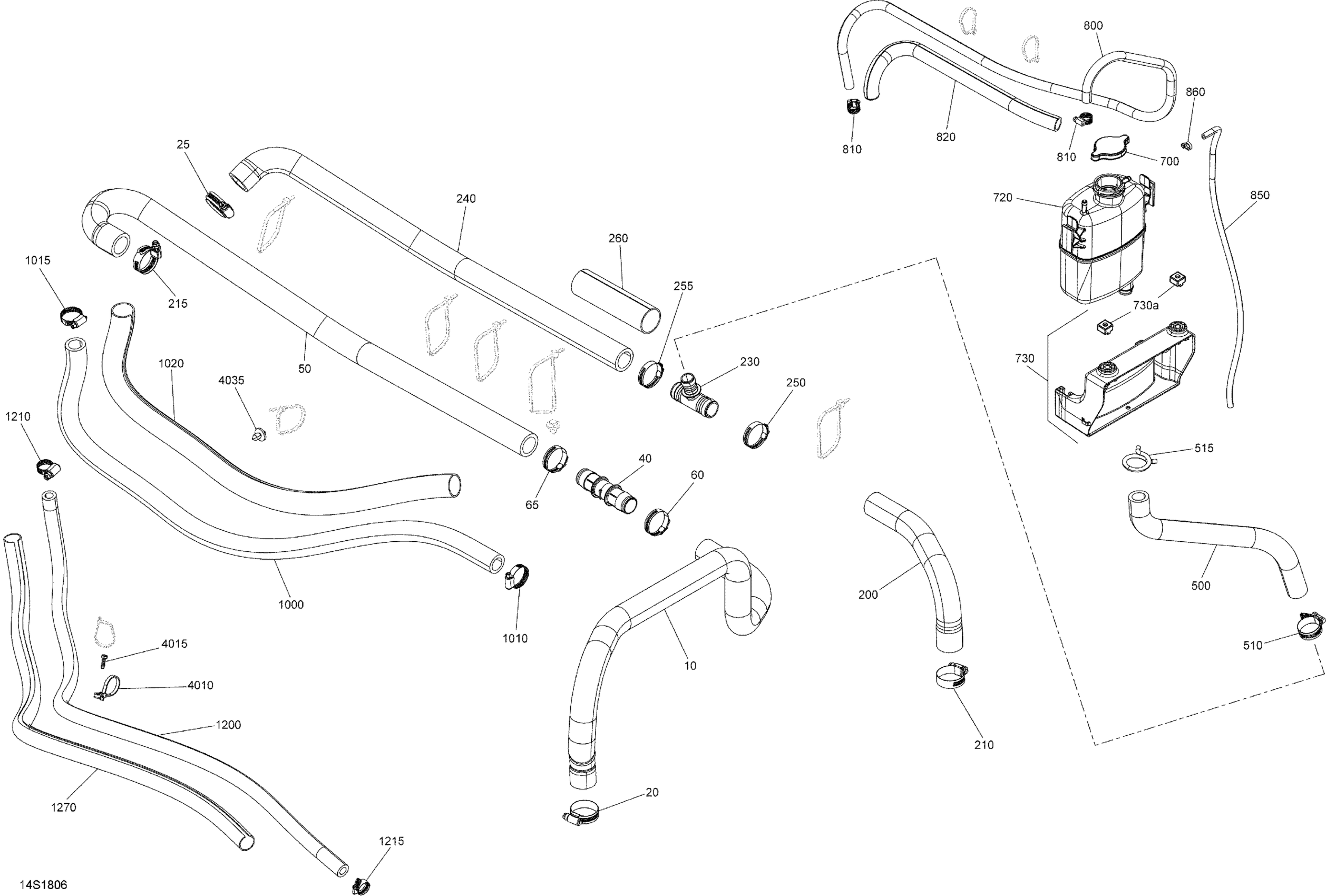

Sea-doo GTI 90, 2018 Cooling 900 HO ACE Diagram

#

Description
Price

10

Radiator Hose This part replaces 276000458.

276000414

$61.16

20

Norma Clamp

293650245

$11.77

25

Norma Clamp

293650245

$11.77

40

Fitting

509000914

$6.75

50

Formed Hose

276000403

$61.16

60

Tridon Gear Clamp

293650185

$10.91

65

Tridon Gear Clamp

293650185

$10.91

200

Formed Hose

276000404

$61.16

210

Norma Clamp

293650245

$11.77

215

Norma Clamp

293650245

$11.77

230

T-Fitting

509000372

$7.87

240

Formed Hose This part replaces 276000401.

276000452

$23.85

250

Tridon Gear Clamp

293650185

$10.91

255

Tridon Gear Clamp

293650185

$10.91

260

Tubing 35 MM 1000MM Long

219704428

$8.57

500

Formed Hose

276000402

$57.43

510

Tridon Gear Clamp

293650019

$4.81

515

Spring Clamp

293650115

$2.46

700

Coolant Tank

276000086

$87.72

720

Pressure Cap | Includes 720 to 720a

276000100

$20.77

730

Tank Holder Ass'y | Includes 730 TO 730a

291004446

$25.34

730a

Housing Nut M6 | Included 550f to 550f2

269502408

$4.42

800

Was 276000394 Hose 6.4 mm | Includes 337 to 337a

219704362

$11.48

810

Tridon Gear Clamp

293650170

$1.74

815

Tridon Gear Clamp

293650170

$1.74

820

Tubing 16 Mm 1000Mm Long

219704408

$6.23

850

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

1000

Hose 19.0Mm. 2000Mm Long

219704361

$46.99

1010

Tridon Gear Clamp

293650051

$3.61

1015

Tridon Gear Clamp

293650051

$3.61

1020

Tubing 25 MM 1000MM Long

219704402

$12.69

1200

Was 276000001 Hose 12.5 mm

219704394

$42.87

1210

Tridon Gear Clamp

293650172

$2.68

1215

Tridon Gear Clamp

293650172

$2.68

1220

Was 515175319 Tubing 22 mm

219704423

$11.84

1270

Was 515175319 Tubing 22 mm

219704423

$11.84

4035

Mount Dart

293730040

$0.86

4067

Mount Dart

293730040

$0.86
