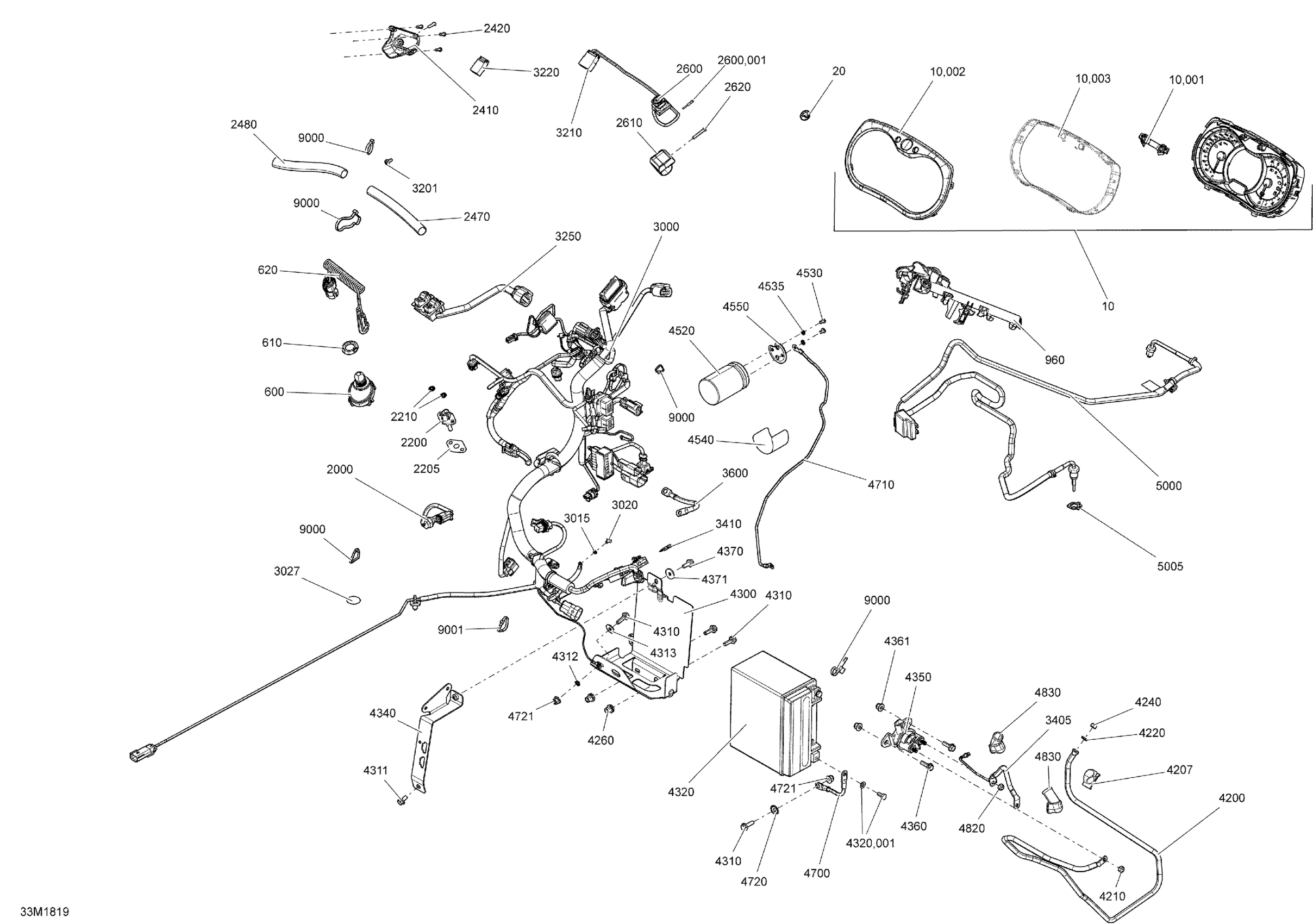

Ski-Doo 1- GRAND TOURING 600HO E-TEC, 2018 10- Electrical System Grand Touring - 600 HO E-TEC - Package LE Diagram

#

Description
Price

10

Speedometer | Includes 10 to 10c

515177910

$659.99

10.001

Speedometer Button | XTP

415129355

$15.80

10.002

Gauge Ring

415129348

$13.99

10.003

Lens | XTP

415129349

$24.49

20

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

600

Terminal Dess One-Wire | Except Model Europe

515178840

$83.49

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

800

Visor Harness

515177837

$33.99

810

Cap

572103300

$10.49

960

Connector Plate

515177134

$17.30

1000

DC Outlet

710001248

$37.99

1010

12 Volts Outlet Harness

515177400

$33.99

2000

Temperature Sensor This part replaces 420664508.

420664509

$149.99

2200

Air Temperature Sensor

515176366

$19.99

2205

Seal

508000769

$6.39

2210

Push Nut

389804300

$0.53

2400

LH Switch Housing

515178197

$264.99

2410

Housing Plate

515177147

$20.99

2420

Torx Screw

250000671

$1.01

2470

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

2480

PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership

219704418

Unavailable

2600

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

2600.001

Male Terminal

515175232

$1.58

2610

Emergency Stop Switch Support

515177310

$9.19

2620

Torx Screw #8-18

250000263

$1.04

3000

WIRING HARNESS ASSY - Call your local BRP dealership

515177987

Unavailable

3015

Lock Washer 4 mm

234141601

$1.15

3020

Screw-Torx Button Head M4 X 8

250000741

$1.15

3201

Pan Screw Forming, 7500C

250000690

$2.11

3210

Male Terminal Housing, 6 Circuits

515175662

$8.79

3220

Male Terminal Housing, 4 Circuits

515175846

$8.79

3405

Fuse Battery Wire

515177576

$16.63

3410

Fuse, 25 Amperes

278001443

$3.28

3600

Ground Wire

515177289

$26.99

4200

Battery/Starter Wire

515177208

$30.99

4207

Clip

515177066

$4.29

4210

Elastic Stop Nut M6

232561414

$0.55

4220

Flat Washer 6 mm

234061410

$1.36

4240

Elastic Stop Nut M6

232561414

$0.55

4260

Insert

293450275

$12.99

4300

Battery Support

515177264

$31.99

4310

Hex. Flange Screw M6 X 20

207662044

$2.00

4310

Hex. Flange Screw M6 X 20

207662044

$2.00

4311

Hex. Flange Screw M6 X 12

207661244

$2.11

4312

External Serrated Lock Washer 6 mm

234461608

$1.15

4313

Flat Washer

250200082

$0.42

4320

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$154.99

4320.001

Battery Bolt Kit

250000282

$7.29

4340

Battery Strip

515177266

$19.99

4350

Starter Relay

278003012

$42.49

4360

Hex. Flange Screw M6 X 20

207662044

$2.00

4361

Elastic Flange Nut M6 X 1.0

233261416

$2.11

4370

Hex. Flange Screw M6 X 16

207661644

$0.74

4371

Flat Washer

224061201

$1.37

4520

Capacitor

515177272

$90.99

4530

Socket Head Screw M10 X 32

250000462

$2.11

4535

Lock washer | Quest XT 650.

250200026

$1.90

4540

Capacitor Decal

516008593

$1.19

4550

Cap

515177193

$4.69

4700

Ground Wire

515176358

$27.99

4710

Ground Wire

515178052

$27.99

4720

Lock Washer Serrated M6

250200041

$1.15

4721

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4721

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

4820

Elastic Stop Nut M6

232561414

$0.55

4830

Protector Cap

710000495

$10.99

6000

Extension

515175851

$11.12

9000

Tie Wrap 142 mm

293750002

$1.25

9000

Tie-Rap 180 mm

414115200

$0.11

9000

Tie Wrap 368 mm

293750008

$1.04

9000

Tie Wrap 94 mm | 4X4

293750001

$1.03

9000

Tie-Rap 173 mm

293750009

$1.04
