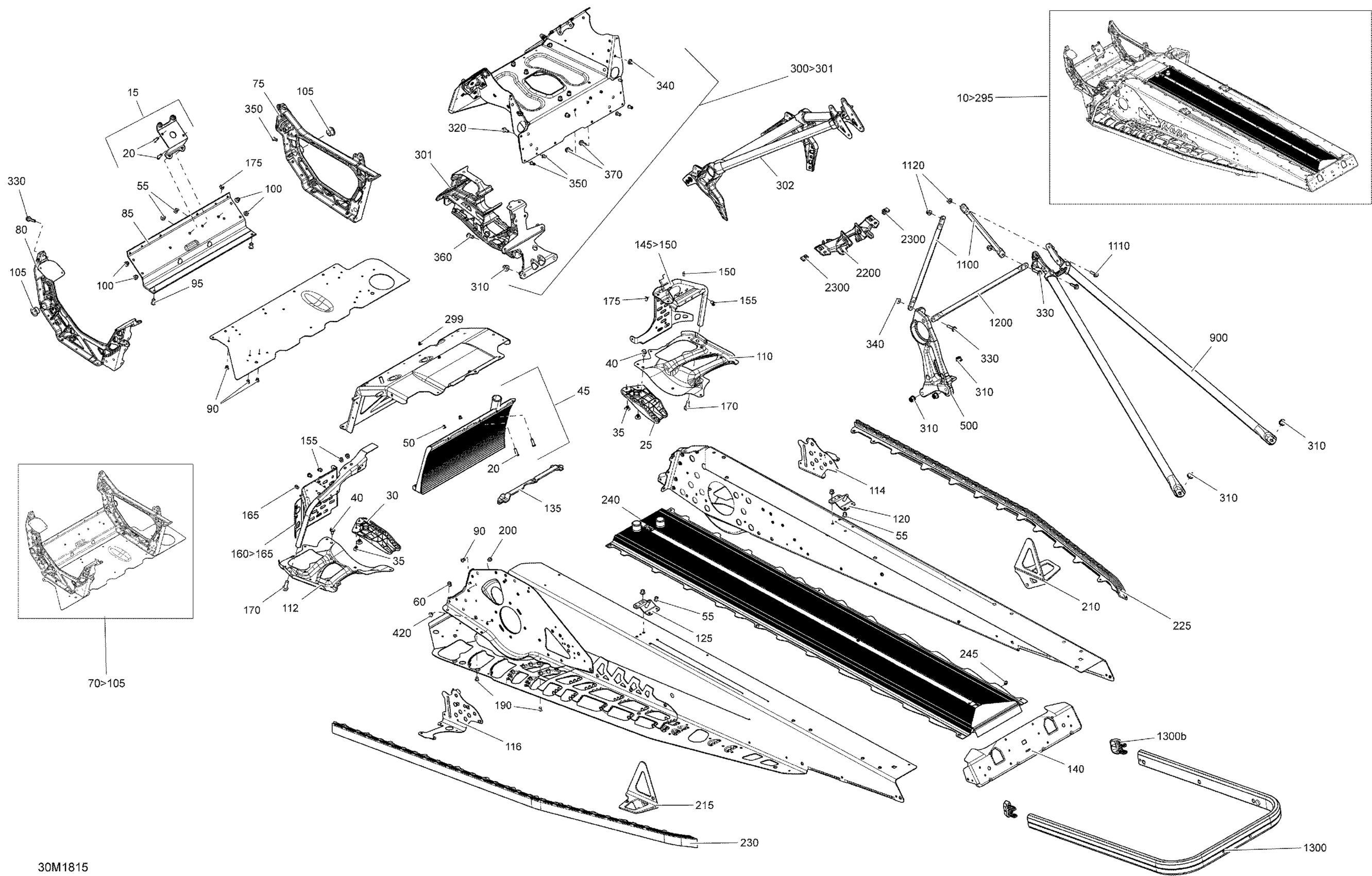

Ski-Doo GRAND TOURING 600HO E-TEC, 2018 Frame Grand Touring - 600HO E-TEC Diagram

#

Description
Price

10>295

FRAME GTX 600 ETEC - Call your local BRP dealership | Includes 10 to 10

415130128

Unavailable

15

MAG Engine Support | Includes 10a to 10a1

518325943

$25.34

20

Clinch Stud M6 X 20

250300027

$1.87

25

RH Deflector, Black Polypropylene

518325782

$11.42

30

LH Deflector, Black Polypropylene

518325783

$11.42

35

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

40

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

45

Front Radiator | Includes 10b to 10b2

518326485

$421.61

45

Front Radiator | Includes 10b to 10b2

518326485

$421.61

50

Rivet Avibulb 3/16

293150203

$0.28

55

Hemlock Rivet, 6.5 mm

293150119

$3.88

60

Hemlock Rivet, 6.4 mm

293150174

$6.24

70>105

E Module | Includes 10n to 10at

518327567

$415.64

75

RH Member

518326795

$252.21

80

LH Member

518326796

$204.45

85

Front Member

518326198

$58.18

90

Stavex Rivet

293150144

$0.75

95

Hemlock Rivet 6.5 mm

293150120

$7.01

100

Hemlock Rivet, 6.5 mm

293150119

$3.88

105

Leg Cushion

505073317

$5.75

110

RH Reinforcement, Running Board

518326937

$24.60

112

LH Reinforcement, Running Board

518326938

$24.60

120

RH Rear Base

518325973

$17.88

125

LH Rear Base | Includes 10v to 10x

518325974

$17.88

130

Clinch Stud

250300038

$3.88

135

Seal

518326656

$8.18

140

Rear Cap

518327105

$20.12

145>150

RH Stirup

518328940

$155.94

150

Avex Rivet

390909200

$0.28

155

Insert M5 X 0.8

293450268

$1.90

160>165

LH Stirup | Includes 10s to 10t

518328528

$155.94

165

Avex Rivet

390909200

$0.28

170

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.81

175

Full Moon Dart 5 mm

293730042

$2.06

190

Avex Rivet

390909100

$0.28

200

Henrob Rivet

293150146

$1.87

215

RH SUSPENSION BRACKET - Call your local BRP dealership

518327858

Unavailable

220

LH Suspension Bracket

518327859

$73.10

225

RH Roller

518327093

$76.99

230

LH Roller

518327094

$76.99

240

Rear Radiator 137'' | Includes 10ar to 10as

518327588

$739.52

246

Stavex Rivet

293150144

$0.75

296

Stavex Rivet

293150144

$0.75

298

Hemlock Rivet, 6.4 mm

293150174

$6.24

300>301

Cross Member S Module | Includes 300a to 300b

518328320

$445.49

301

Front Suspension Support

518327487

$259.67

302

Front Member

518327565

$306.69

310

Hex. Flange Elastic Nut M8

233281414

$1.31

320

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.15

330

Hex. Flange Screw M6 X 25

207662544

$0.61

340

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

350

Monobolt Rivet, 4.8 mm

293150191

$0.93

360

Monobolt Rivet 6.4

293150182

$2.82

370

Hex. Flange Screw M6 X 16

207661644

$0.70

420

Black Dart 5 mm

293730053

$4.28

420

Black, Dart 8 mm

293730047

$2.07

500

Driven Pulley Support This part replaces 518327133.

518327460

$99.22

500a

Driven Pulley Support This part replaces 518327133.

518327460

$99.22

900

Rear Member

518326559

$237.28

1100

Upper Lateral Column Support

518325114

$20.12

1110

Hex. Flange Screw M6 X 20

207662044

$1.91

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1200

Center Column Support

518325115

$20.12

1300

BLACK REAR BUMPER - Call your local BRP dealership

518327401

Unavailable

1700>1700a

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.13

1700a

Washer

517124300

$0.18

1710

Pop Rivet 3/16”

293150108

$1.19

2000

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

2100

Tunnel Prot. - Call Your Local BRP Dealership This part replaces 860200267.

860200802

Unavailable

2200

Sub A Support

518327145

$76.84

2300

Panel Nut M5 X 0.8

250000958

$4.00

6000

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

6001

Flat Washer

224061201

$1.27
