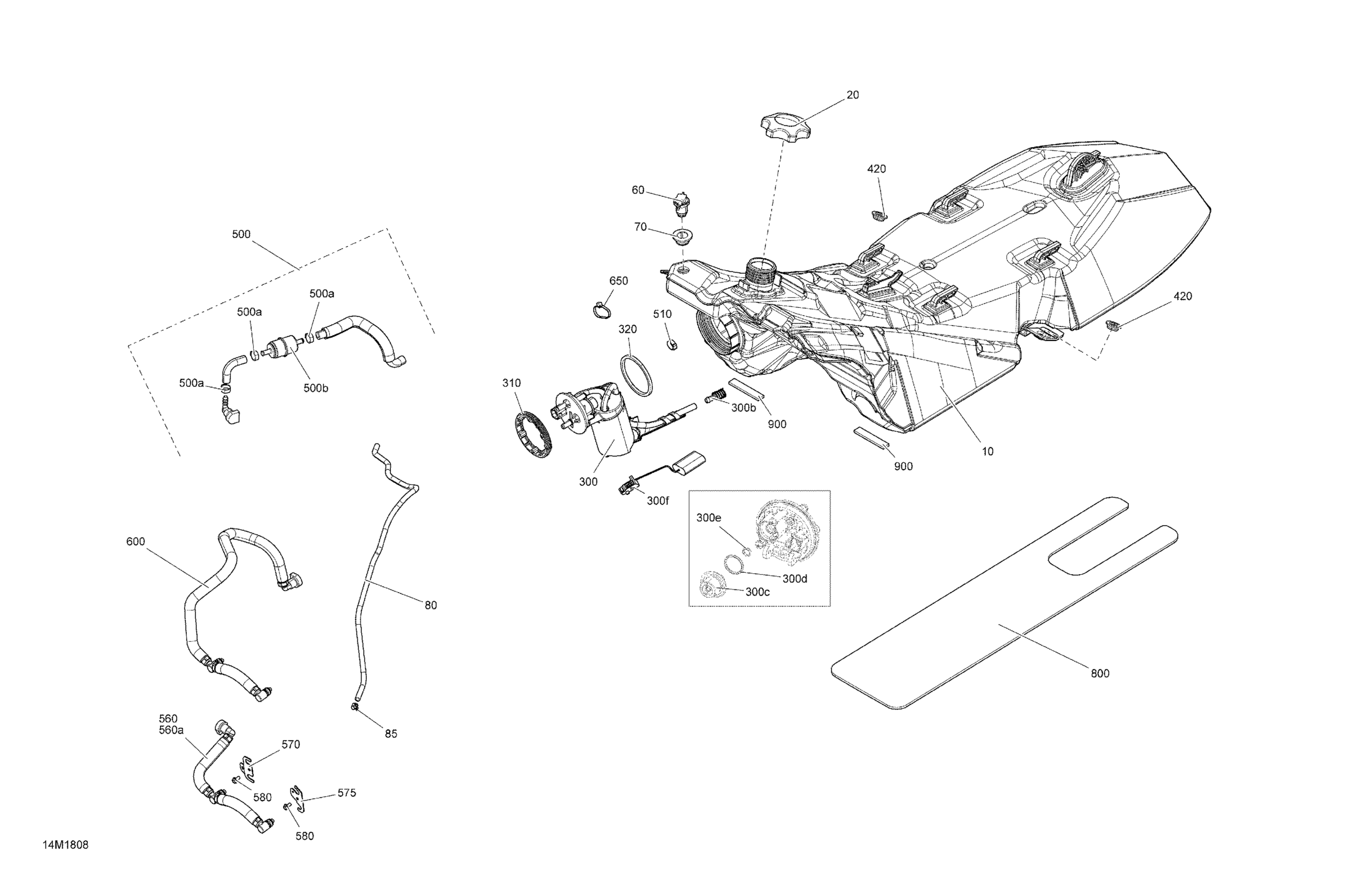

Ski-Doo GRAND TOURING 600HO E-TEC, 2018 Fuel Grand Touring - 600 HO E-TEC Diagram

Description

Price

Fuel Tank

513033667

$339.99

Fuel Tank Cap 91 Octane

513033722

$22.49

Fuel Tank Cap 95 Octane | Europe

513033723

$26.99

Check Valve

513033842

$35.99

Grommet

513033596

$21.99

Polyurethane Hose 10000Mm Long

219704410

$56.99

Spring Clamp

414554800

$0.88

300 > 300f

PUMP FUEL | Includes 300 to 300f This part replaces 513033837.

513034258

$259.99

300a

Fuel Filter

415129451

$25.99

300b

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

300c

Regulator

415129821

$80.99

300d

O-Ring

415129822

$19.99

300e

O-Ring

415129823

$19.99

300f

Fuel Level Sensor

415130108

$149.99

310

Ring

513033180

$19.99

320

Gasket

513033334

$24.49

420

Shoulder Bushing

513033326

$14.99

500 > 500b

Hose Ass'y | Includes 500 to 500b This part replaces 513033846.

513034137

$82.49

500a

Oetiker Clamp

293650125

$3.29

500b

Fuel Filter

513034047

$21.99

510

Crimp Clamp

293650053

$3.09

560 > 560a

Hose Ass'y | Includes 22 to 23

513033594

$88.99

560a

Locking Clip

513033135

$5.89

570

Bracket

513033542

$14.99

575

Bracket

513033593

$18.99

580

Hex. Flange Screw M5 X 10

207551044

$4.12

600

Fuel Hose Ass'y

513033648

$134.99

650

Tie-Rap 180 mm

414115200

$0.11

800

Insulating Foam

513033588

$14.99

900

Gasket

513033813

$3.38
