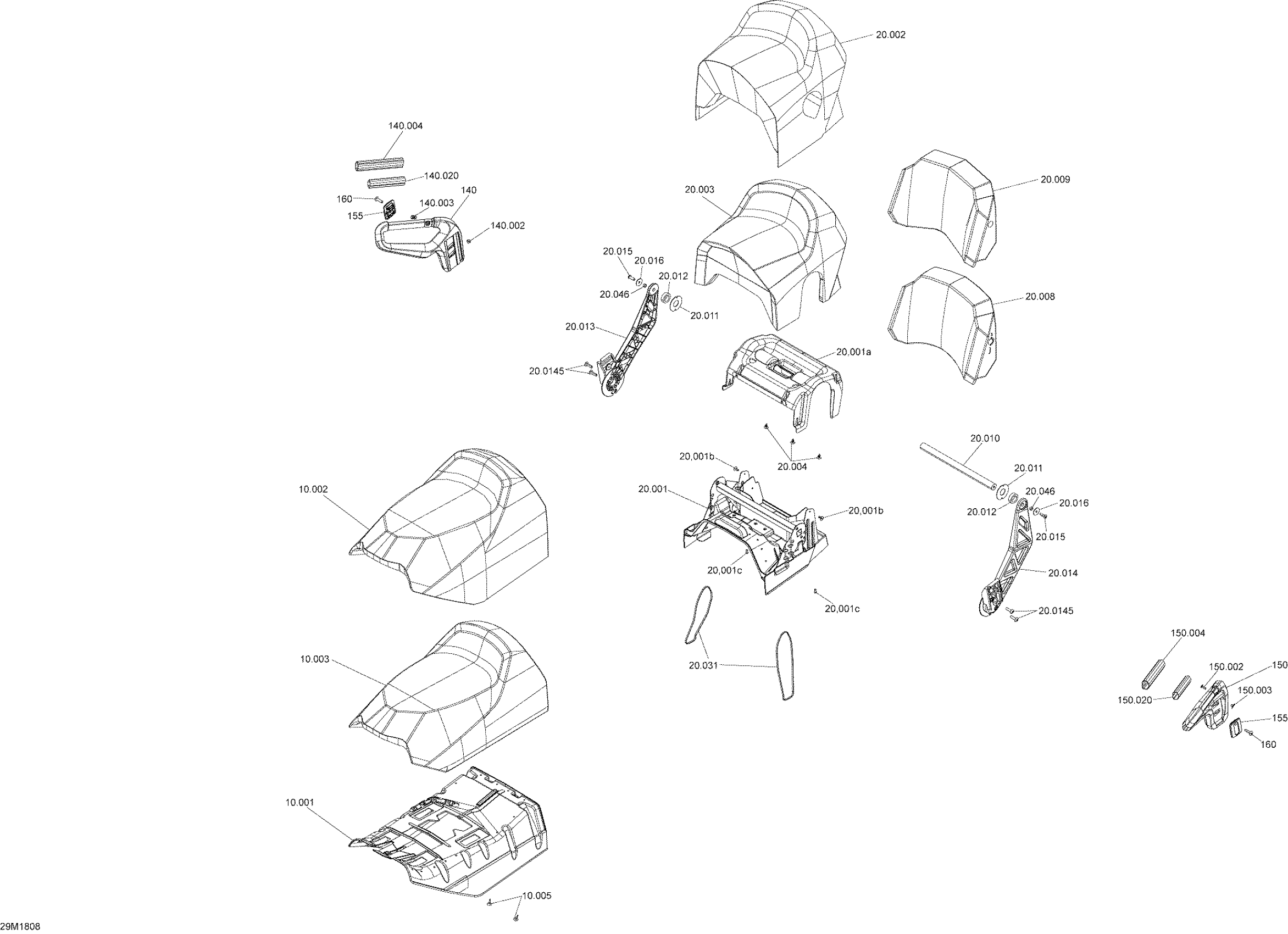

Ski-Doo EXPEDITION SPORT 550F, 2018 Seat Expedition Sport Diagram

#

Description
Price

10.001

Front Seat Base

510004775

$93.99

10.002

Seat Cover

510005181

$219.99

10.003

Front Seat Foam

510004777

$219.99

10.005

Rubber Stopper

708000759

$4.19

20.001

Seat Base Ass'y | Includes 20a to 20a3

510005535

$419.99

20,001a

Foam Support

510004423

$38.99

20,001b

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

20,001c

Pop Rivet 3/16"

390402300

$0.75

20.002

Rear Seat Cover

510005399

$230.99

20.003

Rear Seat Foam

510004791

$294.99

20.004

Black, Dart

414644300

$0.98

20.008

Backrest Foam

510004782

$124.99

20.009

Backrest Cover | Not Shown

510005309

$176.99

20.01

Upper Backrest Axle

510004377

$44.99

20.011

Washer

510004379

$10.01

20.012

Rubber Shim

510004378

$10.99

20.013

RH Arm, Black

510005539

$28.99

20.014

LH Arm, Black

510005538

$28.99

20.0145

Hex Torx Truss M8 X30

250000745

$3.17

20.015

Hex Torx Truss M8 X30

250000745

$3.17

20.016

Flat Washer 8 mm

250200128

$4.44

20.031

Tie Wrap 368 mm

293750008

$1.04

20.046

Spacer

271000558

$8.89

140

RH Handle Ass'y | Includes 140 to 140,02

510005851

$285.99

140.002

Torx Truss Screw M6 X 16

250000721

$1.69

140.003

Nut Welded, M6

293100003

$9.12

140.004

Handle Grip

510004449

$12.49

140.02

Reinforcement Handle

510005814

$21.99

150

LH Handle Ass'y | Includes 150a to 150a4

510006713

$285.99

150.002

Torx Truss Screw M6 X 16

250000721

$1.69

150.003

Nut Welded, M6

293100003

$9.12

150.004

Handle Grip

510004449

$12.49

150.02

Reinforcement Handle

510005814

$21.99

155

Passenger Handle Trim

510006602

$13.99

160

Hex Torx Truss M8 X30

250000745

$3.17
