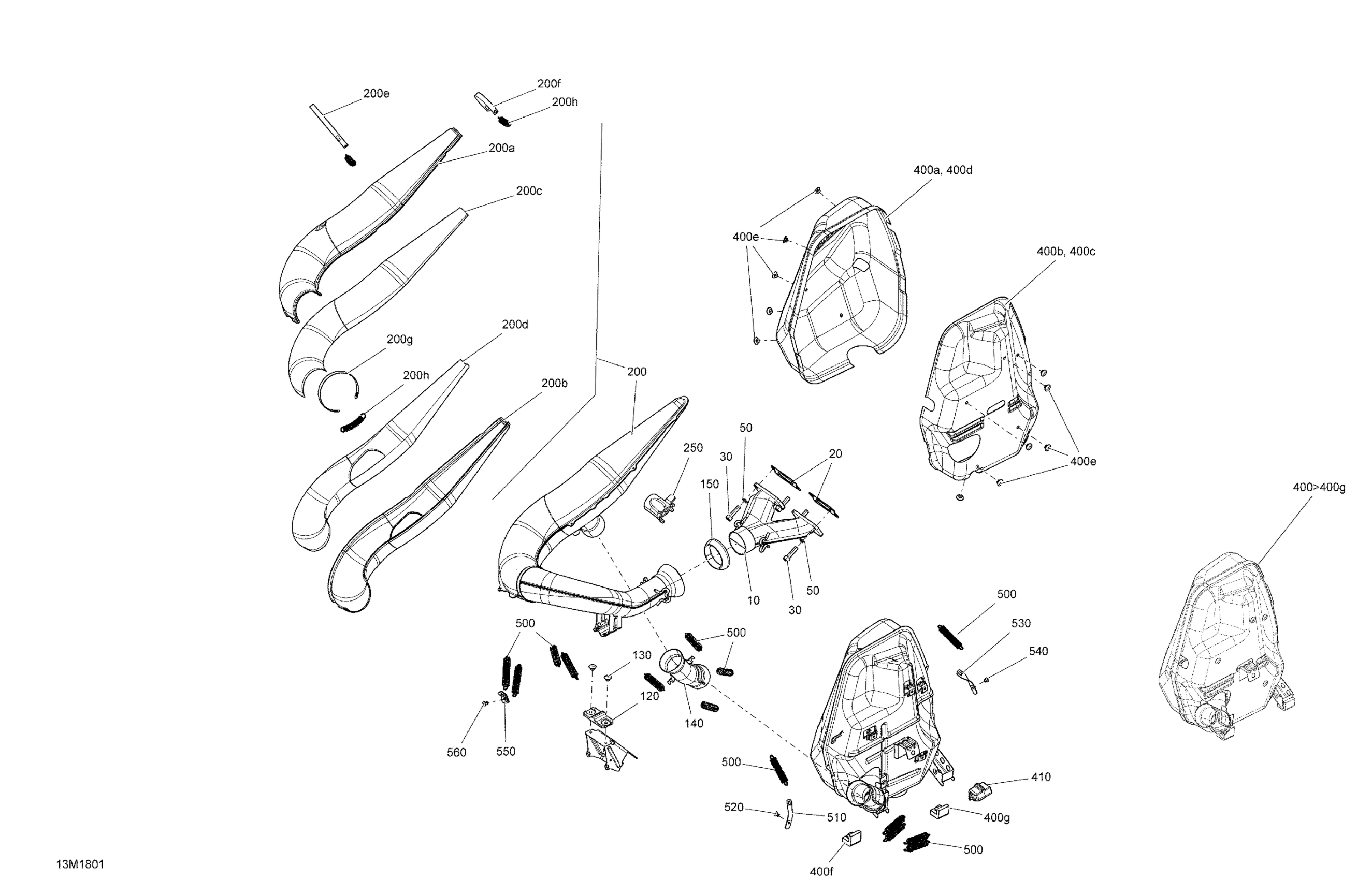

Ski-Doo EXPEDITION SPORT 550F, 2018 Exhaust Expedition Sport 550F Diagram

#

Description
Price

10

Exhaust Manifold

420673065

$309.67

20

Gasket 1.0 mm

420831849

$7.69

30

Socket Head Screw M8 X 30

205083044

$1.06

50

Washer

514053837

$4.15

120

Bumper

514054617

$14.21

130

Pop Rivet 3/16"

293150103

$0.52

140

Exhaust Elbow

514054411

$75.34

150

Exhaust Gasket

514053644

$24.60

200 > 200h

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 200 to 200h

514054414

Unavailable

200a

Rear Upper Half-enveloppe

514054208

$49.22

200b

Rear Lower Half Envellope

514054210

$52.96

200c

Upper Insulating Wool

514054244

$12.27

200d

Lower Insulating Wool

514054243

$12.27

200e

Retaining Strap

514053502

$8.10

200f

Retaining Strap

514053492

$10.24

200g

Retaining Strap

514053498

$8.10

200h

Spring

514053643

$6.01

250

Bumper

514054513

$18.63

400 > 400g

Exhaust Muffler Ass'y | Includes 400 to 400g

514054978

$698.48

400a

RH Deflector

514054984

$52.96

400b

LH Deflector

514054979

$52.96

400c

LH Insulated Wool

514054421

$17.88

400d

RH Insulating Wool

514054711

$17.88

400e

Pop Rivet 3/16”

390910000

$0.55

400f

Lower Stopper

514054274

$18.63

400g

Lower Stopper

514054496

$25.34

410

Upper Stopper

514054606

$17.13

500

Spring

415107100

$6.01

510

Spring Bracket, 5mm hole

514054974

$6.09

520

Stavex Rivet

293150144

$0.75

530

Spring Bracket, 5mm hole

514054974

$6.09

540

Avex Rivet

390909200

$0.28

550

Spring Bracket

514053436

$8.10

560

Avex Rivet

390909100

$0.28
