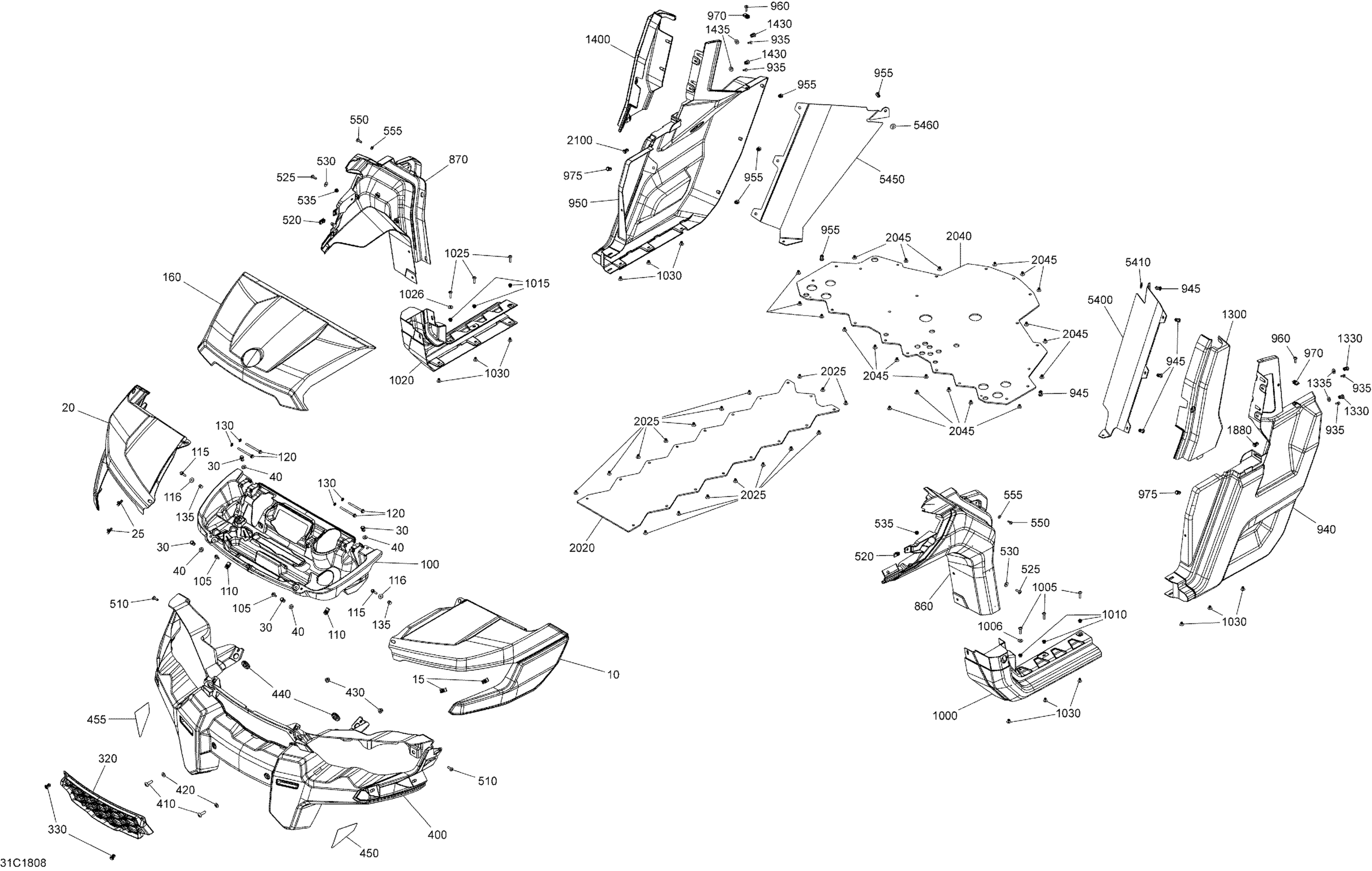

Can-Am Defender HD5, 2018 Body Defender Non MAX HD5 - Break Up Country Camo Models Diagram

#

Description
Price

10

Break Up Country, LH Front Fender | Camo Model

705017041

$189.97

15

Panel Nut M6 X 1.0

250100198

$1.73

20

Break Up Country, RH Front Fender | Camo Model

705017040

$189.97

25

Panel Nut M6 X 1.0

250100198

$1.73

30

Tuflok Plastic Rivet

293150230

$1.21

40

Washer

503192494

$3.11

100

Service Center

705011391

$59.97

105

Torx Screw M6 X 20

250000722

$1.34

110

Panel Nut M6 X 1.0

250100198

$1.73

115

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

116

Stainless Steel Flat Washer

234062670

$1.74

120

Hex. Flange Screw M6 X 75

207667554

$3.61

130

Push Nut

732610072

$1.72

135

Bushing

293900125

$2.75

160

Camo, Front Service Cover | Camo Model

705010525

$548.43

320

Grid Front Fascia

705009364

$26.12

330

Tuflok Plastic Rivet

293150230

$1.21

400

Front Facia

705011392

$233.82

410

Torx Screw M8 X 30

250000886

$1.74

420

Washer

503192494

$3.11

430

Hex. Flange Elastic Nut M8

233281414

$1.14

440

Grommet

705010718

$2.69

450

LH Front Reflector

704905072

$11.15

455

RH Front Reflector

704905073

$11.15

510

Torx Screw M6 X 20

250000722

$1.34

520

Panel Nut M6 X 1.0

250100198

$1.73

525

Torx Screw M6 X 20

250000722

$1.34

530

Stainless Steel Flat Washer

234062670

$1.74

535

Insert Half Hex Body M6 x 1.0

250100199

$2.54

550

Torx Screw K50 X 16

250000720

$1.39

555

Flat Washer M5

234051670

$1.74

860

LH Front Lateral Panel

705008152

$59.97

870

RH Front Lateral Panel

705008153

$59.97

935

Torx Screw K50 X 16

250000720

$1.39

940

Rear LH Side Panel | Order 705012704 panel + 414916600 Nylon Cap

705012704

$87.66

945

Tuflok Plastic Rivet

293150230

$1.21

950

RH Rear Side Panel

705012705

$106.12

955

Tuflok Plastic Rivet

293150230

$1.21

960

Torx Screw M6 X 20

250000722

$1.34

970

Panel Nut M6 X 1.0

250100198

$1.73

975

Tuflok Plastic Rivet

293150230

$1.21

1000

Deep Black, LH Central Panel

705019037

$69.20

1005

Torx Truss Screw M6 X 25

250000807

$1.74

1006

Stainless Steel Flat Washer

234062670

$1.74

1010

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1015

Insert Half Hex Body M6 x 1.0

250100199

$2.54

1020

Deep Black, RH Central Panel

705019038

$73.82

1025

Torx Truss Screw M6 X 25

250000807

$1.74

1026

Stainless Steel Flat Washer

234062670

$1.74

1030

Pop Rivet 3/16”

293150108

$1.23

1300

LH Rear Cage Cover Kit

715003564

$76.12

1330

Tuflok Plastic Rivet

293150230

$1.21

1335

Washer

503192494

$3.11

1400

RH Rear Cage Cover Kit | Includes 1160 to 1160a

715003565

$76.12

1430

Tuflok Plastic Rivet

293150230

$1.21

1435

Washer

503192494

$3.11

1880

Tuflok Plastic Rivet

293150230

$1.21

2020

Central Skid Plate

705009151

$55.35

2025

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

2040

Rear Skid Plate

705011292

$87.66

2045

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

2100

Tuflok Plastic Rivet

293150230

$1.21

5400

LH Rear Deflector

705010426

$49.97

5410

Flat Washer 8 mm, Nylon

292001663

$1.18

5450

RH Rear Deflector

705010427

$49.97

5460

Flat Washer 8 mm, Nylon

292001663

$1.18
