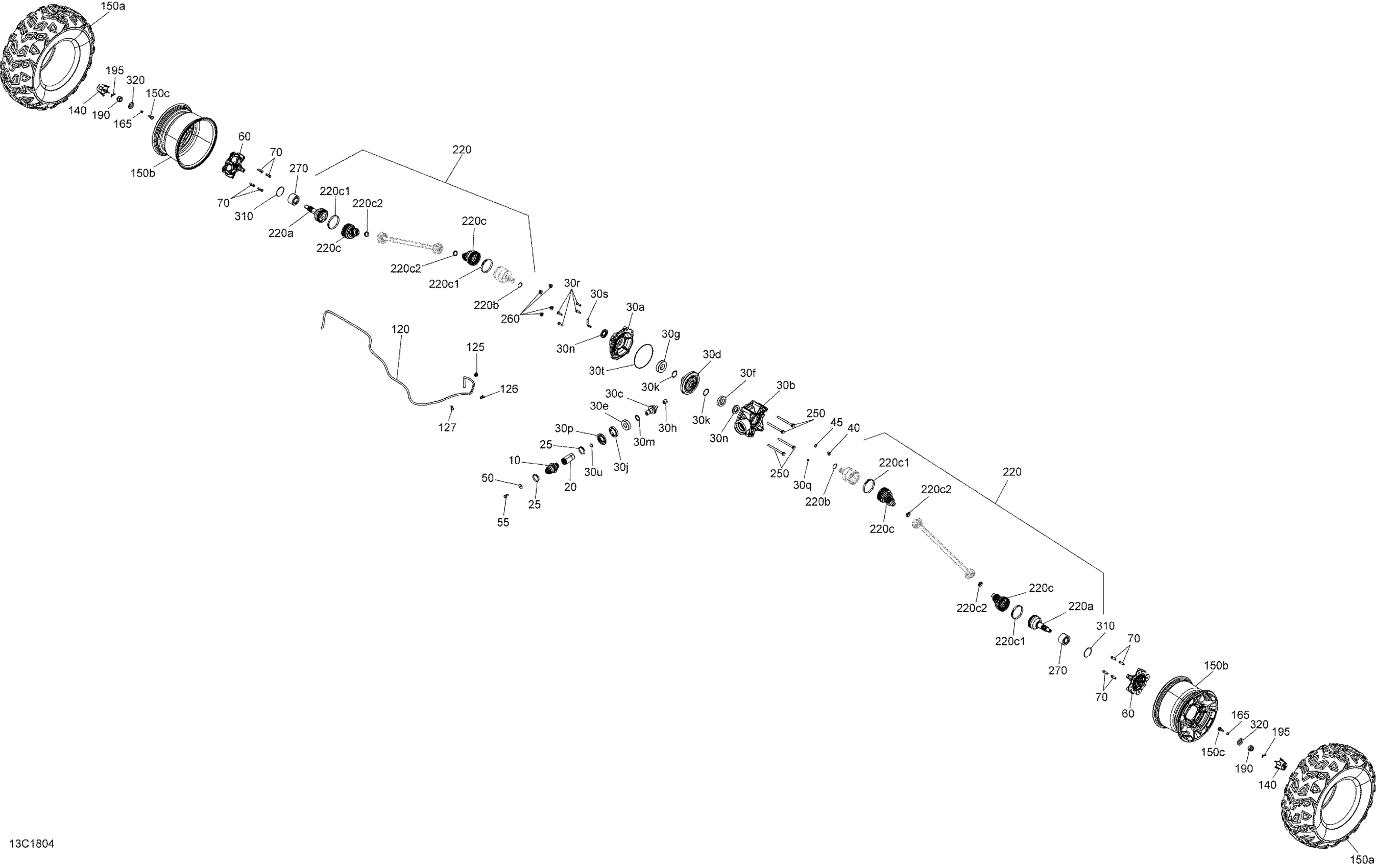

Can-Am Defender HD5, 2018 Rear Drive Defender HD5 Diagram

#

Description
Price

10

Drive Axle Ass'y

705401950

$175.35

20

Coupling Sleeve

705401969

$27.66

25

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

30>30w

Final Drive Unit | Includes 30 to 30u

703501019

$904.58

30a

REAR COVER - Call your local BRP dealership

705502051

Unavailable

30b

Rear Pinion Cover

705502052

$207.66

30c

Pinion 10 Teeth

705502053

$198.43

30d

Gear 36 Teeth

705502682

$175.35

30e

Ball Bearing

705502055

$30.39

30f

Ball Bearing

705502737

$46.07

30g

Ball Bearing

705502738

$56.52

30h

Needle Bearing

705502058

$47.49

30j

Nut

705502059

$32.28

30k

Differential Shim 0.02 mm

705502060

$13.83

30m

Pinion Gear Shim 1.67 mm

705502061

$16.12

30n

Oil Seal

705501556

$17.66

30p

Oil Seal

705502062

$23.05

30q

Plug Drain

705501724

$5.98

30r

Screw

705502063

$3.08

30s

Breather Tube

705501584

$13.86

30t

Seal

705502064

$8.31

30u

O-Ring

705502065

$5.98

30v

Hex. Flange Screw M10 X 16 S.GRIP

250001044

$1.74

30w

Flat Washer M10 | 4X4

250200014

$1.17

40

Fill Level Plug | 4X4

705500504

$7.61

45

Copper Washer | 4X4

705500506

$0.36

50

Flat Washer M10 | 4X4

250200014

$1.17

55

Hex Flange Screw M10 X 20 S.Grip

250001046

$3.61

60

Wheel Hub

705502338

$115.35

70

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

120

Polyurethane Hose 10000Mm Long

219704410

$46.12

125

Clip Tie-Rap

293750063

$8.45

126

Dart Tie Rap 200MM

710003168

$5.72

127

Tie-Rap 180 mm

414115200

$0.09

140

Wheel Cap

705400928

$11.06

165

Valve Cap

293000110

$1.18

190

Castle Nut M20

250100193

$6.66

195

Cotter Pin

250400084

$1.79

220>220d2

LH Rear - Premium CV Axle | 1

705502478

$233.82

220>220d2

RH Rear - Premium CV Axle | Includes 220 to 220c2

705502479

$233.82

220a

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

220b

Circlip

705501781

$5.38

220c

Boot Kit

705501864

$41.51

220c1

Oetiker Clamp, 82.1 mm

715900241

$7.84

220c2

Oetiker Clamp, 27.3 mm

715900242

$7.84

250

Hex. Flange Screw M10 X 125

230602546

$6.08

260

Hex. Flange Elastic Nut M10

233201436

$1.74

270

Ball Bearing

293350150

$51.93

310

Circlip

293370019

$4.98

320

Conical Spring Washer M20

250200170

$11.00
