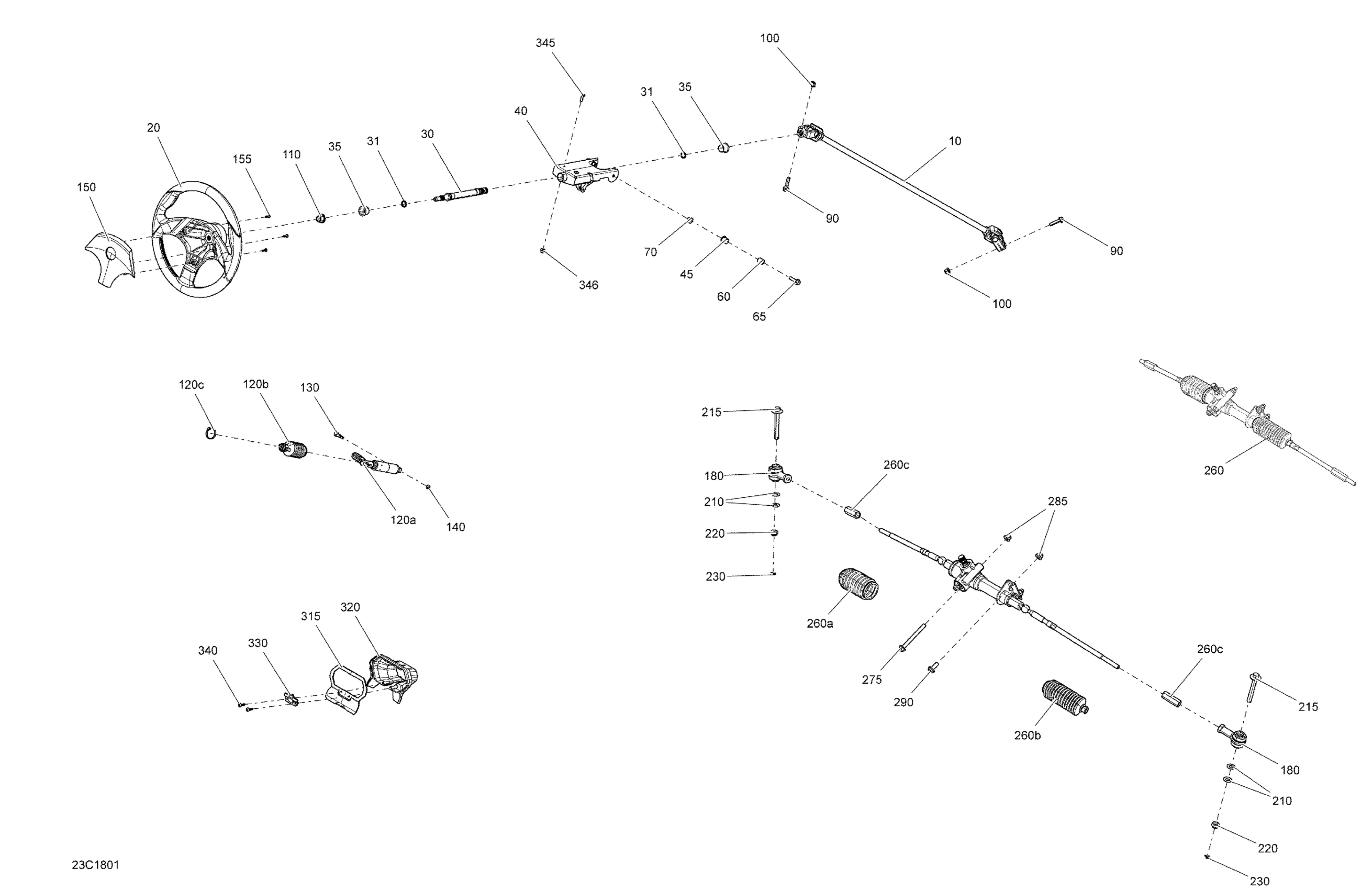

Can-Am Commander 800R EFI, 2018 Steering Commander - Package STD Diagram

#

Description
Price

10

Steering Shaft Ass'y | Package-STD

709401498

$177.58

20

Steering Wheel | STD

709400650

$126.84

30

Steering Shaft

709401167

$44.00

31

O-Ring

293300144

$3.79

35

Steering Bushing

709402725

$3.07

40

Painted Steering Wheel Support

709401391

$76.84

45

Bushing

705600799

$3.72

60

Bushing

293900106

$4.28

65

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

70

Hex. Flange Elastic Nut M8

233281414

$1.31

90

Hex. Flange Screw M8 X 35

250000986

$2.00

100

Hex. Elastic Flange Nut M8

233281416

$1.43

110

Hex. Flange Elastic Nut M12

233221414

$5.85

120a

Adjustment Cylinder

709402506

$64.90

120b

Boot Tube Side

709401232

$15.64

120c

Tie-Rap 180 mm

414115200

$0.10

130

Socket Head Screw M8 X 16

250000669

$3.00

140

Elastic Stop Nut M6

232561414

$1.78

150

Steering Center | STD

709400780

$10.82

155

Phillips Screw K40 X 16

250000723

$0.93

180

Ball Joint

709401134

$49.22

210

Hardened Washer

706200281

$2.69

215

Hexagonal Screw M12 X 88

250000657

$5.96

220

Elastic Stop Nut M12

232521416

$1.61

230

Cotter Pin

211400017

$0.28

260>260c

Rack And Pinion Steering

709402387

$453.70

260a

Boot Kit, Pinion Side

715900235

$50.72

260b

Boot Kit, Tube Side

715900236

$50.72

260c

Nut Tie Rod End

715900237

$13.31

275

Hex Flange Screw DIN.6921 - Call your local BRP dealership

230600046

$3.00

285

Hex. Flange Elastic Nut M10

233201436

$2.00

290

Hex. Flange Screw M10 X 25

207602546

$2.00

315

Cluster Support | STD

709400760

$19.37

320

Speedometer Cover

709400514

$14.90

330

Latch Indicator Cover

709400573

$9.90

340

Torx Screw Truss Head K50X20 T20

250000760

$2.00

345

Torx Screw M6 X 20

250000722

$1.54

346

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
