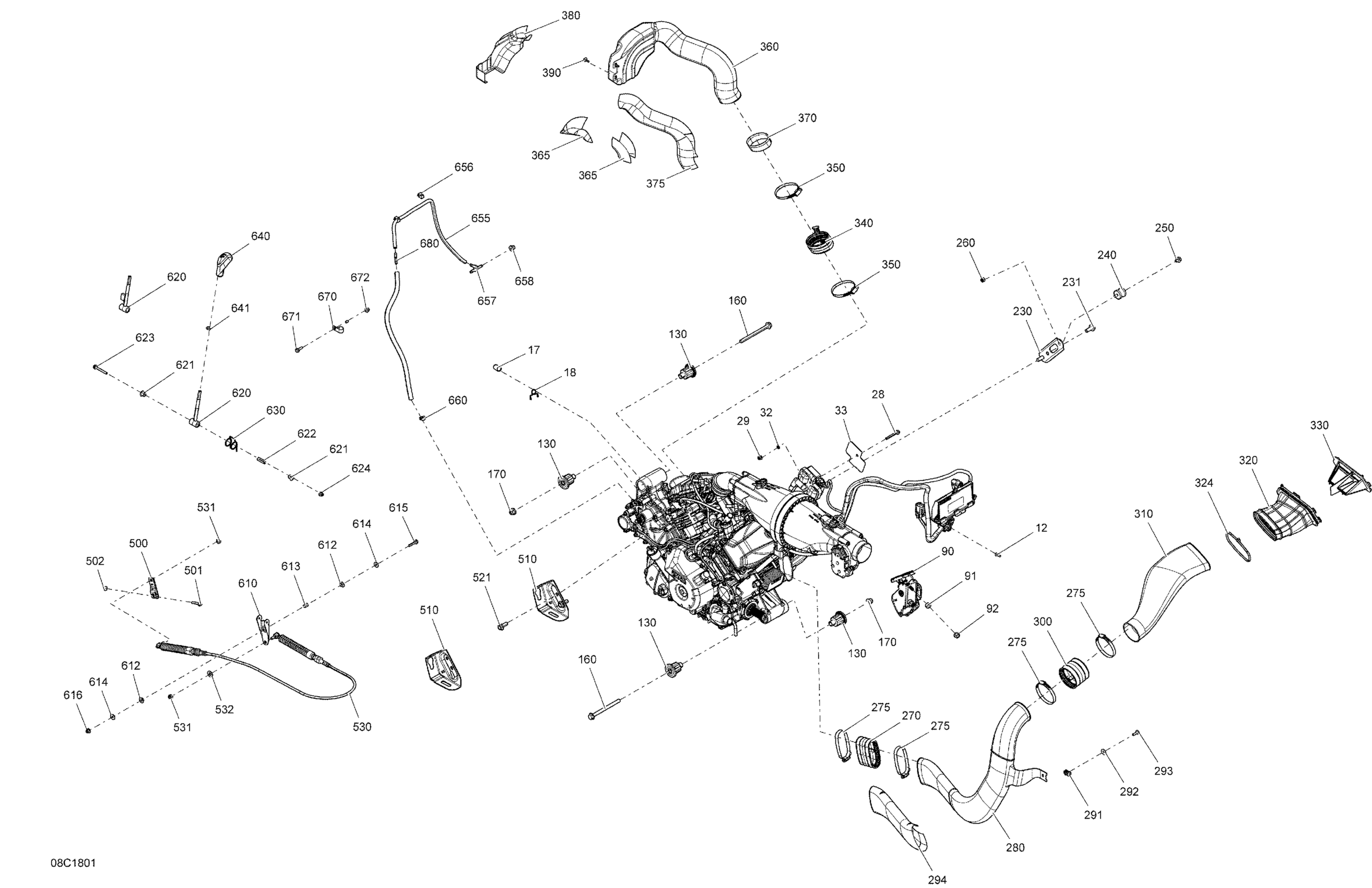

Can-Am Commander 800R EFI, 2018 Engine Commander Non MAX - 800 EFI Diagram

#

Description
Price

12

Torx Screw K50 X 16

250000720

$1.60

17

Plug

707001185

$1.04

18

Retainer Clip

707800506

$10.51

28

Hex. Flange Screw M6 X 50

207665044

$3.88

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

32

External Serrated Lock Washer 6 mm

234461608

$1.06

33

Insulator Pad

710000073

$10.30

90

Accelerator Pedal

707001166

$261.24

91

Bushing

707000848

$1.04

92

Hex. Flange Nut M8

233081416

$1.87

130

Anti Vibration Buffer

707001170

$19.37

160

Hex. Flange Screw M10 X 125

230602546

$6.99

170

Hex. Flange Elastic Nut M10

233201436

$2.00

230

Upper Engine Bracket

707000707

$5.25

231

Hex. Flange Screw M10 X 25

207602544

$1.52

240

Rubber Isolator

707000949

$10.33

250

Flange Screw M8 x 10, Scotch Grip

207581046

$4.58

260

Hex. Elastic Stop Nut M8

232581414

$0.54

270

Flexibale Adaptor

707002585

$14.31

275

Norma Clamp

293650091

$10.54

280

Air Inlet

707000639

$17.88

291

Panel Nut M6 X 1.0

250100198

$1.99

292

Flat Washer

250200082

$0.40

293

Torx Screw M6 X 20

250000722

$1.54

294

Reflective Sheet

707000924

$30.57

300

Flexibale Adaptor

707002585

$14.31

310

Primary Air Intake

707000909

$20.12

320

Adaptor

707000908

$32.81

325

Tie Wrap 368 mm

293750008

$0.97

330

CVT Filter

707001344

$13.90

340

Adaptor

707001274

$14.90

350

Norma Gear Clamp

293650118

$11.18

360

CVT Air Outlet

707000640

$21.61

360

CVT Air Outlet

707000640

$21.61

365

Reflective Sheet

707000991

$8.48

365

Reflective Sheet

707000991

$8.48

370

Reflector

707000988

$4.09

375

Reflective Sheet

707000989

$25.34

380

Reflective Sheet

707000990

$14.90

390

Screw M4 X 16

250000725

$3.30

500

Lever

707000911

$18.63

501

Hex. Flange Screw M6 X 35

207663544

$0.85

502

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

510

Cable Support | Engine 800

707000921

$14.43

521

Hex. Flange Screw M10 X 25

207602544

$1.52

530

Shifting Cable

707001210

$63.40

531

Hex. Elastic Stop Nut M8

232581414

$0.54

532

Flat Washer 10 mm

234001410

$1.12

610

Lower Lever Arm

707000828

$17.13

612

Flanged Bushing

707000847

$0.97

613

Bushing

707000801

$2.68

614

Flat Washer 6 mm

234062410

$0.73

615

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

616

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

620

Upper Lever Arm

707000711

$35.79

621

Flanged Bushing

707000869

$2.13

622

Bushing

707001376

$4.09

623

Hex. Flange Screw M6 X 50

207665044

$3.88

624

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

630

Lever Arm Spring

707000750

$2.68

640

Lever Handle

707000284

$17.88

641

Hex. Jam Nut M8

232180491

$7.09

655

Polyurethane Hose 10000Mm Long

219704410

$52.96

656

Clip

414227300

$1.40

657

Y-Fitting

293710059

$9.40

658

Grommet

293720029

$1.30

660

Spring Clamp

414415200

$0.81

670

Open Clamp

518321570

$5.85

671

Hex. Flange Screw M6 X 20

207662044

$1.91

672

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

680

Straight Fitting

293710039

$6.75
