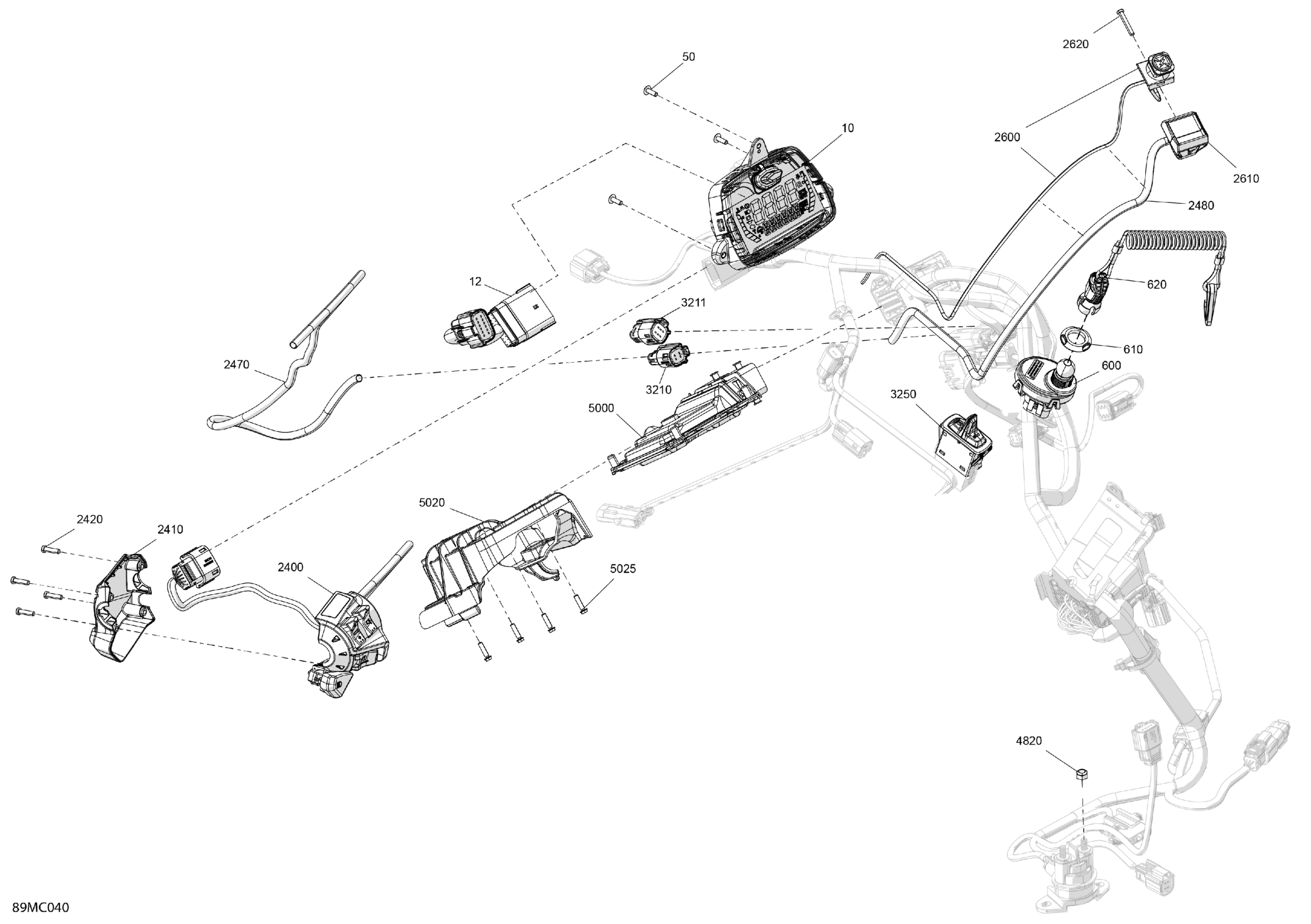

Ski-Doo EXPEDITION XTREME 900 ACE TURBO R - (APPB) - 2023 Electric - Upper Section Diagram

Description

Price

1 Button Multifunction Compact Mono Gauge

515179303

$529.99

2 Button Multifunction Gauge Full Size Color

515178226

$599.99

Junction Wiring Harness

515179304

$24.49

Torx Truss PT K40 x 12

250001131

$2.11

600

Ignition Switch

710006855

$81.49

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

2400

LH Switch Housing

515178102

$284.99

2410

Housing Plate

515177147

$20.99

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515177931

$76.49

2610

Emergency Stop Switch Support

515177310

$9.19

2620

Torx Screw #8-18

250000263

$1.04

3210

4 Circuits Female Housing

515178177

$12.18

3211

Coil Connector

515178202

$13.24

3250

Rocket Switch

515178501

$20.49

4820

Elastic Stop Nut M6

232561434

$1.99

5000

Vehicle Control Unit

420464172

$629.99

5020

Module Support

512061397

$16.33

5025

Hex. Flange Screw K40 X 16

241141660

$1.48
