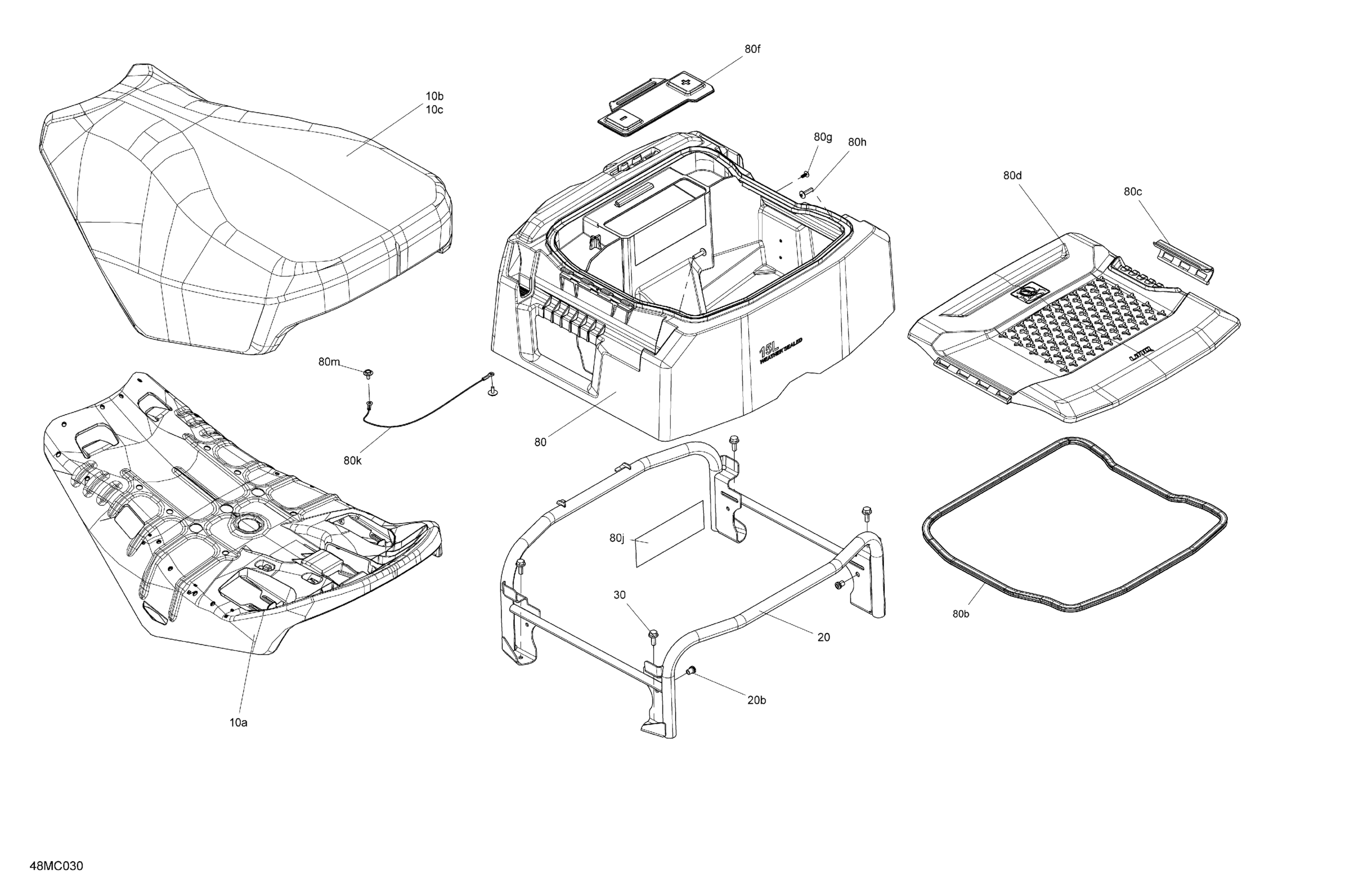

Ski-Doo EXPEDITION XTREME 900 ACE TURBO R - (APPB) - 2023 Body - Seat Diagram

Description

Price

10a

Driver Seat Base

510007142

$72.99

10b

Driver Seat Foam

510006413

$329.99

10c

Seat Cover

510007594

$198.49

10c

Seat Cover | Model Deep Black

510007596

Unavailable

Seat Support Ass'y | Includes 20 to 20b

510007010

$86.99

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Storage Box Ass'y | Includes 80 to 80m

510007165

$379.99

80b

Seal, 1PC = 3M

293830188

$39.99

80c

Latch

269502449

$4.39

80d

Box Cover

511001274

$39.99

80f

Access Cover

510006789

$8.74

80g

Torx-Truss Screw K40 X 10

250001034

$0.98

80h

Torx Screw M5 X 20

250000724

$1.69

80j

Warning Label

516009465

Unavailable

80k

Retaining Cable

293750092

$12.99

80m

Plastite Screw M4 X 10

250000805

$2.11
