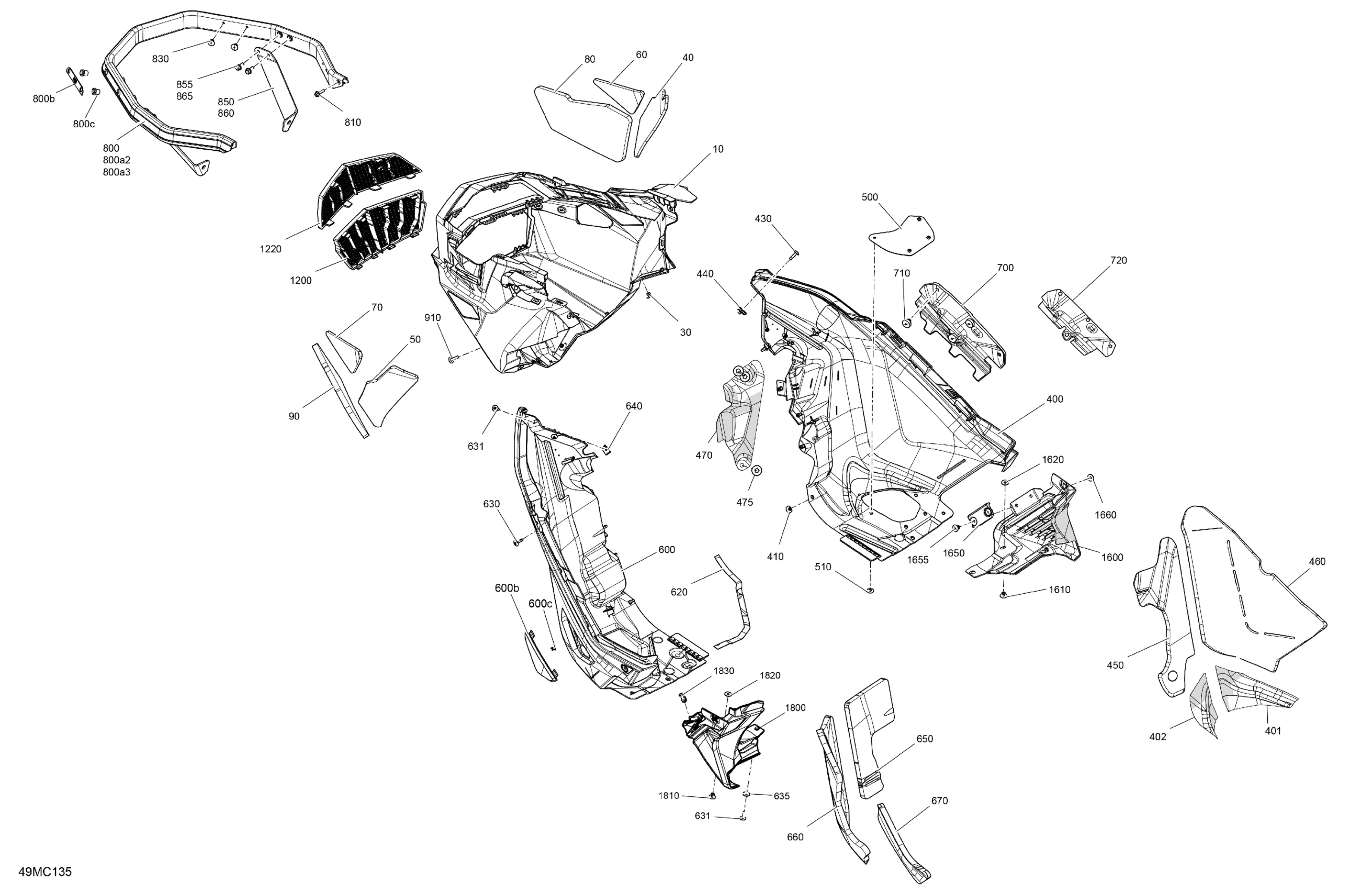

Ski-Doo EXPEDITION XTREME 900 ACE TURBO R - (APPB) - 2023 Body - Bottom Pan Diagram

#

Description
Price

10

Front Bottom Pan

502008638

$189.99

20

Skid Plate

502008466

$7.89

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

40

RH Upper Bottom Pan Foam

502007788

$18.99

50

LH Upper Bottom Pan Foam

502007789

$18.99

60

RH Bottom Pan Central Foam

502007545

$9.79

70

LH Bottom Pan Central Foam

502007546

$14.49

80

RH Lower Bottom Pan Foam

502007800

$21.99

90

LH Lower Bottom Pan Foam

502007799

$8.09

400

RH Bottom Pan

502007737

$139.99

401

Heat Shield

502008536

$4.49

402

Heat Shield

502008537

$4.49

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

430

Torx Truss M5 X 20

250000586

$4.49

440

Panel Nut M5 X 0.8

250000958

$4.29

450

RH Front Bottom Pan Foam

502007831

$12.49

460

RH Rear Bottom Pan Foam

502008170

$16.99

470

Heat Shield

502007895

$19.99

475

Push Nut

508000853

$2.09

500

Plate

502007868

$2.19

510

Pop Rivet 3/16"

293150103

$1.49

600

LH Bottom Pan Ass'y | Includes 600 to 600c

502007739

$139.99

600b

Bottom Pan Door

502007676

$39.99

600c

Hairpin Cotter

269800431

$1.49

620

Gasket, Neoprene 2000Mm Long

219704476

$15.99

630

Torx Truss M5 X 20

250000586

$4.49

631

Torx Truss M5 X 20

250000586

$4.49

635

Washer M5

250200025

$1.49

640

Panel Nut M5 X 0.8

250000958

$4.29

650

LH Bottom Pan Upper Foam

502007549

$14.49

660

LH Front Bottom Pan Foam

502008334

$12.49

670

LH Rear Bottom Pan Foam

502008173

$2.39

700

Heat Shield

502008087

$7.29

710

Stopper

502008149

$1.99

720

Reflective Sheet

502008156

$4.89

800

Spartan Red, Front Bumper Ass'y | Includes 800 to 800c

502008438

$129.99

800a2

Insert M5 X 0.8

293450268

$2.09

800a3

Insert

293450398

$5.09

800b

Bumper Trim

502007880

$31.99

800c

Insert

293450398

$5.09

806

Horn Bracket

502008380

Unavailable

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.29

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

850

RH Bumper Reinforcement

502007762

$13.99

855

Hex. Flange Screw M6 X 16

207661644

$1.49

860

LH Bumper Reinforcement

502007763

$13.99

865

Hex. Flange Screw M6 X 16

207661644

$1.49

910

Torx Screw M6 X 25

250000758

$2.19

1200

Lower Prefilter Grille

502007979

$26.99

1220

Upper Prefilter Grille

502007980

$22.99

1600

Deep Black, RH Bottom Pan Panel

502008023

$53.99

1610

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1620

Washer

517124300

$1.49

1650

Stopper

502007757

$4.69

1655

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1660

Washer

517124300

$1.49

1800

Deep Black, LH Bottom Pan Panel

502007717

$53.99

1810

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

1820

Washer

517124300

$1.49

1830

Tuflok Plastic Rivet

293150230

$1.49
