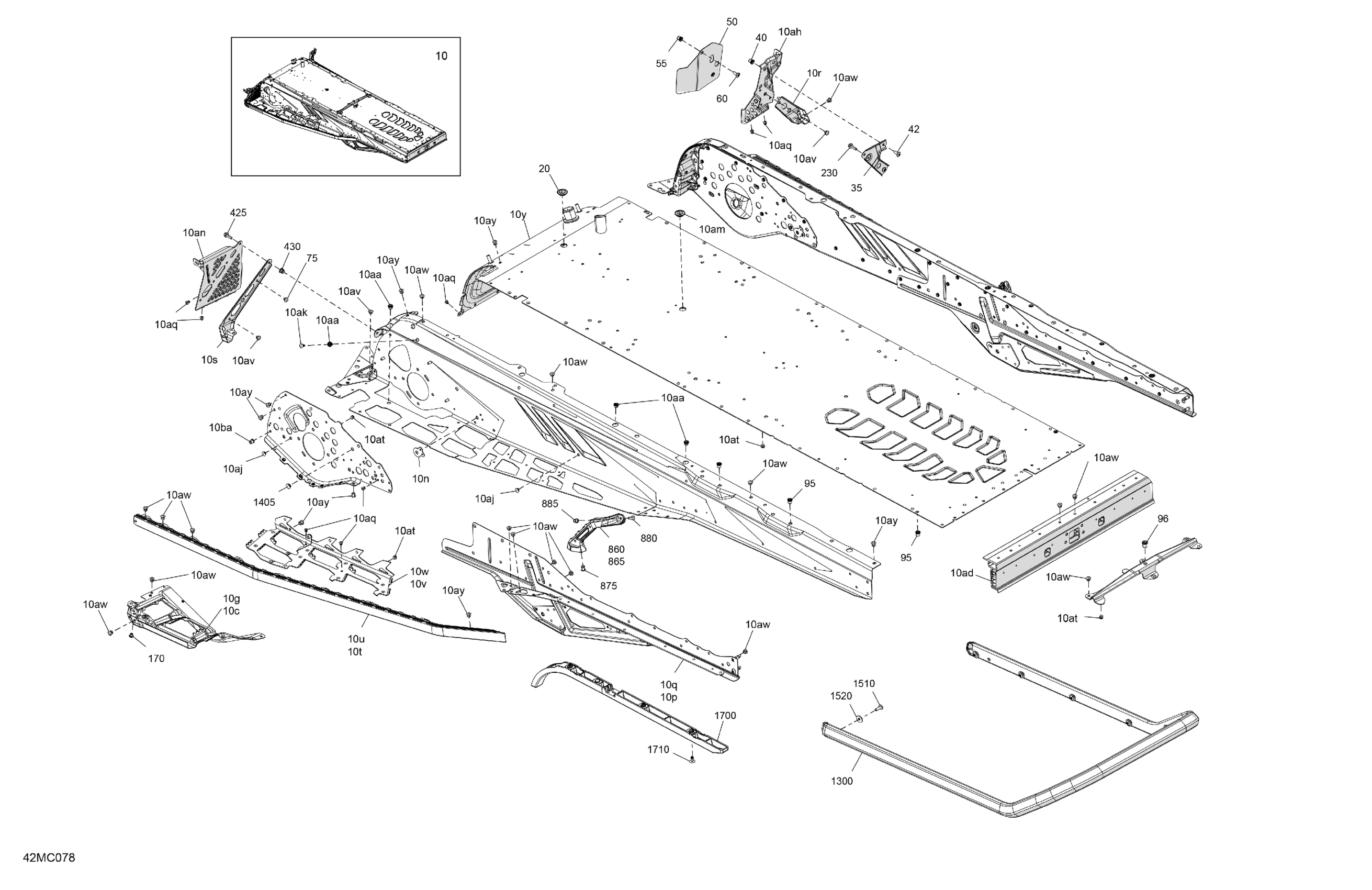

Ski-Doo EXPEDITION XTREME 900 ACE TURBO R - (APPB) - 2023 Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10a41

415130861

$3,299.97

10c

Deep Black, RH Footrest Reinforcement

518332803

$79.97

10g

Deep Black, LH Footrest Reinforcement

518332802

$16.89

10n

Front Suspension Arm Reinforcement

518335959

$3.85

10p

RH Rear Suspension Support

518333792

$102.28

10q

LH Rear Suspension Support

518333791

$102.28

10r

RH Footrest Reinforcement

518329789

$18.43

10s

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10t

RH Roller

518329648

$180.74

10u

LH Roller

518328452

$180.74

10v

RH Tunnel Liner

518329646

$33.05

10w

LH Tunnel Liner

518329647

$33.05

10y

Radiator Tunnel Ass'y 154

518332622

$693.05

10aa

Insert Half Hex Body M6 x 1.0

250100199

$2.54

10ad

Rear Cap

518332315

$66.89

10ah

RH Footrest

518331822

$23.05

10aj

Black, Dart 8 mm

293730047

$2.14

10ak

Dart

293730079

$1.92

10am

Black, Plug

293730052

$6.37

10an

LH Footrest

518332978

$40.74

10aq

Rivet Avibulb 3/16

293150203

$0.29

10at

Henrob Rivet

293150245

$1.65

10av

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10aw

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10ay

Ornit Rivet 6,5 X 14.5

293150266

$1.94

10ba

Collar Huck Magna-Grip 6.4

293150149

$0.37

20

Black, Plug

293730052

$6.37

35

RH Stirrup Reinforcement

518331727

$18.43

40

Insert

293450275

$9.89

42

Torx Head Screw M6 X 16

250000717

$1.74

50

Heat Shield

518331823

$7.42

55

Insert

293450275

$9.89

60

Torx Head Screw M6 X 16

250000717

$1.74

75

Rivet Ornit 6,5 X 10.5

293150264

$1.94

95

Insert

293450275

$9.89

96

Insert

293450275

$9.89

170

Insert M5 - 0.8

293450267

$4.22

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

860

Deep Black LH Rear Footrest Reinforcement

518330858

$16.89

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$16.89

875

Rivet Ornit 6,5 X 16.5

293150267

$1.94

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

885

Collar Huck Magna-Grip 6.4

293150149

$0.37

1300

Rear Bumper | Includes 1300 to 1300c

518331043

$109.20

1405

Black, Dart 10 mm

293730060

$4.42

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

1700

Front Protector

518329982

$17.66

1710

Pop Rivet 3/16”

293150108

$1.23
