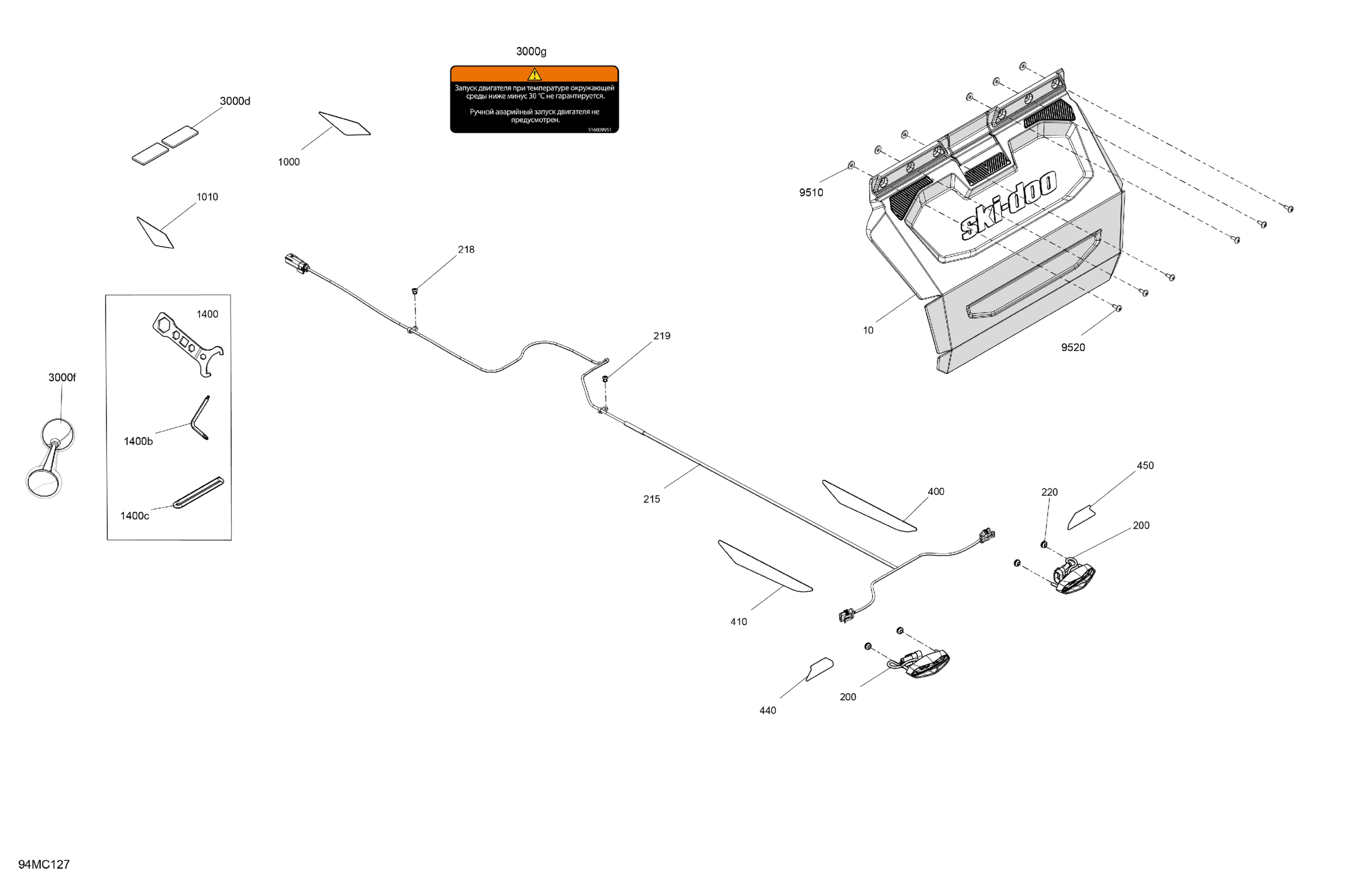

Ski-Doo EXPEDITION XTREME 850 E-TEC - (ADPD-ADPE) - 2023 Miscellaneous - Utilities Diagram

Description

Price

Snow Guard

520002056

$109.99

200

Tail Light

520002636

$103.82

215

Taillight Wiring Harness

515178634

$59.20

218

Pop Rivet 3/16"

390402200

$0.26

219

Pop Rivet 3/16"

390402200

$0.26

220

Grommet

293720101

$0.72

400

Red, RH Rear Reflector

520001900

$16.89

410

Red, LH Rear Reflector

520001901

$16.89

440

LH Rear Red Reflector

520001740

$4.65

450

RH Rear Red Reflector

520002016

$4.65

1000

RH Front Reflector

520002343

$7.95

1010

LH Front Reflector

520002344

$9.97

1400

Tool Kit | Includes 1400 to 1400c

520001814

$28.99

1400b

Key

520001815

$11.99

1400c

Rope Starter

529017500

$1.19

3000c

Red, Reflector

705015551

$8.26

3000d

Amber, Reflector

520002680

$19.20

3000f

Horn

549011291

$35.35

3000g

Warning Decal, Security

516009951

Unavailable

9510

Washer M5

250200025

$0.61

9520

Forming Screw M5 x 16

250000676

$0.83
