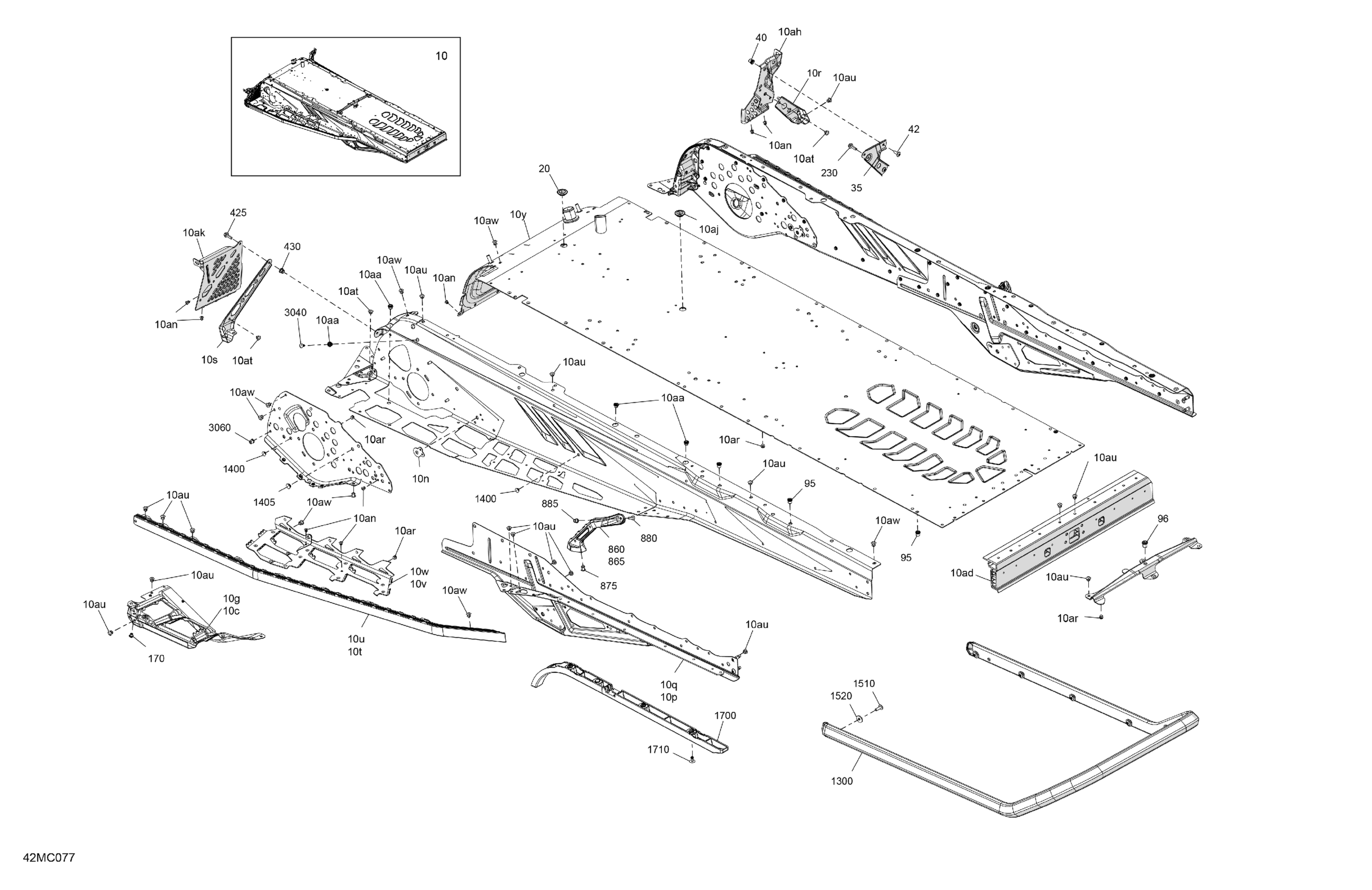

Ski-Doo 024 - EXPEDITION XTREME 850 E-TEC - (ADPB) - North America, 2023 06- Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10a41

415130861

$3.00

10c

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10g

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10n

Front Suspension Arm Reinforcement

518335959

$4.19

10p

RH Rear Suspension Support

518333792

$109.99

10q

LH Rear Suspension Support

518333791

$109.99

10r

RH Footrest Reinforcement

518329789

$19.99

10s

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10t

RH Roller

518329648

$194.99

10u

LH Roller

518328452

$194.99

10v

RH Tunnel Liner

518329646

$35.99

10w

LH Tunnel Liner

518329647

$35.99

10y

Radiator Tunnel Ass'y 154

518332622

$709.99

10aa

Insert Half Hex Body M6 x 1.0

250100199

$3.19

10ad

Rear Cap

518332315

$72.99

10ah

RH Footrest

518331822

$24.49

10aj

Black, Plug

293730052

$9.19

10ak

LH Footrest

518332978

$43.99

10an

Rivet Avibulb 3/16

293150203

$2.09

10ar

Henrob Rivet

293150245

$1.69

10at

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10au

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10aw

Ornit Rivet 6,5 X 14.5

293150266

$2.40

20

Black, Plug

293730052

$9.19

35

RH Stirrup Reinforcement

518331727

$19.99

40

Insert

293450275

$12.99

42

Torx Head Screw M6 X 16

250000717

$2.11

95

Insert

293450275

$12.99

96

Insert

293450275

$12.99

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

860

Deep Black LH Rear Footrest Reinforcement

518330858

$18.49

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$18.49

875

Rivet Ornit 6,5 X 16.5

293150267

$2.40

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

885

Collar Huck Magna-Grip 6.4

293150149

$0.48

1300

Rear Bumper | Includes 1300 to 1300c

518331043

$111.49

1400

Black, Dart 8 mm

293730047

$2.21

1405

Black, Dart 10 mm

293730060

$4.55

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09

3060

Collar Huck Magna-Grip 6.4

293150149

$0.48
