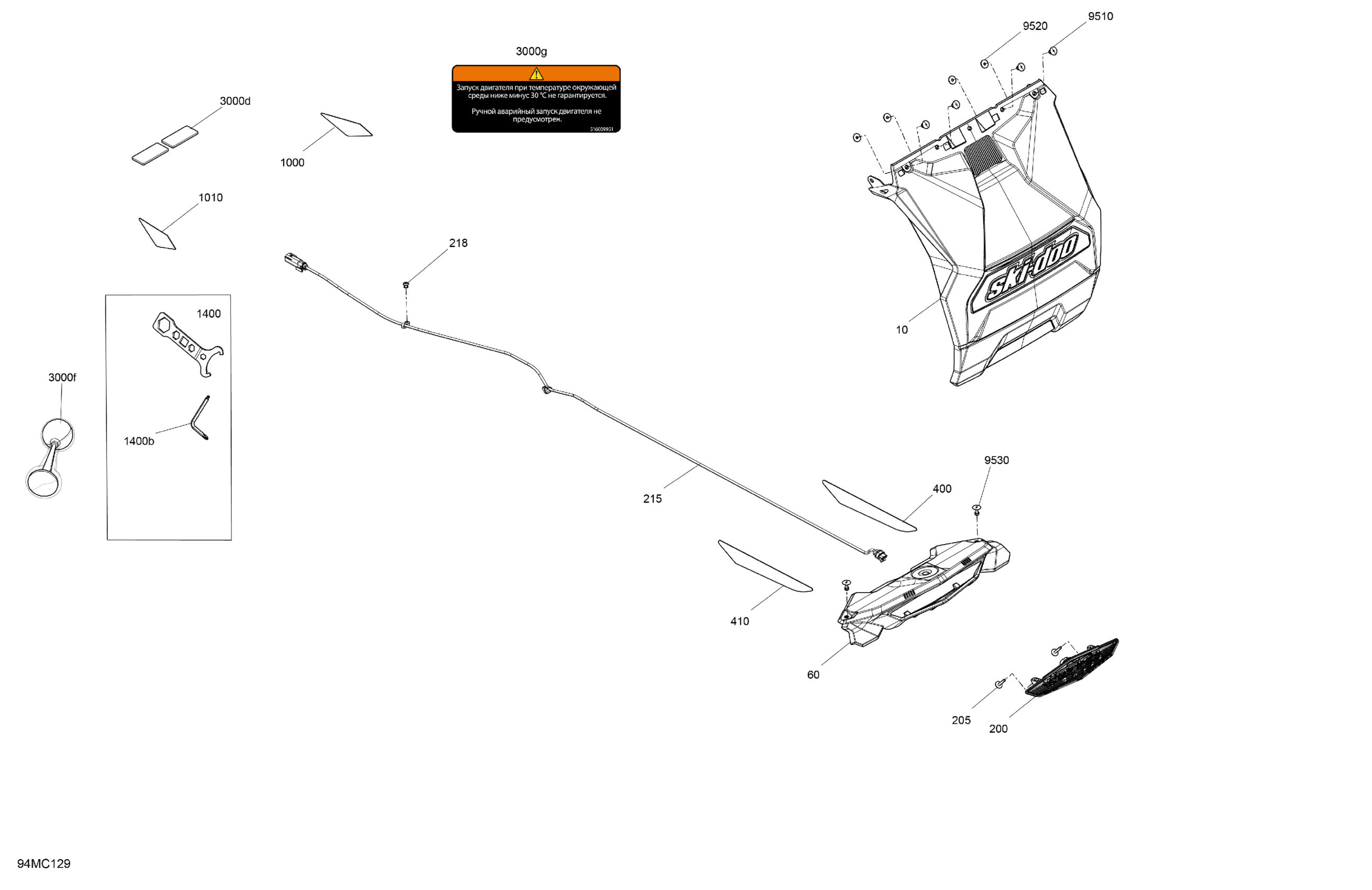

Ski-Doo 023 - RENEGADE 900 ACE TURBO R - XRS SMART-SHOX - (DBP1) - North America, 2023 09- Miscellaneous - Utilities Diagram

Description

Price

Snow Gard Ass'y

520001640

$126.99

Light Fairing

520001487

$20.99

200

Tail Light

520002710

$78.49

205

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

215

Rear Light Harness

515178265

$26.99

218

Pop Rivet 3/16"

390402200

$0.35

400

Red, RH Rear Reflector

520001900

$19.99

410

Red, LH Rear Reflector

520001901

$19.99

1000

RH Front Reflector

520002343

$9.19

1010

LH Front Reflector

520002344

$11.49

1400

Tool Kit | Includes 1400 to 1400b

520001767

$50.99

1400b

Key

520001815

$11.79

3000c

Red, Reflector

705015551

$9.59

3000d

Amber, Reflector

520002680

$20.99

3000f

Horn

549011291

$35.99

3000g

Warning Decal, Security

516009951

Unavailable

9510

Pop Rivet 3/16”

293150108

$1.19

9520

Washer

517124300

$0.19

9530

Pop Rivet 3/16"

293150100

$1.09
