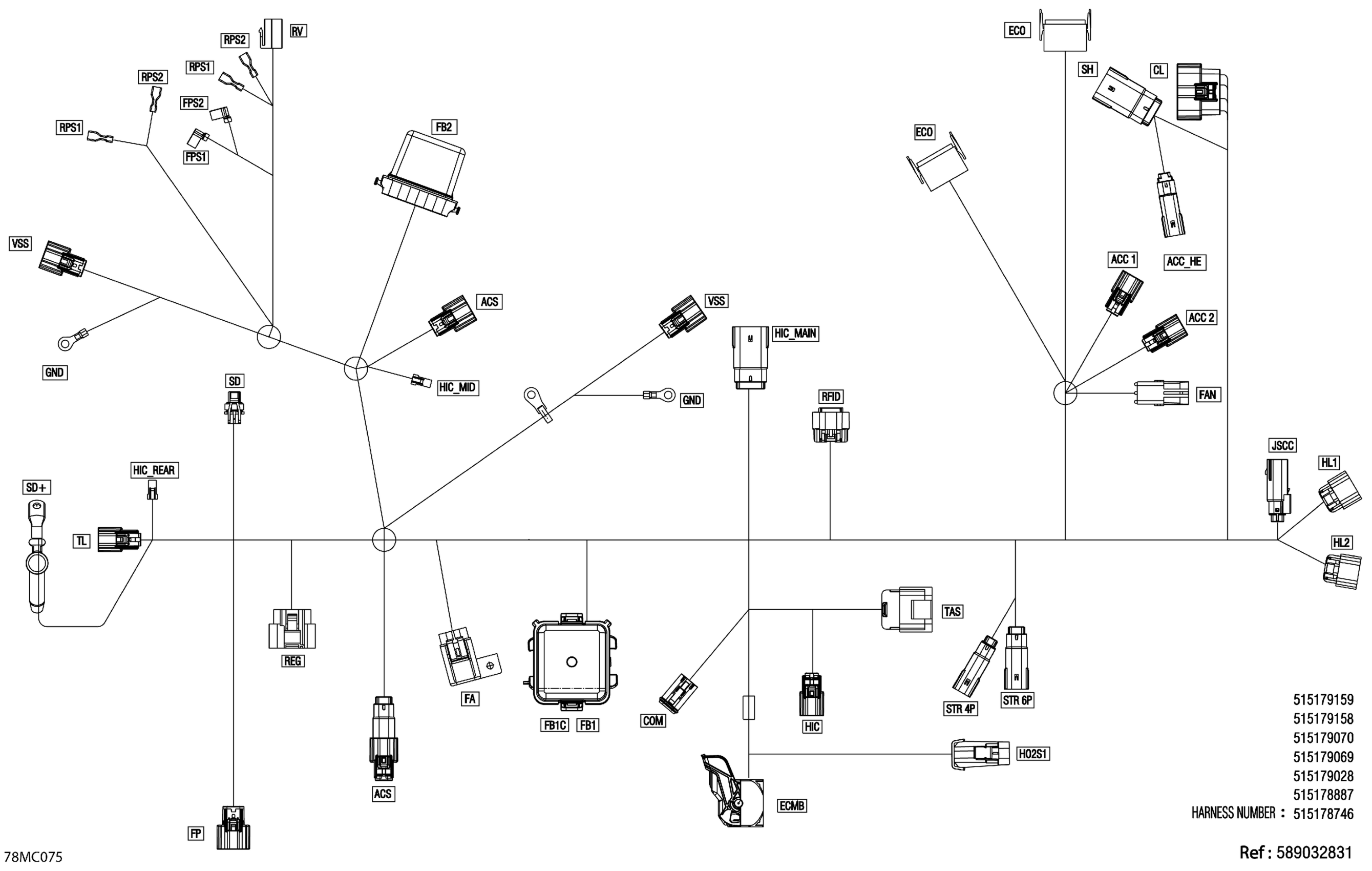

Ski-Doo RENEGADE 900 ACE TURBO R - XRS SMART-SHOX - (DBP1) - 2023 Electric - Main Harness - 515179028 Diagram

#

Description
Price

3000

Chassis Wiring Harness

515179028

$286.12

ACC HE

2 Circuits Male Housing

515178020

$23.82

ACC HE

Male Terminal

515178013

$2.55

ACC1

2 Circuits Female Housing

278002853

$16.89

ACC1

Female Terminal

515178014

$1.92

CL

Female Housing 20 Circuits

278002858

$20.12

CL

Sealing Cap

278002860

$1.42

CL

Female Terminal

515178018

$0.78

CL

Female Terminal

515178014

$1.92

COM

Female Housing 6 Circuits

710002706

$16.22

COM

Lock

710002705

$3.61

COM

Female Terminal

710005438

$4.00

COM

Female Terminal

710005439

$4.28

ECMB

Cover

515178601

$14.27

ECMB

Housing 56 Circuits

515178595

$24.02

ECMB

Plate

515178604

$3.63

ECMB

Plug

515178599

$2.60

ECMB

Plate

515178603

$3.63

ECMB

Terminal

515178596

$3.30

ECMB

Terminal

515178598

$3.21

ECMB

Terminal

515178597

$12.65

ECO

4 Circuits Female Housing

515178175

$11.14

ECO

Female Terminal

515178302

$5.11

F1

Little Fuse, 5 Amperes

710000742

$7.24

F2

Little Fuse, 15 Ampere

710000745

$6.77

F3

Little Fuse, 10 Amperes

710000744

$7.24

F4

Little Fuse, 10 Amperes

710000744

$7.24

F5

Little Fuse, 15 Ampere

710000745

$6.77

F7

Little Fuse, 10 Amperes

710000744

$7.24

F8

Little Fuse, 15 Ampere

710000745

$6.77

F9

Little Fuse, 15 Ampere

710000745

$6.77

F10

Little Fuse, 20 Amperes

710000746

$6.77

F11

Little Fuse, 30 Amperes

710000747

$6.77

FA

Fuse Holder Cap

278001326

$6.03

FA

Cushion

278000805

$3.22

FA

Fuse

710001613

$7.24

FA

Fuse Holder

278001325

$8.57

FA

Female Terminal

710000357

$6.03

FAN

Female Housing, 2 Circuits

278000217

$7.59

FAN

Wire Seal

278000218

$3.48

FAN

Male Terminal

409004300

$5.46

FB1

Fuse Puller

710000781

$8.29

FB1

Fuse Base Ass'y

278003448

$26.62

FB1

Fuse Box Support

515178219

$28.43

FB1

Seal Plug

278002880

$5.43

FB1

Wire Seal

278000218

$3.48

FB1

Wire Seal

278001065

$6.03

FB1

Female Terminal

710000890

$3.73

FB1

Female Terminal

710000918

$5.10

FB1

Female Terminal

278002578

$0.86

FB1C

Fuse Cover

515179053

$4.17

FB1C

Little Fuse, 10 Amperes

710000744

$7.24

FB1C

Little Fuse, 15 Ampere

710000745

$6.77

FB1C

Little Fuse, 20 Amperes

710000746

$6.77

FB2

Fuse Box Cover

278002286

$22.72

FB2

Fuses Decal

516010500

Unavailable

FB2

Fuse Box Ass'y

278002285

$23.37

FB2

Seal Plug

278002880

$5.43

FB2

Wire Seal

278000218

$3.48

FB2

Wire Seal

278001065

$6.03

FB2

Female Terminal

710000918

$5.10

FB2

Female Terminal

278002578

$0.86

FB2

Female Terminal

710000890

$3.73

FP

Female Housing

515178474

$33.05

FP

Female Terminal

515178018

$0.78

FPS1

Female Terminal

710004858

$3.85

FPS2

Female Terminal

710004858

$3.85

GND

Open Barrel Terminal

278001392

$4.12

HIC

Female Housing, 4 circuits

278003535

$25.35

HIC

Female Terminal

515178018

$0.78

HIC MAIN

Male Molex Connector 12 Cavities

515179155

$18.43

HIC MAIN

Male Terminal

515178013

$2.55

HIC MID

Female Connector

515177181

$18.43

HIC MID

Female Terminal

515177185

$8.35

HIC REAR

Connector JST Female 6 Cavities

515178749

$29.97

HIC REAR

Female Terminal

515177185

$8.35

HL1

Female Housing

515178006

$13.68

HL1

Seal Wire

710001332

$2.72

HL1

Terminal

710001228

$2.72

HL2

Female Housing

515178006

$13.68

HL2

Seal Wire

710001332

$2.72

HL2

Terminal

710001228

$2.72

HO2S1

Clip

710000992

$4.00

HO2S1

Housing

710002466

$2.98

HO2S1

Lock

515178661

$4.28

HO2S1

Seal

278001482

$2.55

HO2S1

Gold Terminal

710002597

$2.98

HO2S1

Terminal

710000736

$5.35

JSCC

Male Housing Connector 4 Pins

515178347

$13.58

JSCC

Male Terminal

515178013

$2.55

REG

Female Housing, 3 Circuits

710000879

$21.42

REG

Cap

710000882

$9.19

REG

Seal

710001932

$3.15

REG

Terminal

710001934

$4.51

RFID

Female Delphi Connector 5 Cavities

710007151

$13.62

RFID

Wire Seal

710001163

$5.10

RFID

Female Terminal

710001164

$5.92

RPS1

Female Terminal

710000082

$6.03

RPS2

Female Terminal

710000082

$6.03

RV

Female Terminal Housing

515176550

$6.43

RV

Female Terminal

515175282

$6.43

RY1

Relay

715900824

$16.22

RY2

Relay

715900824

$16.22

RY3

Relay

715900824

$16.22

RY4

Relay

715900824

$16.22

RY5

Relay, 30 AMP

515176774

$19.20

RY6

Relay, 30 AMP

515176774

$19.20

SD

Female Housing, 2 Circuits

515177192

$6.32

SD

Seal Wire

710001332

$2.72

SD

Terminal

710000925

$2.55

SD+

Terminal

515177214

$6.43

SH

Block 12

515178578

$11.52

SH

Male Terminal

515178013

$2.55

STR 4P

Male Housing Connector 4 Pins

515178347

$13.58

STR 4P

Male Terminal

515178013

$2.55

STR 6P

Housing 6 Circuits

278003866

$11.06

STR 6P

Male Terminal

515178013

$2.55

TAS

Clip

710000992

$4.00

TAS

Housing

710001231

$12.05

TAS

Seal

710001233

$2.55

TAS

Terminal

710001224

$3.02

TL

Female Housing Connector 4 Pins W/O CPA

515178346

$13.58

TL

Female Terminal

515178018

$0.78

TL

Female Terminal

515178014

$1.92

VSS

Housing

515178954

$35.35

VSS

Female Terminal

515178018

$0.78
