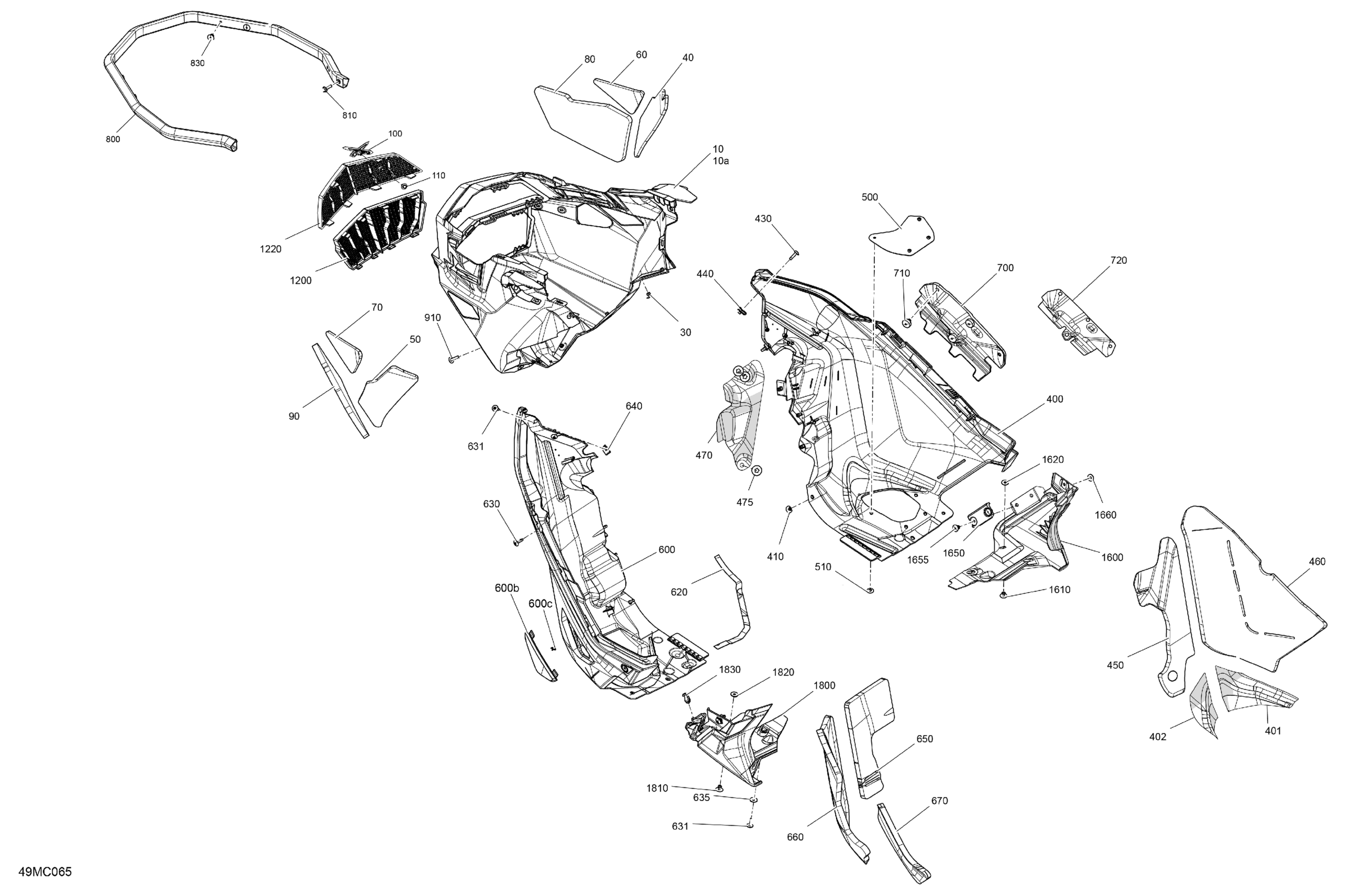

Ski-Doo 023 - RENEGADE 900 ACE TURBO R - XRS SMART-SHOX - (DBP1) - North America, 2023 07- Body - Bottom Pan Diagram

#

Description
Price

10

Front Bottom Pan | Includes 10 to 10a

502008461

$93.99

10a

Front Bottom Pan

502008638

$184.99

20

Skid Plate

502008466

$7.76

30

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

40

RH Upper Bottom Pan Foam

502007788

$18.99

50

LH Upper Bottom Pan Foam

502007789

$18.99

60

RH Bottom Pan Central Foam

502007545

$9.59

70

LH Bottom Pan Central Foam

502007546

$13.99

80

RH Lower Bottom Pan Foam

502007800

$20.99

90

LH Lower Bottom Pan Foam

502007799

$7.89

100

BRP Logo Emblem

705017644

$12.49

110

Plastite Screw M4 X 10

250000805

$2.11

400

RH Bottom Pan

502007737

$134.99

401

Heat Shield

502008536

$4.39

402

Heat Shield

502008537

$4.39

410

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

430

Torx Truss M5 X 20

250000586

$4.44

440

Panel Nut M5 X 0.8

250000958

$4.23

450

RH Front Bottom Pan Foam

502007831

$11.99

460

RH Rear Bottom Pan Foam

502008170

$16.49

470

Heat Shield

502007895

$19.99

475

Push Nut

508000853

$2.09

500

Plate

502007868

$2.19

510

Pop Rivet 3/16"

293150103

$0.55

600

LH Bottom Pan Ass'y | Includes 600 to 600c

502007739

$134.99

600b

Bottom Pan Door

502007676

$38.99

600c

Hairpin Cotter

269800431

$1.29

620

Gasket, Neoprene 2000Mm Long

219704476

$15.36

630

Torx Truss M5 X 20

250000586

$4.44

631

Torx Truss M5 X 20

250000586

$4.44

635

Washer M5

250200025

$0.74

640

Panel Nut M5 X 0.8

250000958

$4.23

650

LH Bottom Pan Upper Foam

502007549

$13.99

660

LH Front Bottom Pan Foam

502008334

$11.99

670

LH Rear Bottom Pan Foam

502008173

$2.29

700

Heat Shield

502008087

$7.09

710

Stopper

502008149

$1.99

720

Reflective Sheet

502008156

$4.79

800

Spartan Red, Front Bumper

502008431

$81.99

806

Horn Bracket

502008380

Unavailable

810

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.19

830

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

910

Torx Screw M6 X 25

250000758

$2.11

1200

Lower Prefilter Grille

502007979

$26.99

1220

Upper Prefilter Grille

502007980

$22.99

1600

RH Panel

502007714

$53.99

1610

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1620

Washer

517124300

$0.19

1650

Stopper

502007757

$4.69

1655

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1660

Washer

517124300

$0.19

1800

LH Panel

502007872

$56.99

1810

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

1820

Washer

517124300

$0.19

1830

Tuflok Plastic Rivet

293150230

$1.47
