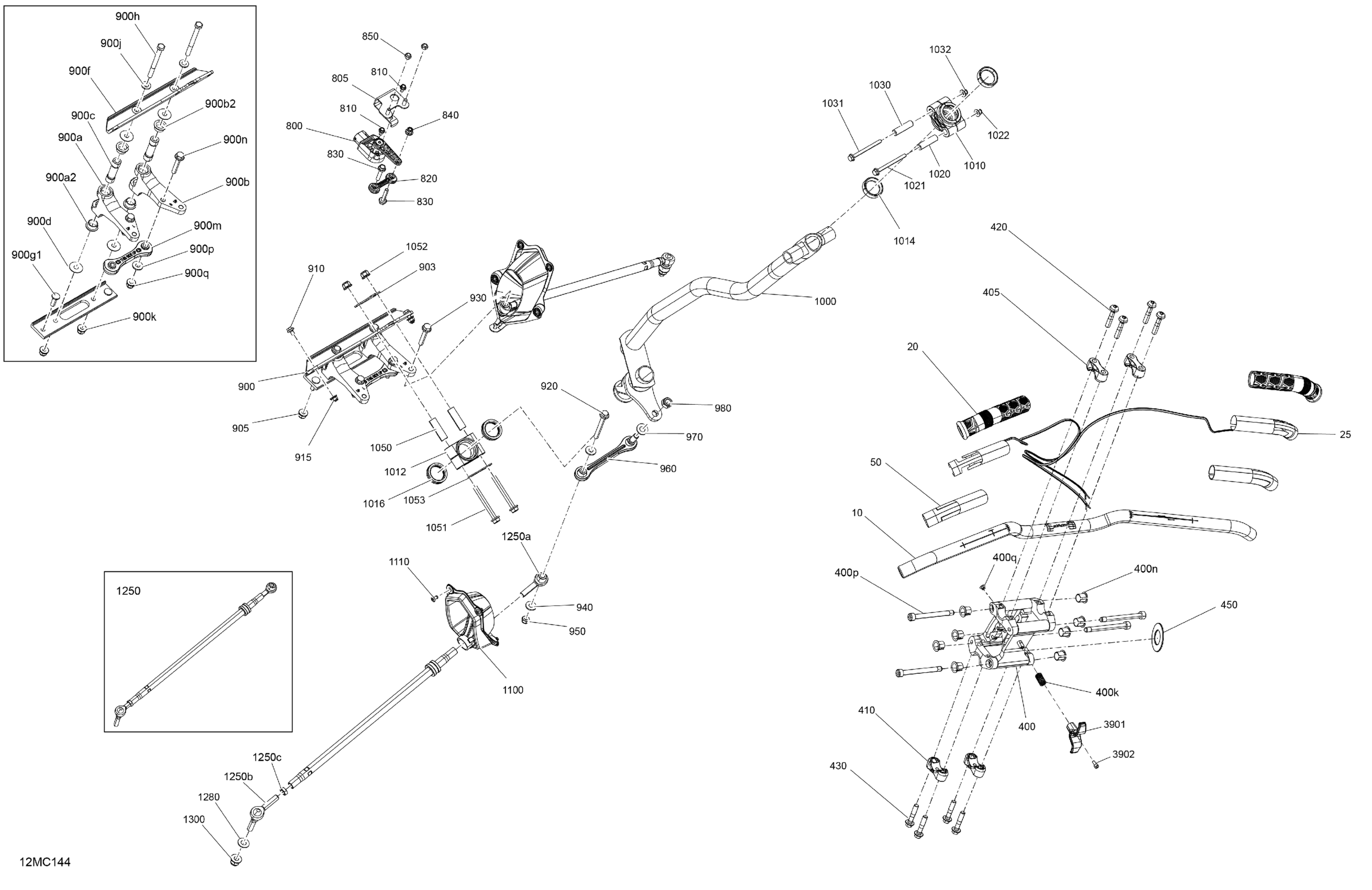

Ski-Doo 023 - RENEGADE 900 ACE TURBO R - XRS SMART-SHOX - (DBP1) - North America, 2023 03- Mechanic - Steering Diagram

Black, Handle Bar

506153209

$98.49

Grip 148mm

506152560

$16.88

Heated Film

506152856

$48.99

Thermal Insulation

506153176

$6.09

Riser Kit, Adjustable | Includes 400 to 400q

860201320

$148.99

Spring

506152820

$9.09

Cushion

506152520

$15.72

Socket Head Screw M8 X 85

205588554

$1.25

Pop Rivet 3/16"

390402200

$0.35

Steering Support

506152894

$14.49

Steering Support

506152894

$14.49

Button Head Torx Screw M8 X 38

250000904

$2.11

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

Washer

506152992

$1.35

Suspension Sensor

710004740

$159.99

Central Sensor Support

506153200

$43.99

Hex. Flange Screw M5 X 10

207551044

$4.12

Ball Joint

505074754

$19.49

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.44

Hex. Flange Elastic Nut M6

233261466

$2.00

Elastic Stop Nut M6

232561434

$1.99

Steering Linkages Ass'y | Includes 900 to 900q

506153196

$229.99

LH Swivel Arm Ass. | Includes 900a to 900a2

506153197

$42.99

Bushing

503194671

$7.13

RH Swivel Arm | Includes 900b to 900b2

506152790

$42.99

Bushing

503194671

$7.13

Swivel Pivot

506152792

$28.99

Washer

503191800

$2.11

Steering Support

506153198

$12.99

Clinch Stud

250300038

$4.29

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

Washer

503192494

$3.17

Elastic Flange Nut M8

233281466

$1.01

Ball Joint

506152755

$51.99

Hex. Flange Screw M6 X 45

250001028

$1.26

Washer

506151245

$0.93

Elastic Flange Nut M8

233281466

$1.01

Steering Stopper

506153157

$5.99

Hex. Elastic Flange Nut M8

233281416

$1.48

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Hex. Flange Screw M8 X 70

207687044

$7.41

Hex. Flange Screw M8 X 50

207685044

$1.69

Washer

506151245

$0.93

Hex. Elastic Flange Nut M8

233281416

$1.48

Ball Joint

506152753

$54.99

Washer

506152582

$4.55

Elastic Stop Nut M10

232500416

$1.90

Tube Main

506152969

$264.99

Upper Half Housing

506152219

$1.79

Lower Half Housing

506153048

$6.92

Upper Vibration Ring

506152292

$0.74

Lower Vibration Ring

506152518

$4.79

Housing Bushing

506153249

$12.99

Hex. Flange Screw M6 x 75

250001114

$4.44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Housing Bushing

506153249

$12.99

Hex. Flange Screw M6 x 75

250001114

$4.44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Housing Bushing

506153248

$12.99

Hex. Flange Screw M8 X 70

207687044

$7.41

Hex. Elastic Flange Nut M8

233281416

$1.48

Stopper Plate

506152938

$12.99

Cap

506153294

$26.99

Pop Rivet 3/16"

293150008

$0.50

Rod Ass'y | Includes 1250 to 1250c

506153056

$80.49

LH Threaded Ball Joint

506152344

$41.49

RH Threaded Ball Joint

506152684

$44.49

RH Threaded Hex. Jam Nut M10

732610010

$0.74

Washer

506152582

$4.55

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

Handle

506152821

$3.17

Socket Head Screw M4X 10

205041060

$2.11
