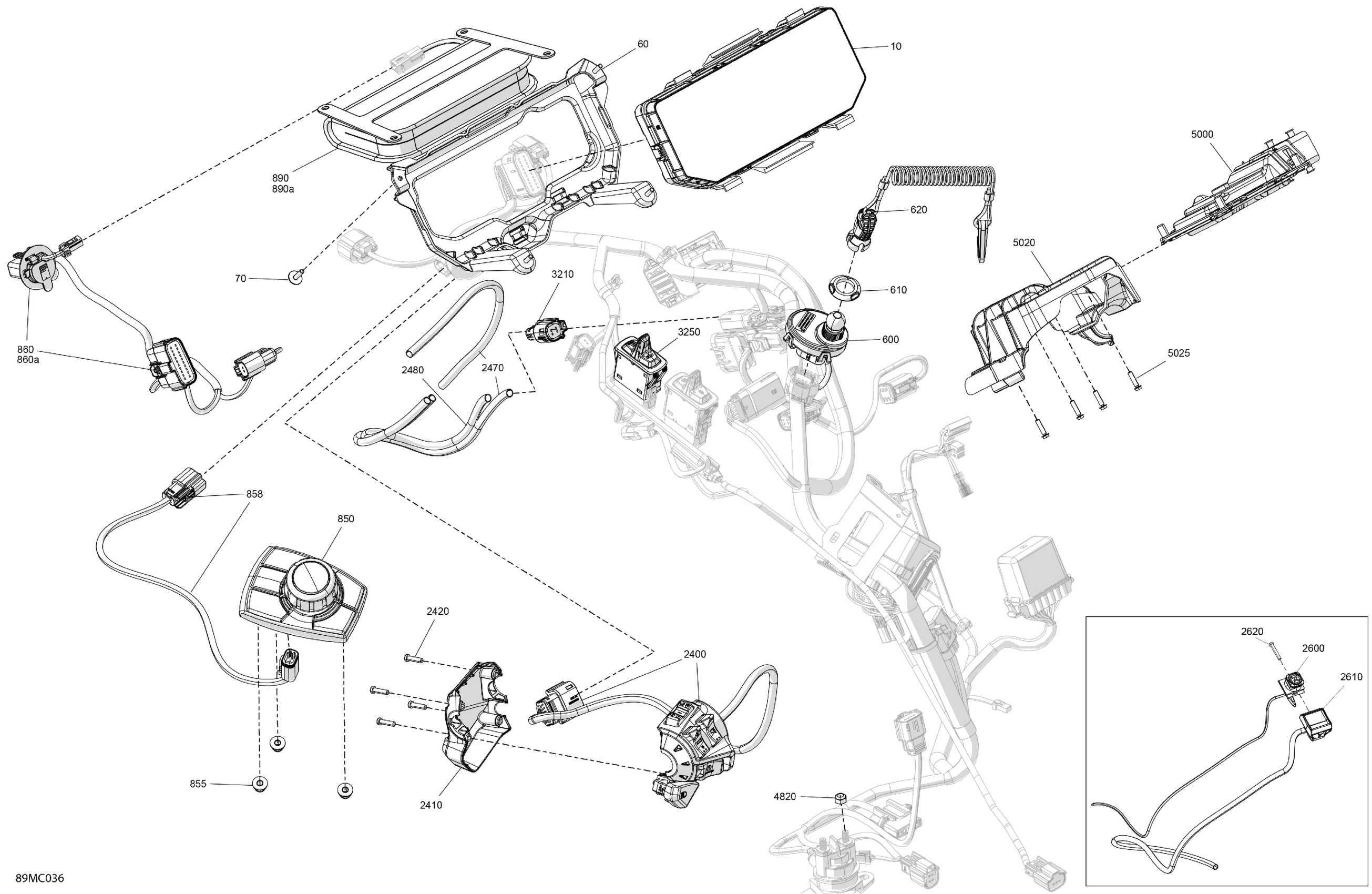

Ski-Doo EXPEDITION SE 900 ACE TURBO R - 2023 Electric - Upper Section Diagram

Description

Price

Multifunction Gauge Full Size Mono

515178227

$559.99

Full Size Color Multifunction Gauge

515179262

$1.00

Gauge Support

515178965

$6.69

Screw M4 X 16

250000725

$3.49

600

Ignition Switch

710006855

$81.49

610

Safety Nut (DESS Switch)

278002963

$3.28

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$84.99

850

Switch

515178325

$509.99

855

Elastic Flange Nut M6 X 1.0

233261416

$2.11

858

Adaptor Wiring Harness

515178958

$26.99

860

USB Wiring Harness | Includes 860 to 860a

515178758

$93.99

860a

USB Connector

710006405

$41.49

890

Protective Bag | Includes 890 to 890a

515179153

$119.99

890a

Push Nut

732610072

$2.19

2400

LH Switch Housing

515178196

$284.99

2400

LH Switch Housing

515178851

$284.99

2410

Housing Plate

515177147

$20.99

2420

Torx Screw

250000671

$1.01

2470

Braided Sleeve

415130141

$55.99

2480

Braided Sleeve

415130141

$55.99

2600

Emergency Stop Switch

515177931

$76.49

2610

Emergency Stop Switch Support

515177310

$9.19

2620

Torx Screw #8-18

250000263

$1.04

3210

4 Circuits Female Housing

515178177

$12.18

3250

Rocket Switch

515178501

$20.49

4820

Elastic Stop Nut M6

232561434

$1.99

5000

Vehicle Control Unit

420464172

$629.99

5020

Module Support

512061397

$16.33

5025

Hex. Flange Screw K40 X 16

241141660

$1.48
