Description

Price

10

Black, Handle Bar

506153209

$98.49

10

Orange Crush, Handlebar

506153220

$121.99

20

Grip 148mm

506152560

$16.88

25

Heated Film

506152856

$48.99

50

Thermal Insulation

506153176

$6.09

400

Riser Kit, Adjustable | Includes 400 to 400q

860201320

$148.99

400k

Spring

506152820

$9.09

400n

Cushion

506152520

$15.72

400p

Socket Head Screw M8 X 85

205588554

$1.25

400q

Pop Rivet 3/16"

390402200

$0.35

405

LH Handle Bar Support

506152867

$16.49

406

RH Handle Bar Support

506152928

$15.99

410

Steering Support

506152894

$14.49

420

Button Head Torx Screw M8 X 38

250000904

$2.11

430

Hex. Flange Screw M8 X 1.25 x 40

250000852

$2.11

450

Washer

506152992

$1.35

520

Moulding Strap Ass'y

506153133

$50.99

540

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

900

Support Plate | Includes 900 to 900a

506152787

$37.99

900a

Clinch Stud

250300038

$4.29

905

Hex. Elastic Flange Nut M8

233281416

$1.48

1000

Main Tube

506153014

$209.99

1010

Upper Half Housing

506152219

$1.79

1012

Lower Half Housing

506153048

$6.92

1014

Upper Vibration Ring

506152292

$0.74

1016

Lower Vibration Ring

506152518

$4.79

1020

Housing Bushing

506152297

$12.99

1021

Hex. Flange Screw M6 x 75

250001114

$4.44

1022

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1030

Housing Bushing

506152297

$12.99

1031

Hex. Flange Screw M6 x 75

250001114

$4.44

1032

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1050

Housing Bushing

506152937

$12.99

1051

Hex. Flange Screw M8 X 70

207687044

$7.41

1052

Hex. Elastic Flange Nut M8

233281416

$1.48

1053

Stopper Plate

506152938

$12.99

1100

Cap

506153294

$26.99

1110

Pop Rivet 3/16"

293150008

$0.50

1220

Hex. Screw M8 X 40

207084044

$1.15

1230

Hex. Elastic Flange Nut M8

233281416

$1.48

1250

Rod Ass'y | Includes 1250 to 1250c

506153056

$80.49

1250a

LH Threaded Ball Joint

506152344

$41.49

1250b

RH Threaded Ball Joint

506152684

$44.49

1250c

RH Threaded Hex. Jam Nut M10

732610010

$0.74

1280

Washer

506152582

$4.55

1300

Hex. Flange Elastic M10 x 1.5

233201464

$7.51

3901

Handle

506152821

$3.17

3902

Socket Head Screw M4X 10

205041060

$2.11

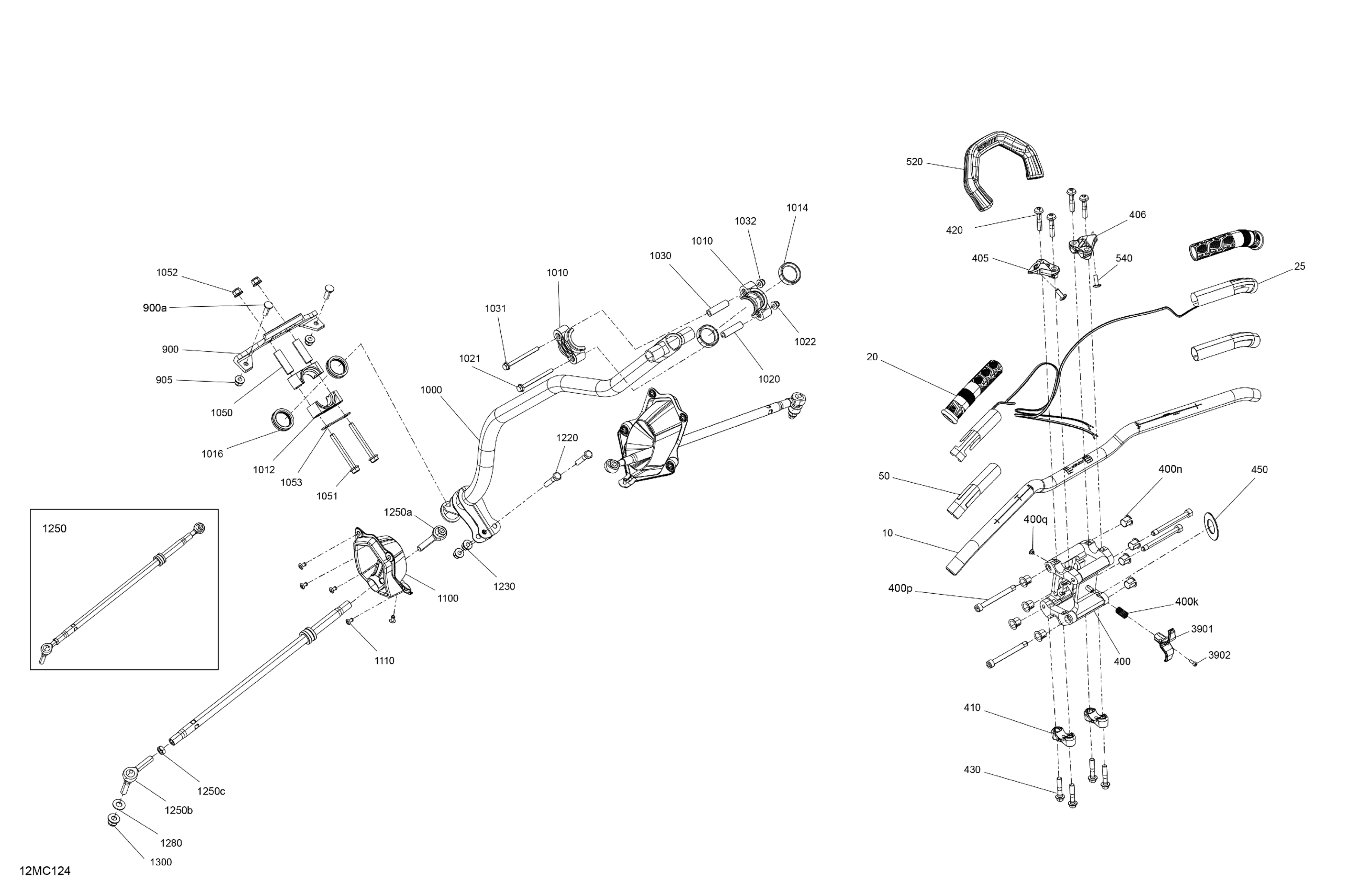

Ski-Doo 022 - EXPEDITION SE 900 ACE TURBO R - North America, 2023 03- Mechanic - Steering Diagram

Black, Handle Bar

Orange Crush, Handlebar

Grip 148mm

Heated Film

Thermal Insulation

Riser Kit, Adjustable | Includes 400 to 400q

Spring

Cushion

Socket Head Screw M8 X 85

Pop Rivet 3/16"

LH Handle Bar Support

RH Handle Bar Support

Steering Support

Button Head Torx Screw M8 X 38

Hex. Flange Screw M8 X 1.25 x 40

Washer

Moulding Strap Ass'y

Torx Screw M6 X 1.0 X 18, Scotch Grip

Support Plate | Includes 900 to 900a

Clinch Stud

Hex. Elastic Flange Nut M8

Main Tube

Upper Half Housing

Lower Half Housing

Upper Vibration Ring

Lower Vibration Ring

Housing Bushing

Hex. Flange Screw M6 x 75

Elastic Flange Nut M6 X 1.0

Housing Bushing

Hex. Flange Screw M6 x 75

Elastic Flange Nut M6 X 1.0

Housing Bushing

Hex. Flange Screw M8 X 70

Hex. Elastic Flange Nut M8

Stopper Plate

Cap

Pop Rivet 3/16"

Hex. Screw M8 X 40

Hex. Elastic Flange Nut M8

Rod Ass'y | Includes 1250 to 1250c

LH Threaded Ball Joint

RH Threaded Ball Joint

RH Threaded Hex. Jam Nut M10

Washer

Hex. Flange Elastic M10 x 1.5

Handle

Socket Head Screw M4X 10
